Subsequent Work

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Fit right holder for primary catalytic converter on the crankcase. -9-  → Tightening torque: 23 Nm (17 ft lbs.)

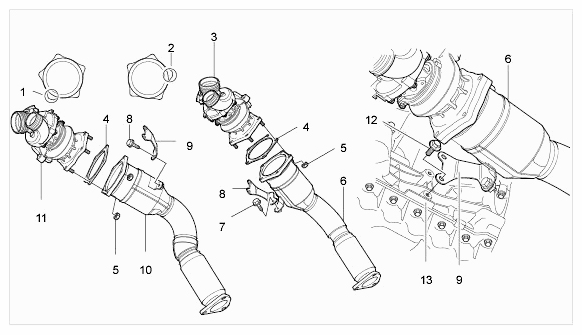

    Fig 1: Exploded View Of Catalytic Converter Holder - Turbo Engine
    G09408917Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Install primary catalytic converter on the right-hand side (cylinder bank 1 to 4). → Installing Primary Catalytic Converter
  3. Fit engine compartment cover. → Installing Front Trim (Engine Compartment)
