Preliminary Work

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove right engine compartment cover. → Removing Front Trim (Engine Compartment)
  2. Remove primary catalytic converter on the right-hand side (cylinder bank 1 to 4). → Removing Primary Catalytic Converter
  3. Remove right holder for primary catalytic converter at the crankcase. -9-

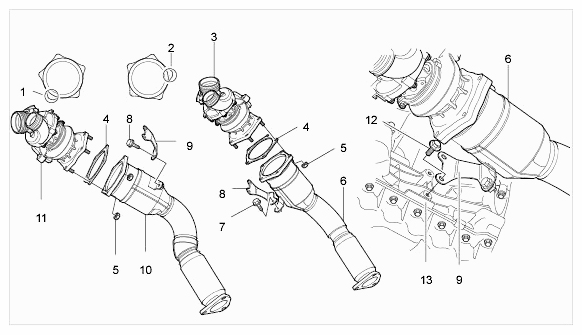

    Fig 1: Exploded View Of Catalytic Converter Holder - Turbo Engine
    G09408914Courtesy of PORSCHE CARS NORTH AMERICA, INC.
