Preliminary Work
WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
- Open the bonnet.

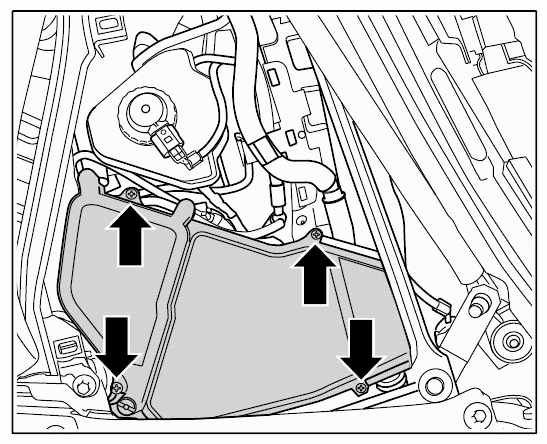

- Open lid of central electrics box. To do this, loosen the 4 fastening screws. -arrows-
WARNING: Live components
- Risk of electric shock
→ Remove electric charge from component.
→ Make sure it does not switch on again.
→ Check that there is no electric charge
→ Cover adjacent live parts.
NOTE: Unburnt injected fuel gets into the exhaust system- Risk of damage to components that affect the exhaust system
→ Prevent the fuel from injecting by removing the fuse.
Information
Remove the fuse for the ignition rod modules. Disconnect electric connections for the ignition rod modules.
- Pull out the fuses for the ignition rod modules and the injection system .
- Remove spark plugs. → Removing Spark Plugs
