Removing Spark Plugs

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Broken spark plug electrodes

Bits of electrodes can fall into the combustion chamber

→ Only check electrode gap of spark plugs, but do not bend them.

→ Spark plugs with an incorrect electrode gap must be replaced.

Information

Use only spark plugs approved by Porsche AG!

Check electrode gap before screwing in a new spark plug.

Remove spark plug using special tool spark plug wrench 3122 B. →Fig 1

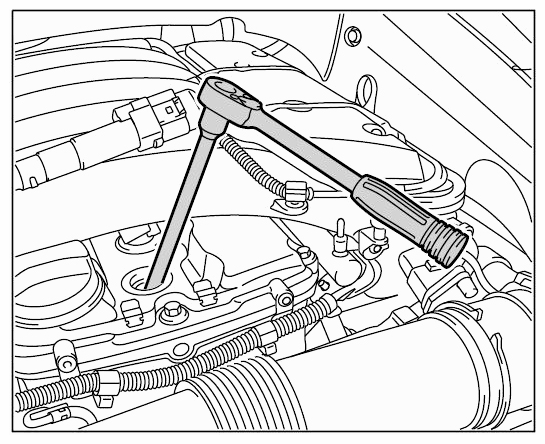

Fig 1: Loosening Spark Plugs Using Spark Plug Wrench
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Check electrode gap. → Nominal value: 0.9 mm → Maximum value: 1.1 mm

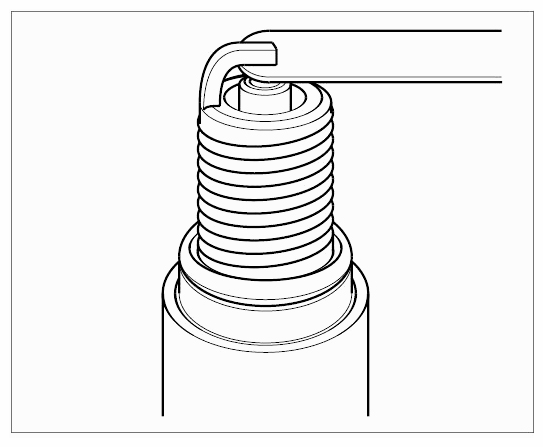

Fig 2: Checking Electrode Gap Of Spark Plug In V6 Engine
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
