Reading Out Fault Memory

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

The Porsche System Tester is connected to the vehicle via a 16-pin diagnosis socket. The diagnostic socket is located inside the vehicle below the dashboard near to the driver (left-hand drive vehicles) or the passenger (right-hand drive vehicles) -arrow-  .

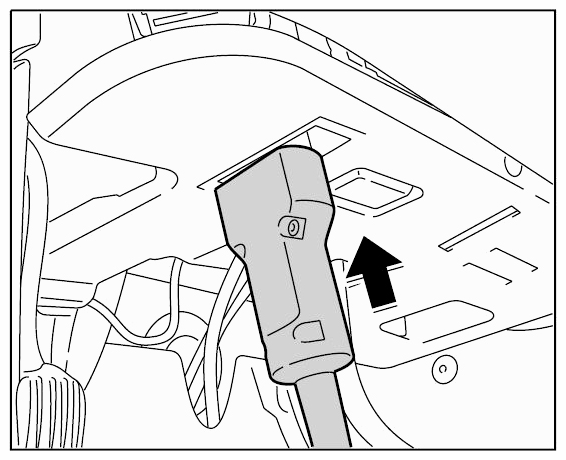

Fig 1: Connecting Diagnostic Socket
G09408246Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Start Porsche System Tester (PST) and follow the instructions on the Tester.
  2. Select vehicle type with [>>] and perform the automatic control unit search.
  3. If a [#] star appears in front of the relevant control unit, read out the fault memory. Follow the instructions of the PST.
  4. → RESETTING MAINTENANCE INTERVAL
