Assembling Rear Door Sub-Frame
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
Information
- Some of the repair illustrations show only one side of the vehicle.
- Naturally, some steps also have to be performed on the opposite side of the vehicle as well.
Information
On vehicles with optional electric sunblind:

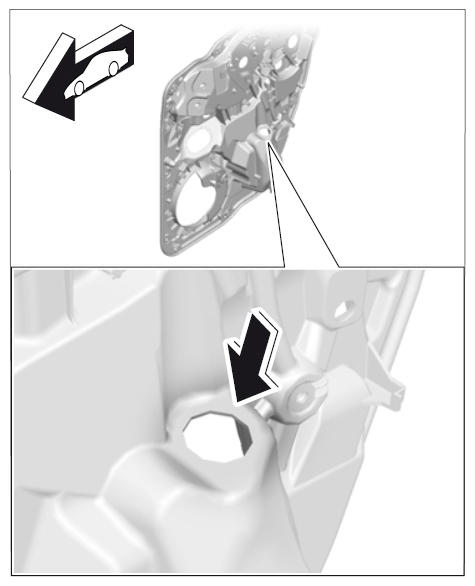

Drill a hole in the center of the notch in the new door sub-frame using a small drill bit.
Then using an antenna drill bit, carefully drill out the hole -arrow- until it measures → Diameter: 29 mm+/-0.4 mm .
- Install control unit for rear door. → Installing Rear Door Control Unit
- Install rear power window motor. → INSTALLING REAR POWER WINDOW MOTOR
- Install woofer in rear door. → INSTALLING REAR LOUDSPEAKERS
- Install wire harness for rear door sub-frame. → INSTALLING WIRE HARNESS FOR DOOR
