Installing Rear Door Control Unit

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Engage control unit for front door in the door sub-frame and clip it in.

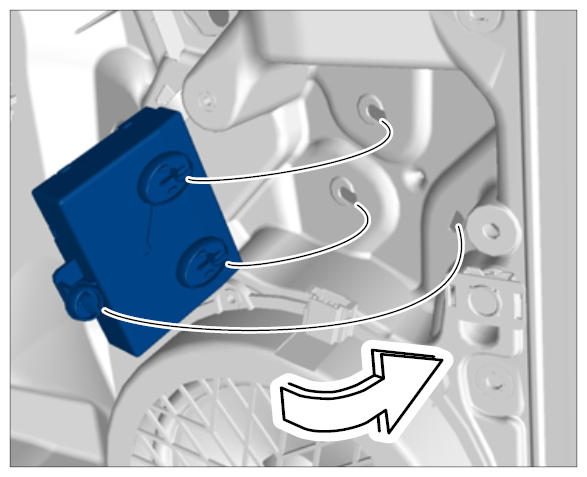

    Fig 1: Installing Door Control Unit
    G09939659Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Insert the electrical plug connection -1-  (-A-  ) until the connector engages securely.
  3. Plug in electrical plug connection -2-  (-B-  ) and lock it -a-  .

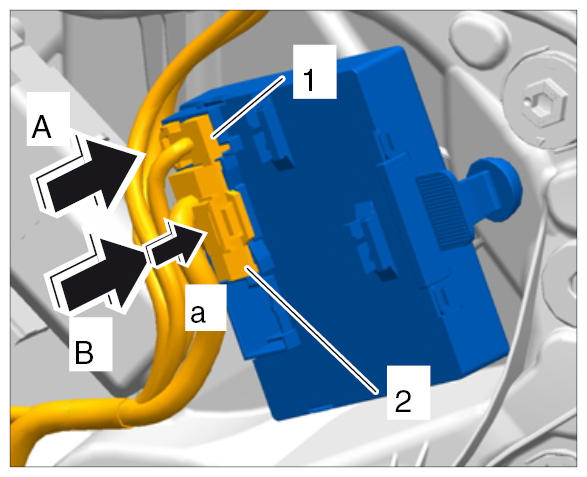

    4. Fig 2: Connecting Plug Connections
    G09939660Courtesy of PORSCHE CARS NORTH AMERICA, INC.
