Removing Door Opener

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

The number of fastening screws, fixing clips, plug connections, holders and trim panels can vary depending on equipment.
The illustrations for removing and installing the drive mechanism are shown only on one equipment variant and may differ from the actual equipment variant.
Some steps must be carried out automatically.
Some of the repair illustrations show only one side of the vehicle.

Swivel insulating mat for door panel aside.
Turn holder with door opener light anti-clockwise as far as it will go -A- and remove it from the door handle -B- .

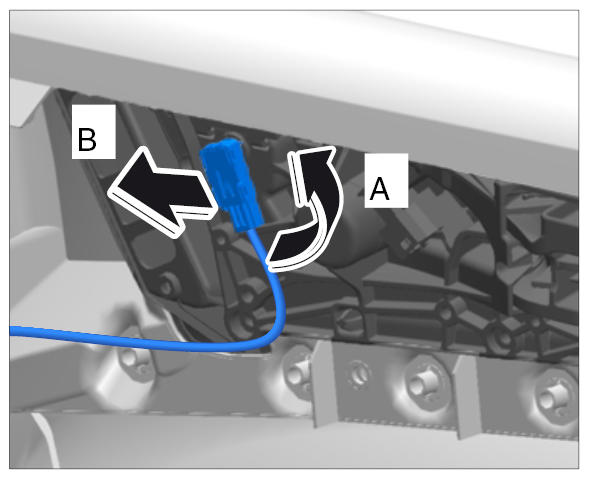

Fig 1: Removing Door Opener Light
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove cover on door opener. → REMOVING SWITCH FOR MEMORY SEAT ADJUSTMENT
Unscrew and remove five fastening screws -1- on the door opener.
Remove door opener -C- .

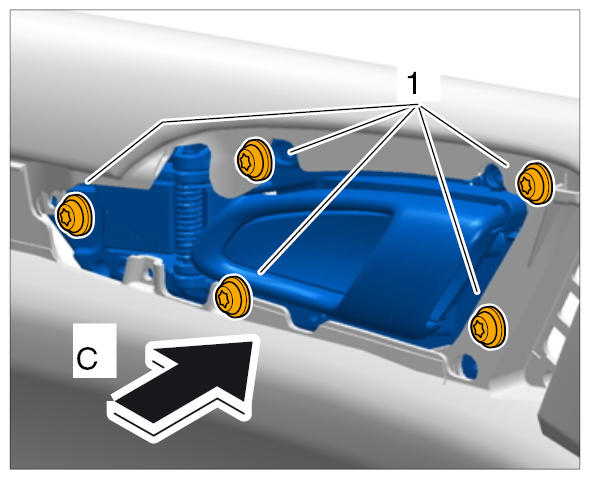

Fig 2: Identifying Fastening Screw On Door Opener

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
