Removing Switch For Memory Seat Adjustment

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

Some of the repair illustrations show only one side of the vehicle .
Naturally, some steps also have to be performed on the opposite side of the vehicle as well .
These must be carried out as a mirror image of the steps shown for the front and rear .

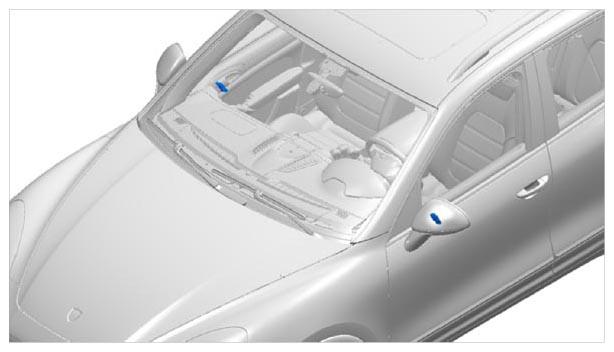

Fig 1: Identifying Installation Position Of Switch For Memory Seat Adjustment
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

NOTE: Voltage peaks

Risk of damage to electrical load or to the control unit

Pull off electric plug connection for switch for memory seat adjustment.

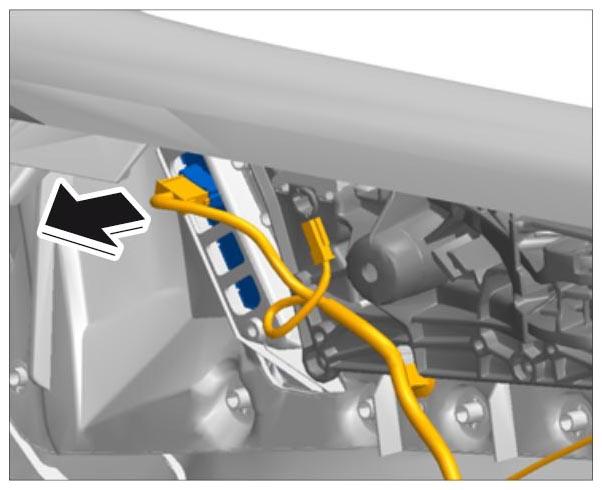

Fig 2: Pulling Off Electric Plug Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrew five fastening screws -1- on cover for door opener from the inside of the door panel.

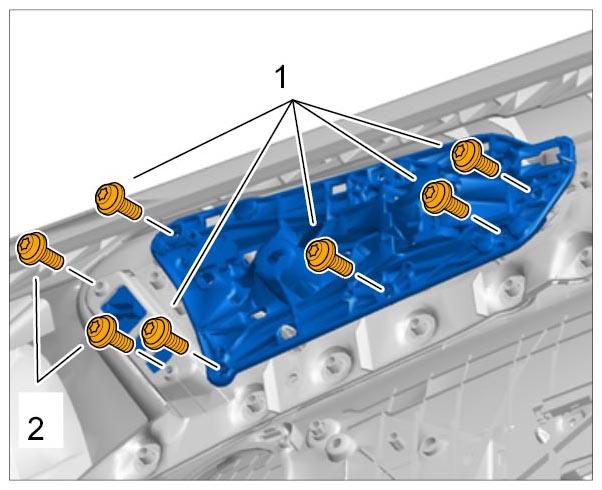

Fig 3: Identifying Fastening Screws On Cover For Door Opener
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrew two fastening screws -2- on switch for memory seat adjustment.
Slide cover for door opener with switch up slightly -A- , pull it out of the bracket and then remove it by pulling it forward -B- .

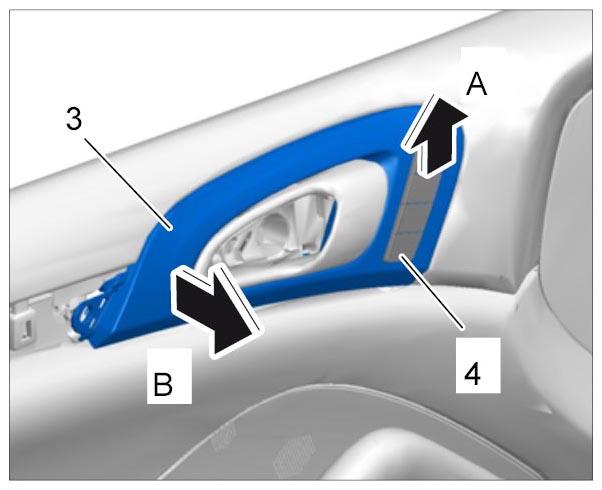

Fig 4: Removing Cover For Door Opener
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove switch for memory seat adjustment -4- from cover for door opener -3- by pulling it inwards.

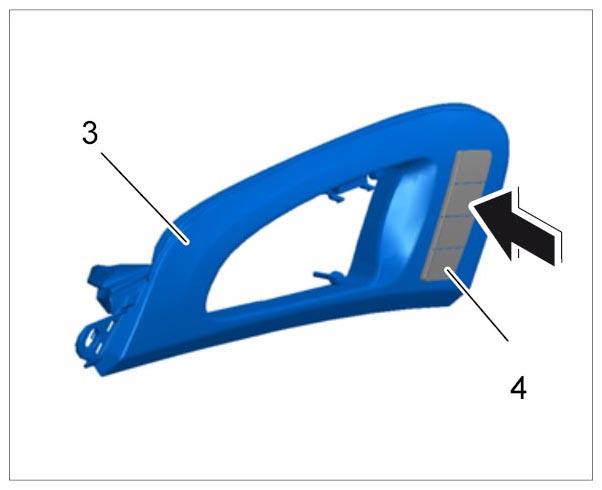

Fig 5: Locating Seat Adjustment Switch
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
