Preliminary Work

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

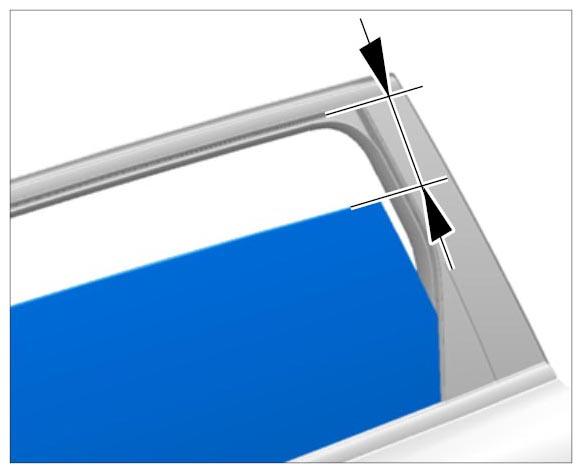

Guide rear door window Adjustment value 205 mm +/-2 mm  down from the upper edge of the door.

Fig 1: Identifying Rear Door Window Dimension
G09940077Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Remove rear door panel. → REMOVING REAR DOOR PANEL
