Removing Rear Door Panel

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

Some of the repair illustrations show only one side of the vehicle .
Naturally, some steps also have to be performed on the opposite side of the vehicle as well .

Pull door opener and unclip the cover on the door opener -1- using a plastic wedge.

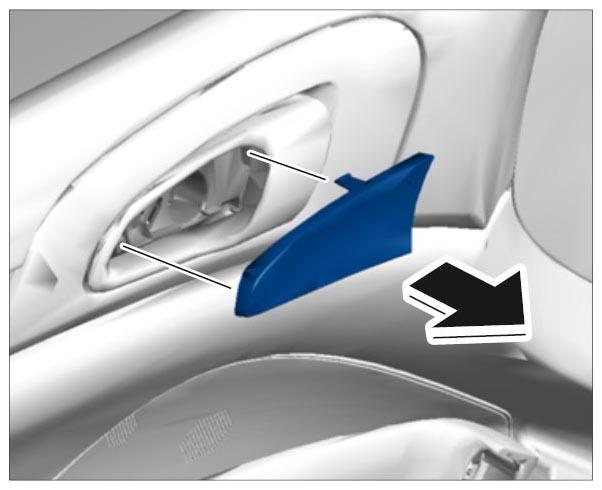

Fig 1: Unclipping Cover For Door Opener
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrew and remove fastening screws -2 and 3- from the door panel.

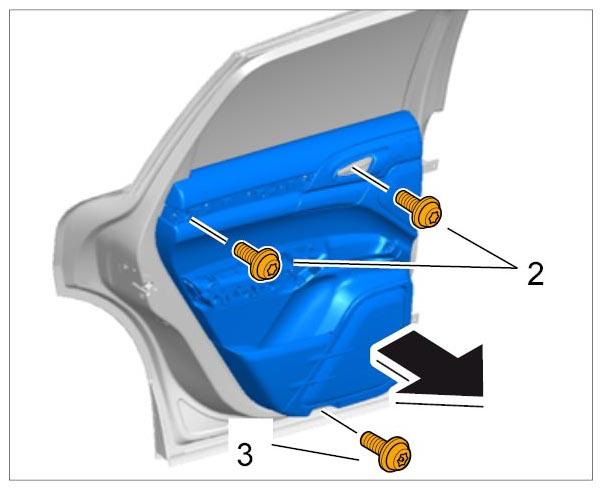

Fig 2: Releasing Door Panel
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unclip the door panel all the way around and swivel the bottom outwards.
On vehicles with sun blind .
The push rod for the sun blind cannot be disassembled .
1. 4.1. Open the sun blind flap and pull sun blind with push rod up fully.
2. 4.2. Pull door panel with the sun blind open up out of the sealing channel and guide.
Swivel trim panel inwards, release electric plug connection -a- and disconnect it from the door control unit.

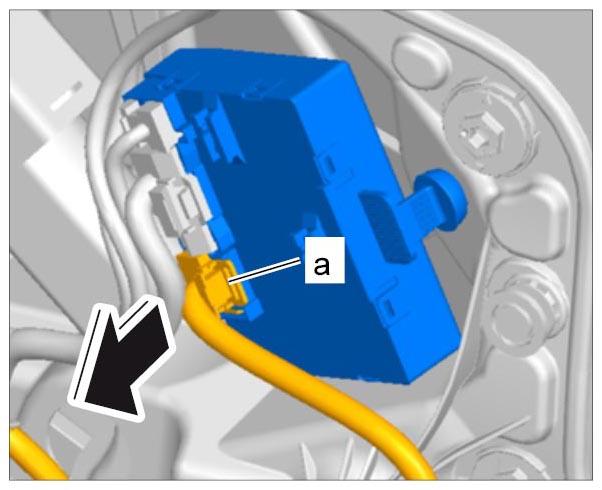

Fig 3: Disconnecting Electric Plug Connection For Door Control Unit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Disconnect electric plug connection for tweeter in the rear door.

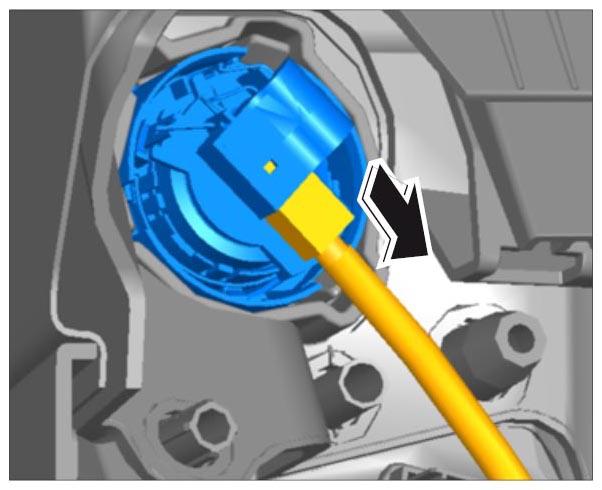

Fig 4: Disconnecting Electric Plug Connection For Tweeter
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Disengage cable for door opener.

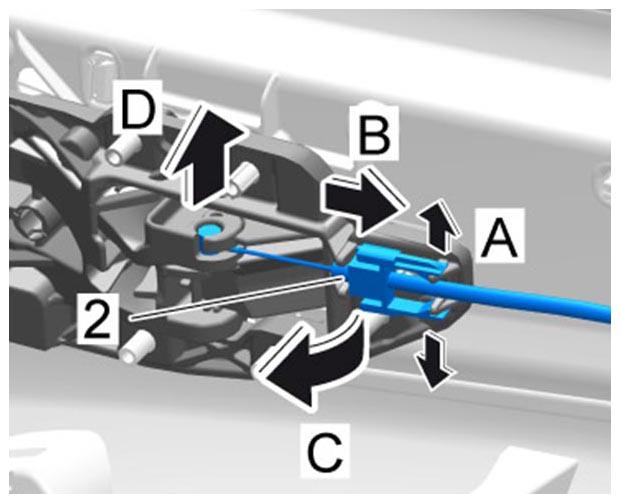

Fig 5: Removing Cable For Door Opener
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 7.1. Spread locking lugs outwards -A- .
2. 7.2. Remove cable by pulling it to the rear out of the guide -2- (-B- ).
3. 7.3. Swivel cable in direction of arrow -C- until the driver at the front is free.
4. 7.4. Remove the driver from the door opener -D- .
Remove door panel.
