Removing Side Member Reinforcement

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Remove outer side member. → Removing Outer Side Member
Remove A-pillar reinforcement. → Removing A-Pillar Reinforcement 513855 REPLACING A-PILLAR REINFORCEMENT
Remove outer B-pillar reinforcement. → Installing B-Pillar Reinforcement 514255 REPLACING B-PILLAR REINFORCEMENT
Heat up connection areas with a hot-air gun and remove sealing element.

Fig 1: Side Member Reinforcement Component Location
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Loosen welded joints.

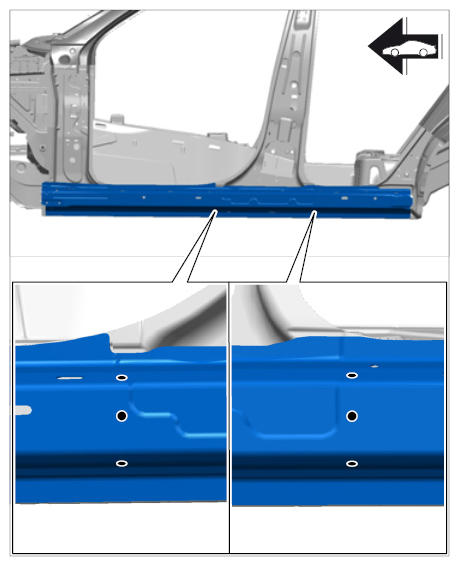

Fig 2: Identifying Welded Joints On Side Member Reinforcement
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 5.1. Grind down spotwelds.
2. 5.2. Grind down laser-welded seams.
Loosen welded joints.

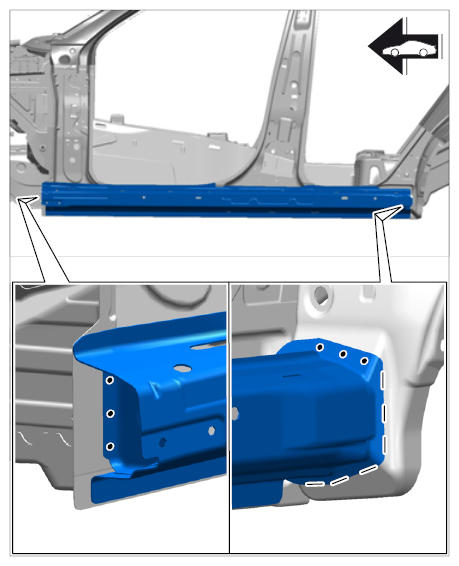

Fig 3: Identifying Welded Joints On Side Member Reinforcement
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 6.1. Grind down spotwelds.
2. 6.2. Grind down MIG seam.
Grind down the spotwelds.

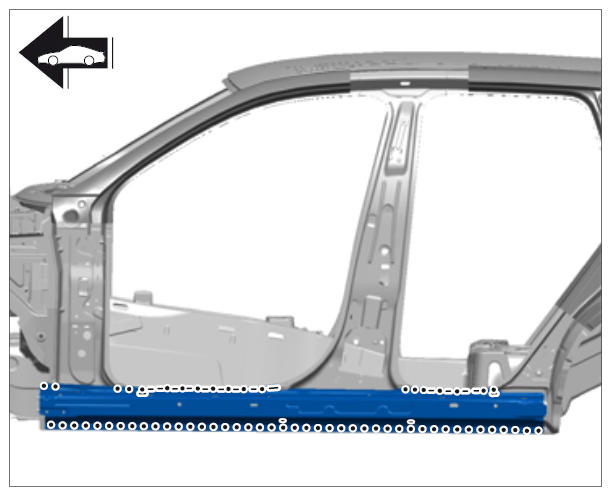

Fig 4: Removing Spotwelds On Side Member Reinforcement
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Heat up connection areas using a hot-air gun.

Fig 5: Identifying Side Member Reinforcement
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove lower side member reinforcement.
