Removing A-Pillar Reinforcement

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove A-pillar. → 511255 REPLACING A-PILLAR
  2. Loosen welded joints.
    1. 2.1. Grind down spotwelds.
    2. 2.2. Grind down MIG seams.

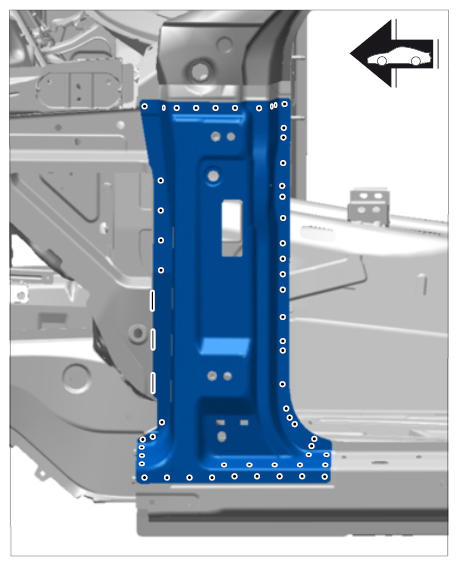

      3. Fig 1: A-Pillar Reinforcement Component Location
      G09938498Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Grind down MIG seams.

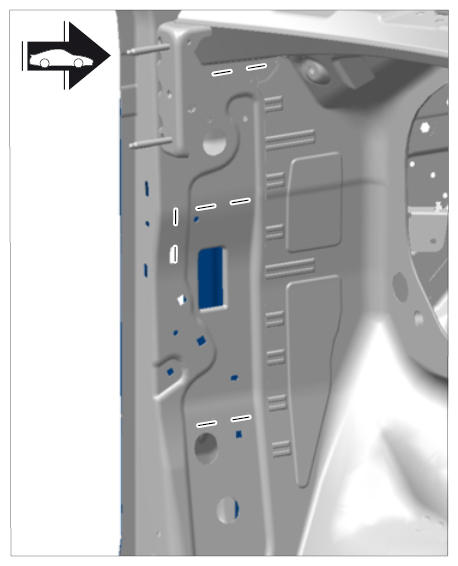

    Fig 2: Identifying A-Pillar Reinforcement
    G09938499Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Heat up connection areas using a hot-air gun.
    Fig 3: Removing A-Pillar Reinforcement
    G09938500Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  5. Remove A-pillar reinforcement.
