Installing Side Member Reinforcement

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Apply adhesive.

Fig 1: Applying Adhesive On Side Member Reinforcement
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 1.1. Evenly apply adhesive to the marked areas.
  Working with body structural adhesive → 5X00IN WORKING WITH BODY STRUCTURAL ADHESIVE
Fit and secure side member reinforcement.
Resistance spot-weld side member reinforcement.

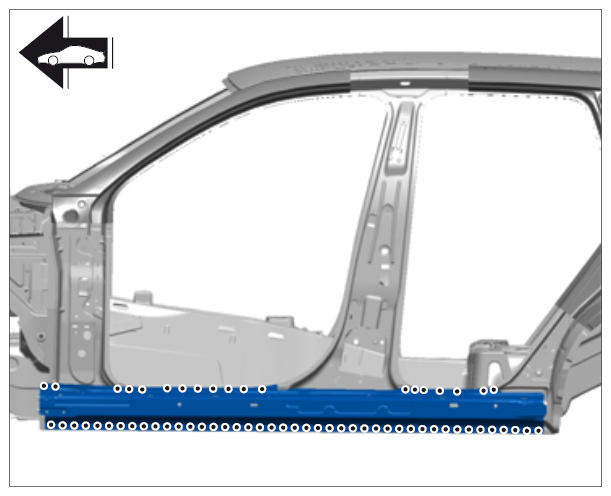

Fig 2: Identifying Resistance Spot-Weld Side Member Reinforcement
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Weld in side member reinforcement.

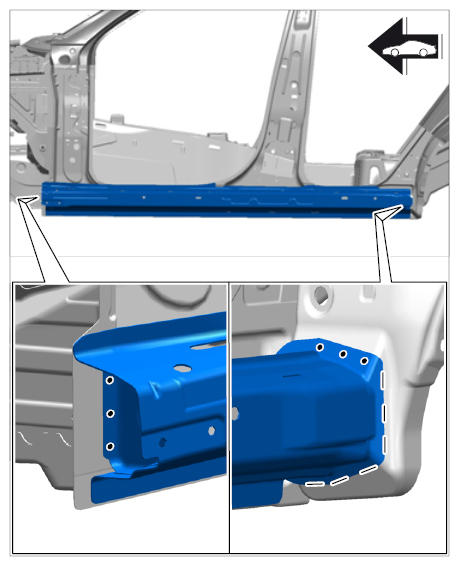

Fig 3: Identifying Weld In Side Member Reinforcement
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 4.1. Resistance spot-weld side member reinforcement.
2. 4.2. Spot-weld side member reinforcement using inert gas.
Plug-weld side member reinforcement using inert gas.

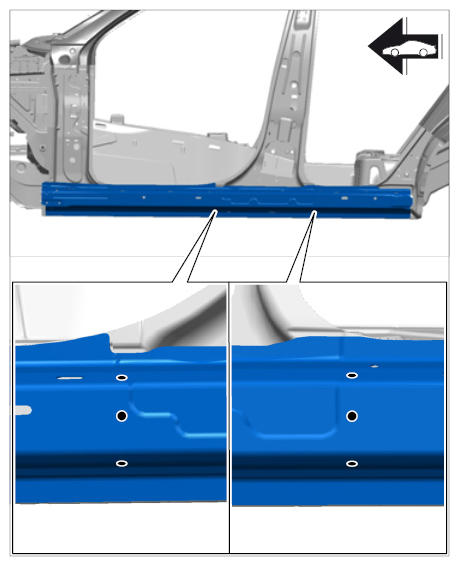

Fig 4: Identifying Plug-Weld Side Member Reinforcement
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install outer B-pillar reinforcement. → Installing B-Pillar Reinforcement 514255 REPLACING B-PILLAR REINFORCEMENT
Install A-pillar reinforcement. → Installing A-Pillar Reinforcement 513855 REPLACING A-PILLAR REINFORCEMENT
Install outer side member. → Installing Outer Side Member 514555 REPLACING OUTER SIDE MEMBER
