Installing A-Pillar Reinforcement

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Apply adhesive.

Fig 1: Applying Adhesive On A-Pillar Reinforcement
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 1.1. Evenly apply adhesive to the marked areas.
  Working with body structural adhesive → 5X00IN WORKING WITH BODY STRUCTURAL ADHESIVE
Fit and secure A-pillar reinforcement.
Observe gap dimensions. → 5X00IN DIAGRAM - BODY GAP DIMENSIONS
Weld in A-pillar reinforcement.

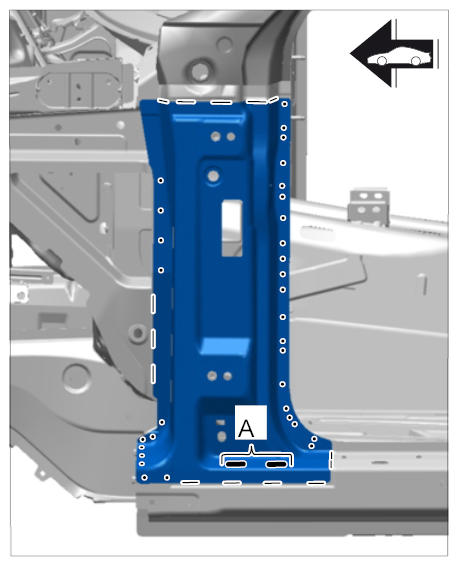

Fig 2: Identifying Weld In A-Pillar Reinforcement
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 3.1. Resistance spot-weld A-pillar reinforcement.
  Information

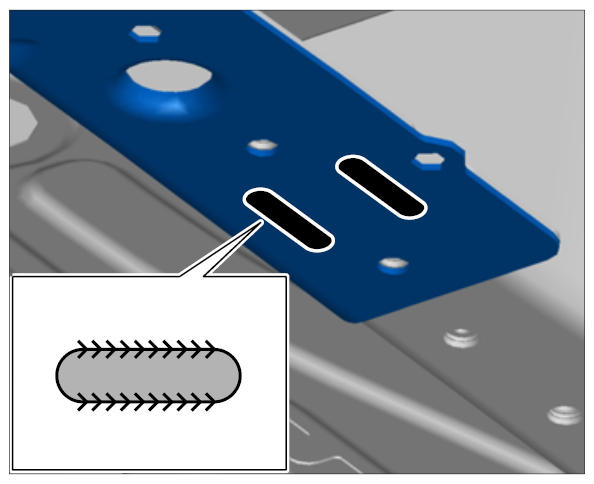

  When welding slots, make sure that both edges of the slot are welded through.

  Fig 3: Identifying Resistance Spot-Weld A-Pillar Reinforcement
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 3.2. Slot-weld A-pillar reinforcement in the area -A- using inert gas.
3. 3.3. Spot-weld A-pillar reinforcement using inert gas.
Install A-pillar. → Installing A-Pillar
