Removing Outer B-Pillar Reinforcement

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Remove B-pillar. → Removing B-Pillar
Grind down the spotwelds.

Fig 1: Outer B-Pillar Reinforcement Component Location
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Loosen welded joints.

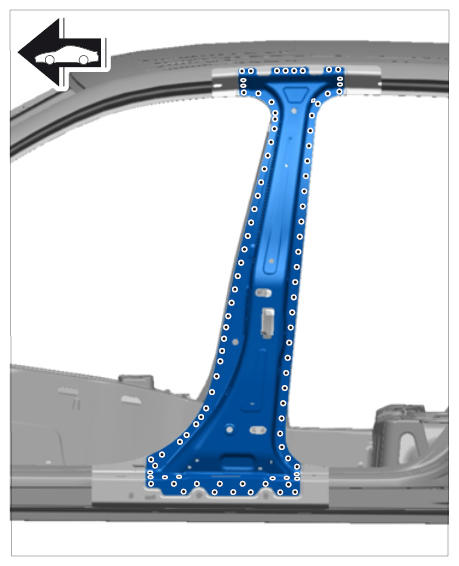

Fig 2: Identifying Outer B-Pillar Reinforcement
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 3.1. Grind down laser-welded seams.
2. 3.2. Grind down MIG seam in the area -A- .
Heat up connection areas using a hot-air gun.

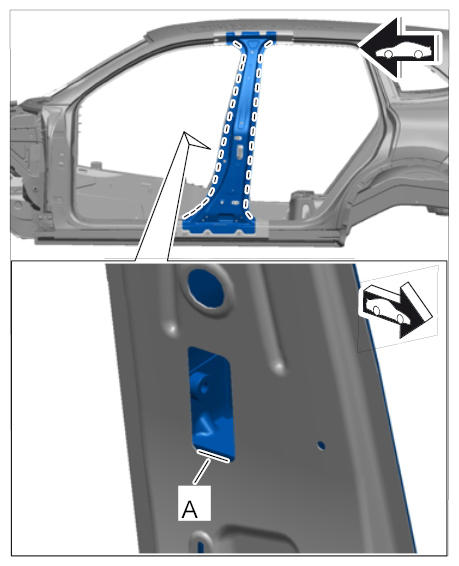

Fig 3: Removing Outer B-Pillar Reinforcement
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove outer B-pillar reinforcement.
Heat up connection areas with a hot-air gun and remove sealing element.

Fig 4: Identifying Outer B-Pillar Reinforcement
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
