Removing B-Pillar

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

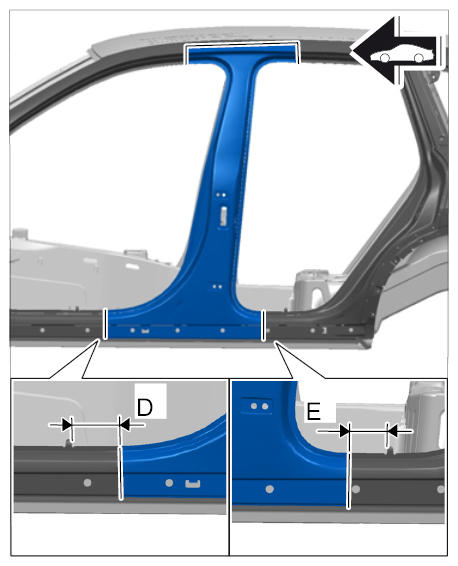

Mark cuts A, B, D and E in accordance with the new part. Make sure to leave an overlap of approx. 3 cm with respect to the body.

Information

Only make cuts in the top plate. Make sure not to damage the plate underneath when doing this.

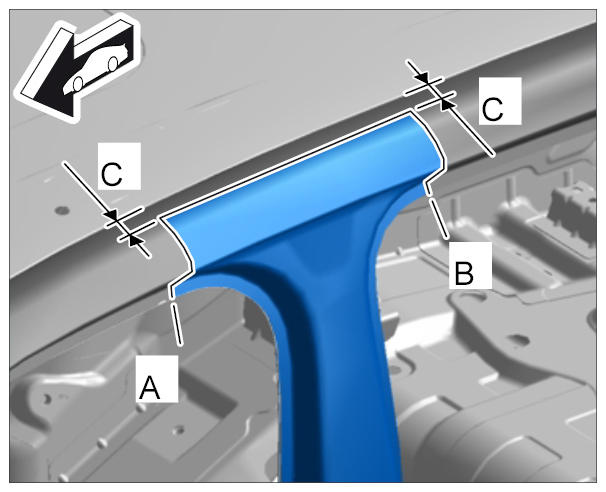

Mark and make cuts.
→ Distance to edge of roof: 30 mm

Fig 1: B-pillar Component Location
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fig 2: Identifying B-Pillar
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Grind down laser-welded seams.

Fig 3: Identifying Grind Down Laser-Welded Seams
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

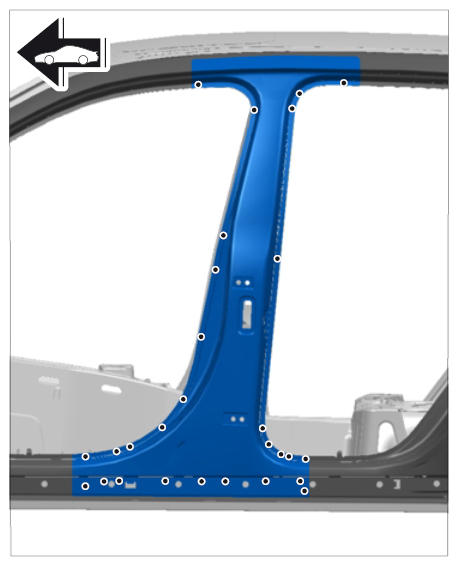

Drill out spotwelds using spotweld drill .

Fig 4: Identifying Drill Out Spotwelds B-Pillar
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Heat up connection areas using a hot-air gun.

Fig 5: Identifying B-pillar
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove B-pillar.
