Removing B-Pillar Reinforcement

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Remove B-pillar. →Removing B-Pillar
Mark and make cuts on inner B-pillar reinforcement.

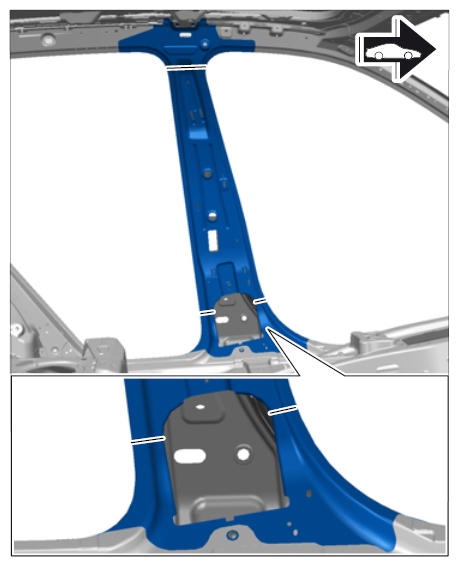

Fig 1: B-Pillar Reinforcement Component Location
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 2.1. Mark cut in lower area.
2. 2.2. Make rough top cut using the cutting disc.
3. 2.3. Make bottom cut in marked area using the body saw.
Grind down spotwelds.

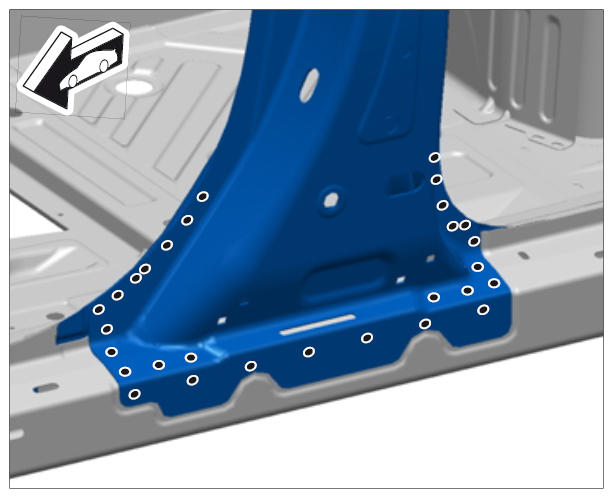

Fig 2: Identifying Spotwelds B-Pillar Reinforcement
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Grind down spotwelds.

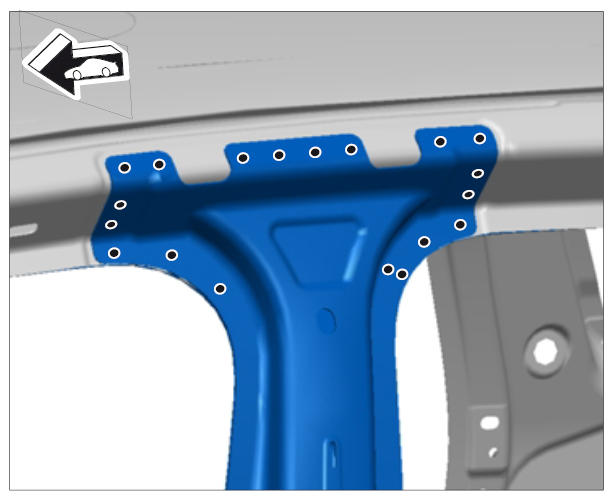

Fig 3: Identifying Grind Down Spotwelds B-Pillar Reinforcement
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Heat up connection areas using a hot-air gun.

Fig 4: Identifying B-Pillar Reinforcement
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove outer B-pillar reinforcement.
Separate inner B-pillar reinforcement.

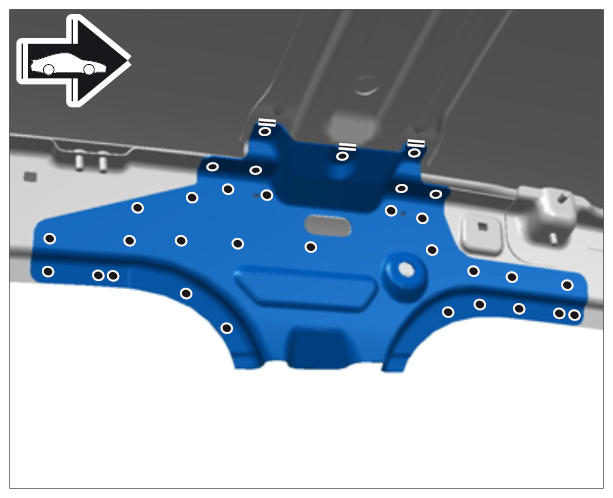

Fig 5: Identifying Inner B-Pillar Reinforcement
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 7.1. Grind down spotwelds.
2. 7.2. Grind down MIG seams.
3. 7.3. Remove remaining part of inner B-pillar reinforcement.
Heat up connection areas with a hot-air gun and remove sealing element.

Fig 6: Identifying B-Pillar Reinforcement
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
