Installing Outer B-Pillar Reinforcement

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Fit and secure outer B-pillar reinforcement.
Resistance spot-weld outer B-pillar reinforcement.

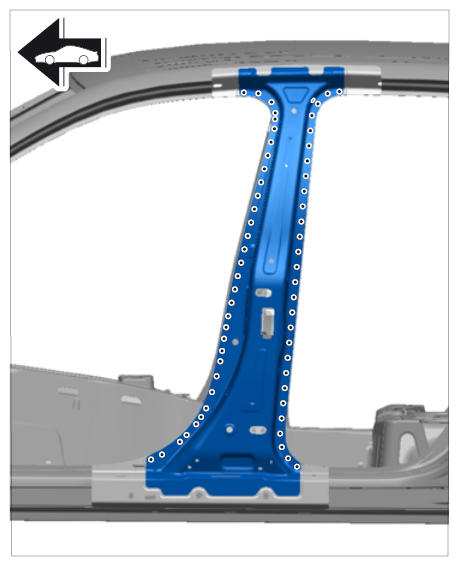

Fig 1: Identifying Resistance Spot-Weld Outer B-Pillar Reinforcement
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Weld in outer B-pillar reinforcement.

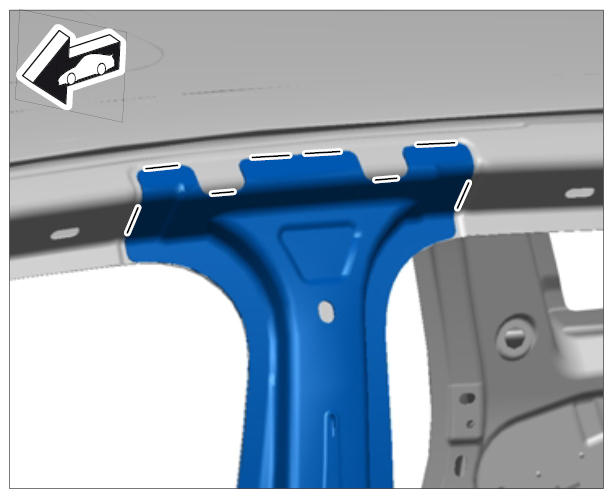

Fig 2: Identifying Weld In Outer B-Pillar Reinforcement
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 3.1. Spot-weld outer B-pillar reinforcement using inert gas.
  Information

  When welding slots, make sure that both edges of the slot are welded through.

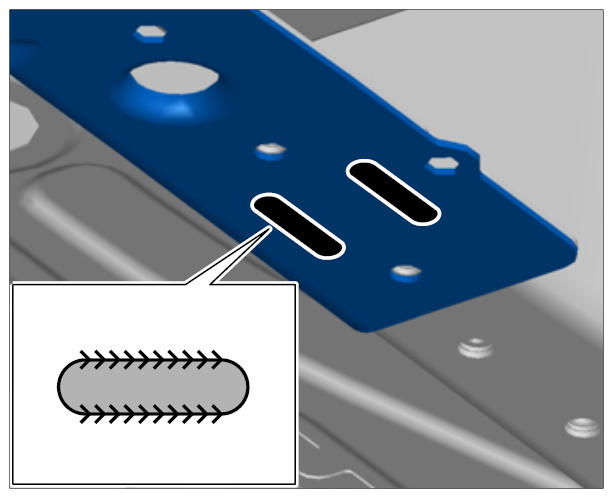

  Fig 3: Identifying B-Pillar Reinforcement Slot Welding
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 3.2. Slot-weld outer B-pillar reinforcement in the area -A- using inert gas.
Spot-weld outer B-pillar reinforcement using inert gas.

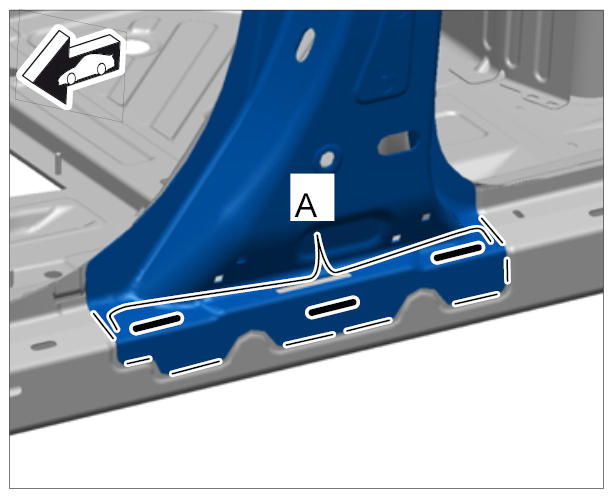

Fig 4: Installing outer B-pillar reinforcement
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fill outer B-pillar reinforcement with foam.

Fig 5: Filling Outer B-Pillar Reinforcement With Foam
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 5.1. Fill outer B-pillar reinforcement with foam from the inside in the marked area. → 5X00IN PROCESSING BODY FOAM FILLER
Install B-pillar. → Installing B-Pillar
