Installing Lock Carrier

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

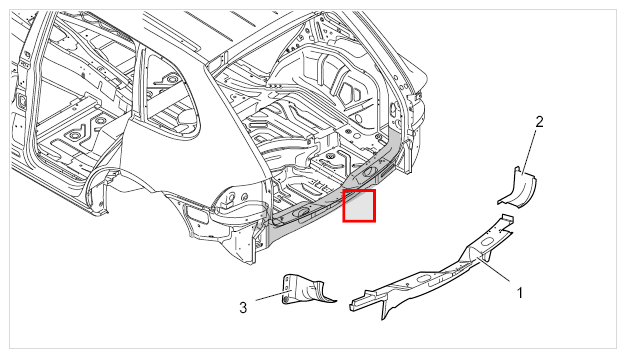

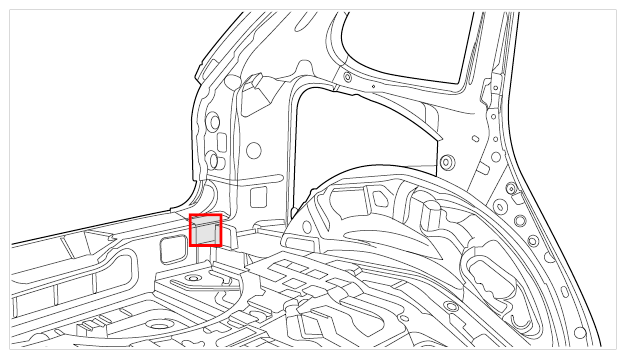

Fig 1: Identifying Lock Carrier Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Lock carrier
D-pillar gusset plate, right
D-pillar gusset plate, left

Fit lock carrier to the body.
1. 1.1. Position the lock carrier on the body and fix in place with tensioning clamps.

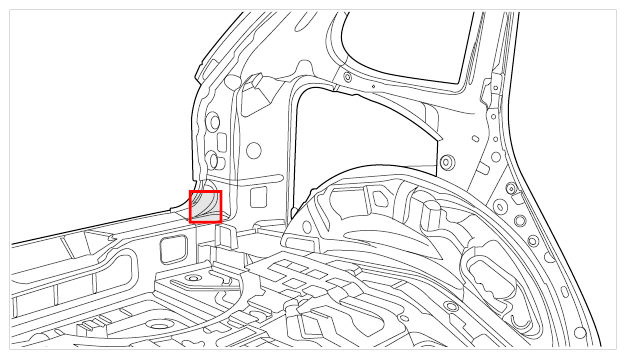

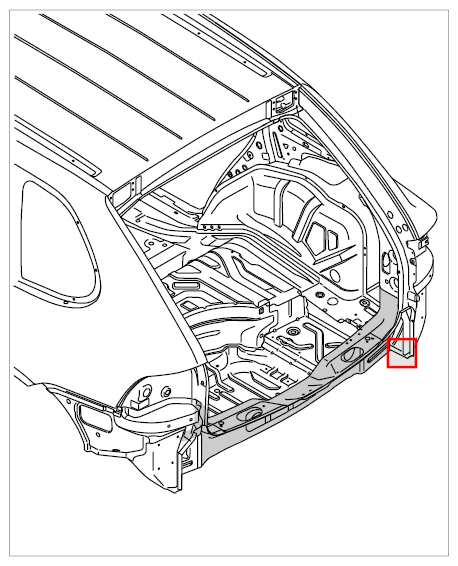

  Fig 2: Identifying Lock Carrier On Body (Inside)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Weld in inner lock carrier in area of D-pillar reinforcement and right side floor section.
1. 2.1. Weld the lock carrier in areas -A and B- using inert gas.

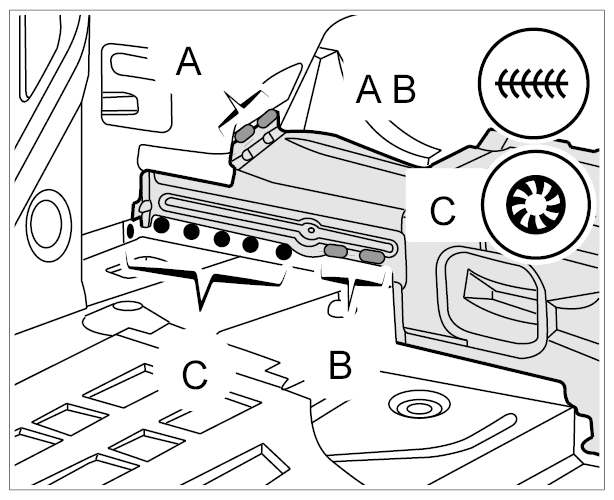

  Fig 3: Identifying Welded Joints On Right Inner Lock Carrier
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 2.2. Plug-weld the lock carrier in area -C- using inert gas.
Weld in inner lock carrier in area of D-pillar reinforcement and left side floor section.
1. 3.1. Weld the lock carrier in areas -D and E- using inert gas.

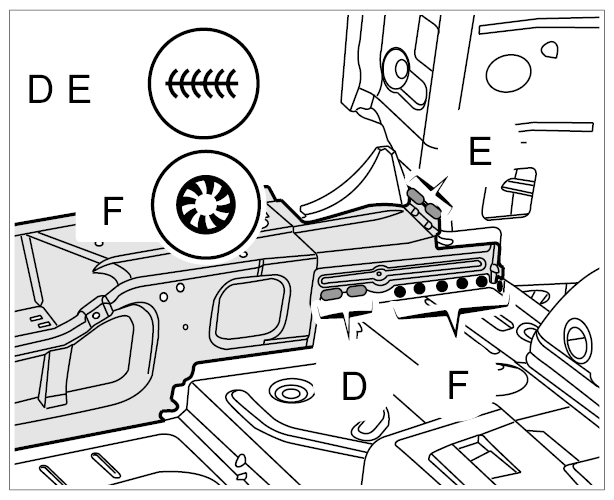

  Fig 4: Identifying Welded Joints On Inner Left Lock Carrier
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 3.2. Plug-weld the lock carrier in area -F- using inert gas.

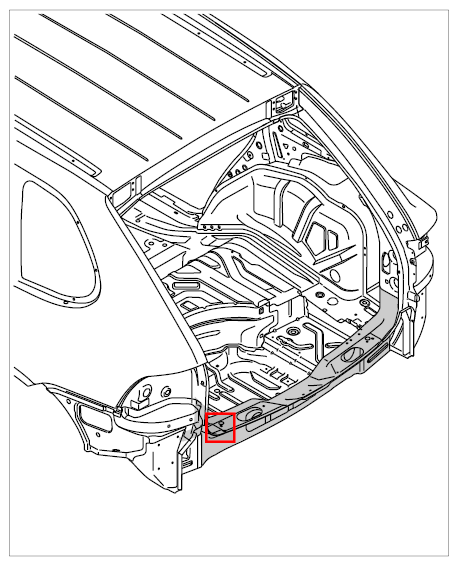

  Fig 5: Identifying Lock Carrier Working Area
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Weld in outer lock carrier in right side member area.
1. 4.1. Resistance spot-weld the lock carrier in areas -G- .

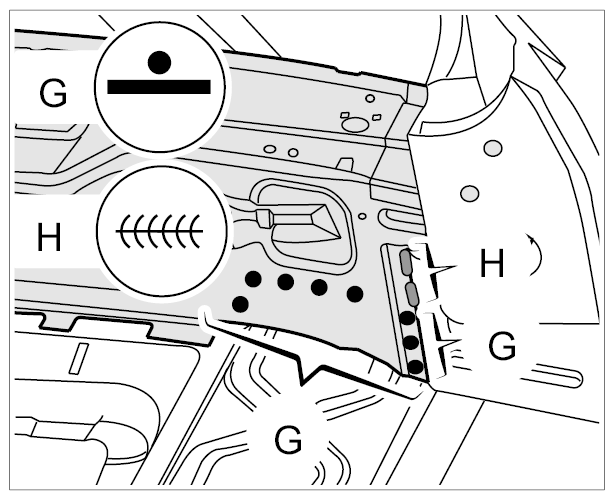

  Fig 6: Identifying Welded Joints On Right Outer Lock Carrier
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 4.2. Weld lock carrier in area -H- using inert gas.

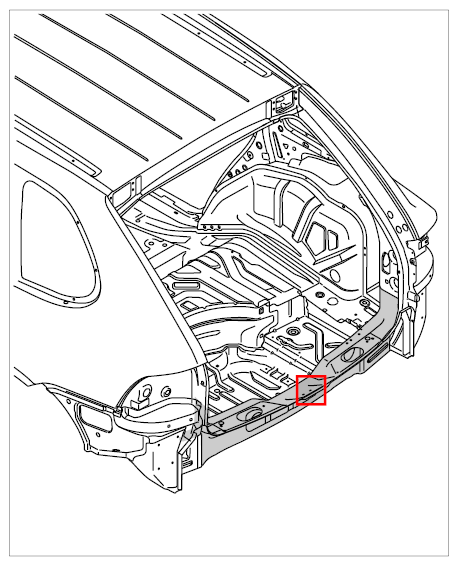

  Fig 7: Identifying Weld Lock Carrier Working Area
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Weld in lock carrier in spare-wheel well area.
1. 5.1. Resistance spot-weld the lock carrier in area -I- .

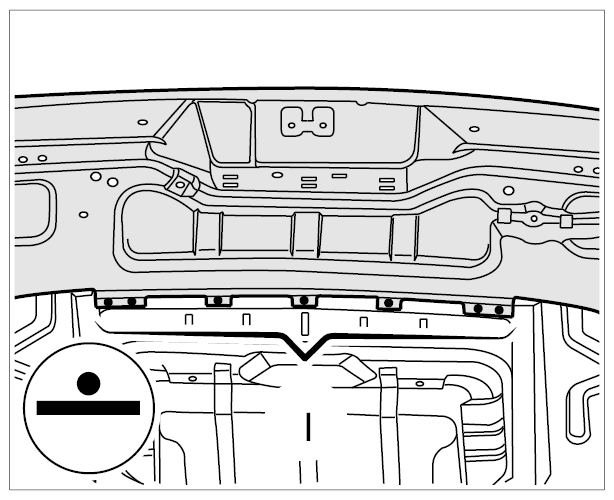

  Fig 8: Identifying Welded Joints On Outer Lock Carrier
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

  Fig 9: Identifying Outer Lock Carrier Working Area
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Weld in outer lock carrier in left side member area.

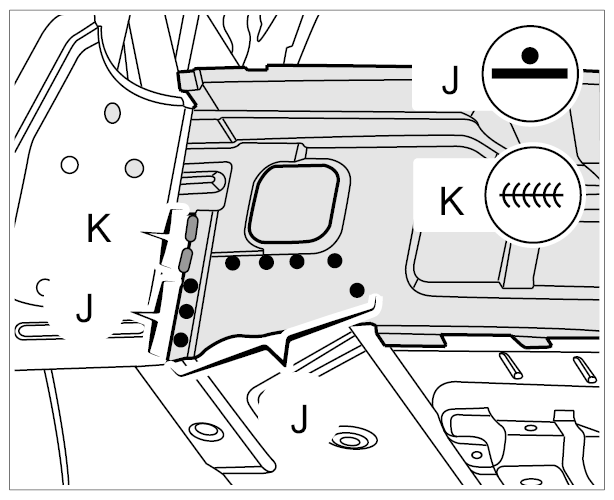

1. 6.1. Resistance spot-weld the lock carrier in areas -J- .

  Fig 10: Identifying Welded Joints On Left Outer Lock Carrier
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 6.2. Weld lock carrier in area -K- using inert gas.
Fit D-pillar gusset plates on the body.
1. 7.1. Position D-pillar gusset plates on the body and fix in place with tensioning clamps. Ensure that the D-pillar gusset plates are positioned flat at the connection point for the end plate.

  Fig 11: Overview From Inside D-Pillar Gusset Plates
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Weld in D-pillar gusset plates.
1. 8.1. Weld D-pillar gusset plates in areas -L- and -N- using inert gas.

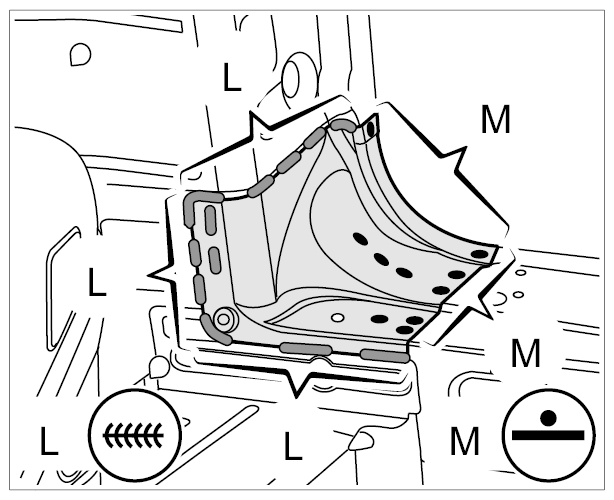

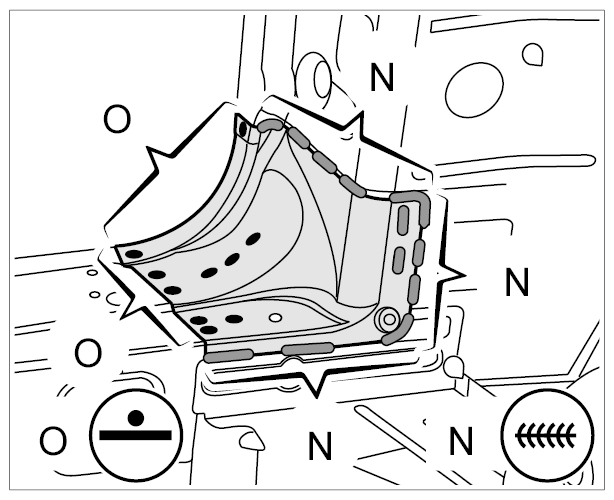

  Fig 12: Identifying Welded Joints On Right D-Pillar Gusset Plate
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

  Fig 13: Identifying Welded Joints On Left D-Pillar Gusset Plate
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 8.2. Resistance spot-weld the D-pillar gusset plates in areas -M- and -O- .
Install end plate. → INSTALLING CLOSING PANEL
