Installing Closing Panel

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

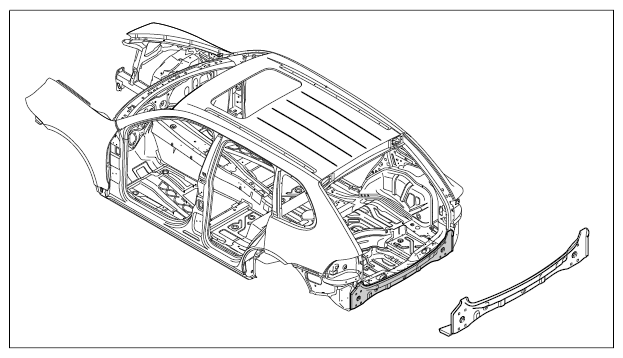

Fig 1: Identifying Closing Panel

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fit the closing panel to the body.
1. 1.1. Position the closing panel on the body and fix in place with tensioning clamps. Ensure that the closing panel is positioned flat at the connection point for the bumper.
Resistance spot-weld the closing panel.
1. 2.1. Resistance spot-weld the closing panel in areas -A, B- (-A, B- ) and -C, D- .

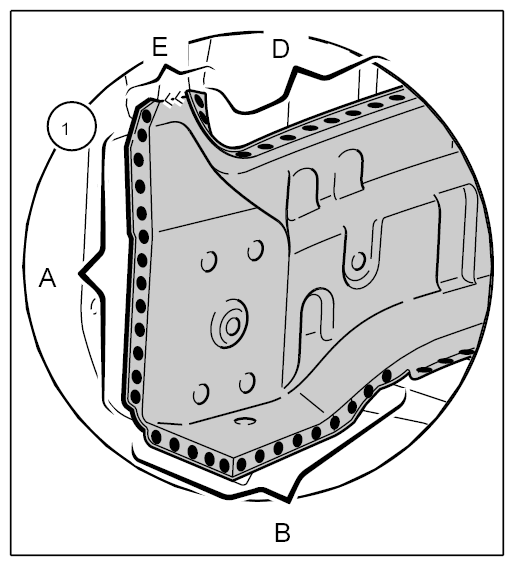

  Fig 2: Identifying Resistance Spot-Weld On Closing Panel Areas (1 Of 4)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

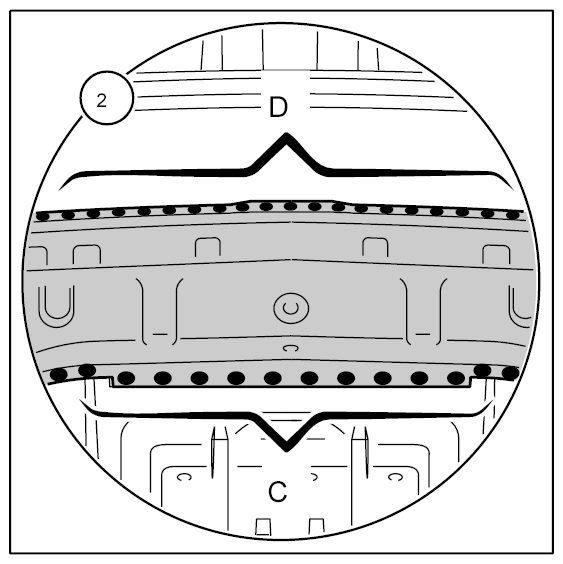

  Fig 3: Identifying Resistance Spot-Weld On Closing Panel Areas (2 Of 4)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

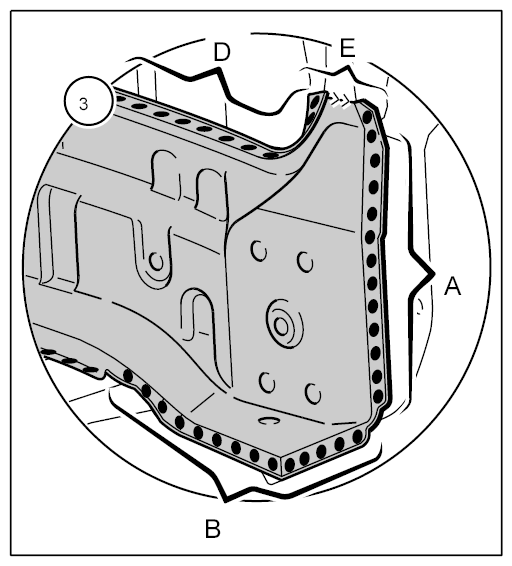

  Fig 4: Identifying Resistance Spot-Weld On Closing Panel Areas (3 Of 4)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

  Fig 5: Identifying Resistance Spot-Weld On Closing Panel Areas (4 Of 4)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Inert gas arc weld the closing panel.
1. 3.1. Inset gas arc weld the closing panel in the area -E- (-E- ) with a full weld.
