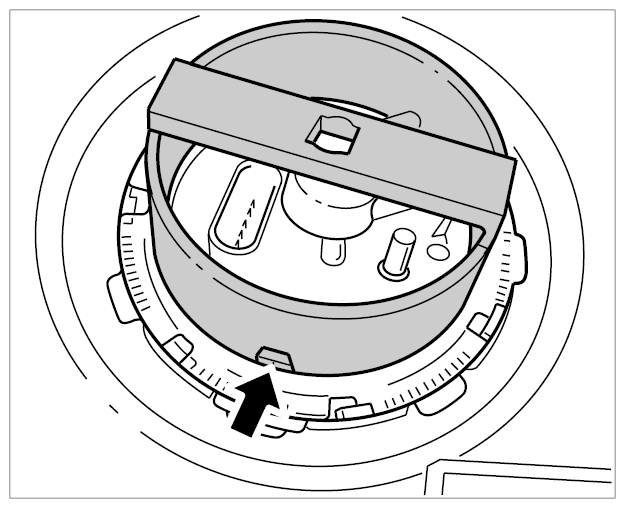

Close the tank. To do this, fit the sheetmetal ring on the left and right connection unit and tighten using special tool Wrench T10202 . → Cap → Tightening torque: 145 Nm (107 ft. lb.) +/-5 Nm (+/-3.5 ft. lb.)

Fig 1: Inserting Cap
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

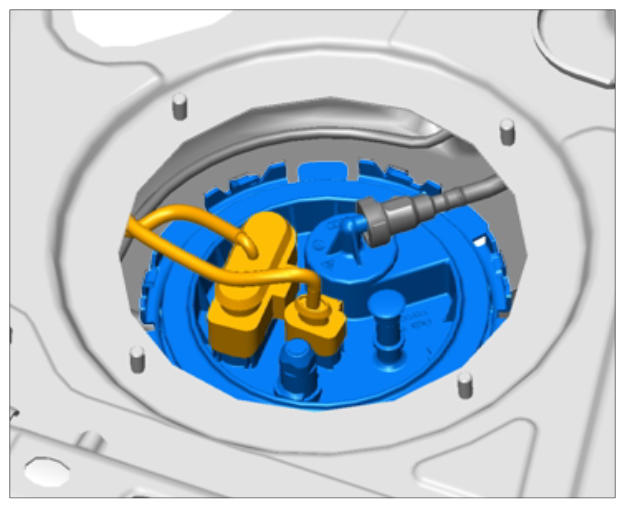

Fit all connections of the right connection unit (fuel lines, ventilation tubes and electric connectors). → Fuel supply and connection points at right connection unit

Fig 2: Identifying Fuel Supply And Connection Points At Right Connection Unit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

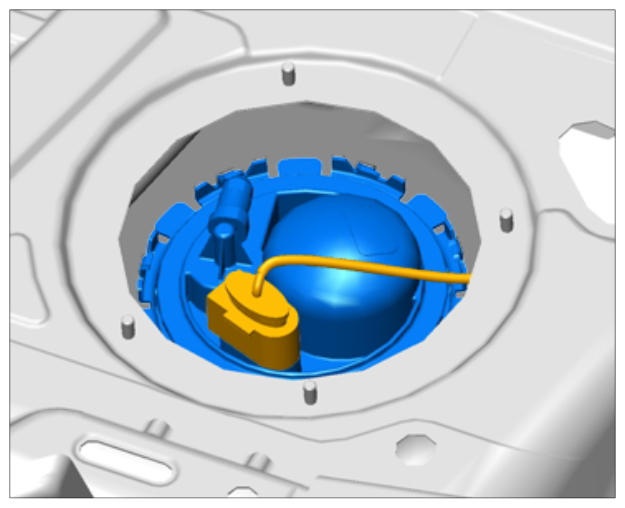

Plug in electric plug connection for the left connection unit.

Fig 3: Identifying Connector For Left Connection Unit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

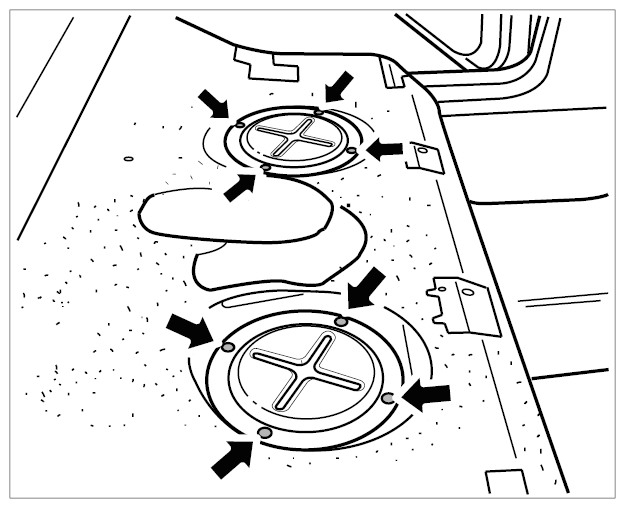

Fit the left lid (figure shows both lids). Then tighten the four fastening nuts to → Tightening torque: 10 Nm (7.5 ft. lb.) . Refit carpeted floor and fix in place with double-sided adhesive tape.

Fig 4: Locating Lids
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install rear seat. → INSTALLING 1/3-SPLIT FOLDING REAR SEAT or INSTALLING 2/3-SPLIT FOLDING REAR SEAT - section on "Installing"
Fill the fuel tank. → Filling With Fuel (Filling Fuel Tank) - section on "Filling"
Close the filler flap.
Connect the battery. → 2X00IN WORK INSTRUCTIONS AFTER DISCONNECTING THE BATTERY
