Right Fuel Level Sensor

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install a new fuel level sensor. Press the sensor into its mounting. The retaining spring must lock with an audible click.

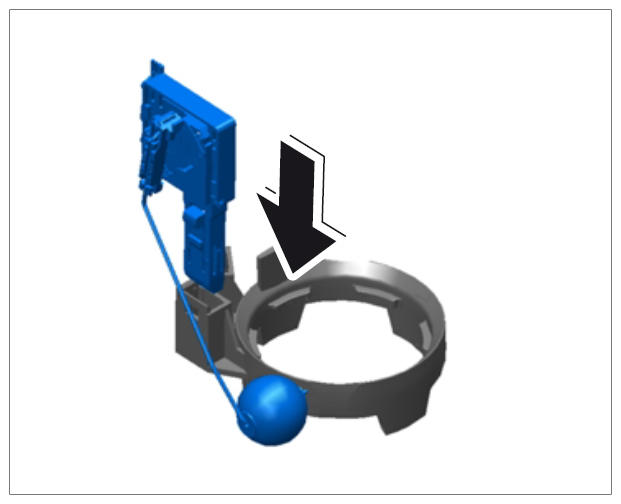

    Fig 1: Locating Right Fuel Level Sensor
    G09933292Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Install fuel pump. → Installing Fuel Pump  - section on "Installing"
  3. Fit a new seal in the opening of the tank at the left and right. → Seal

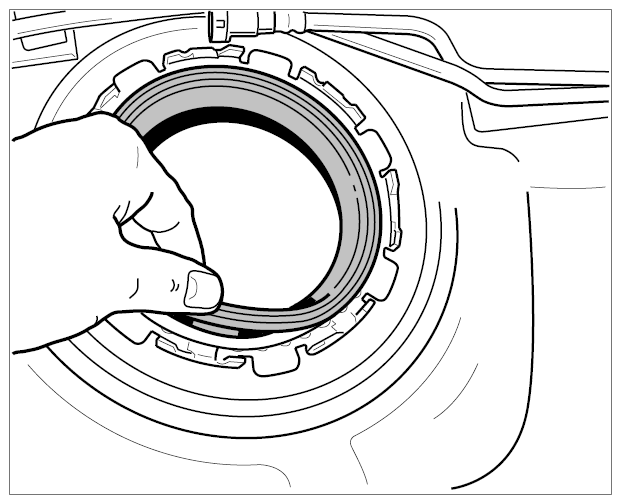

    Fig 2: Installing Seal
    G09933293Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Pull the fuel line on the pressure regulator through the fuel tank to the left connection unit using the attached piece of wire or similar item.
  5. Clip in the fuel line -3-  on the left connection unit.

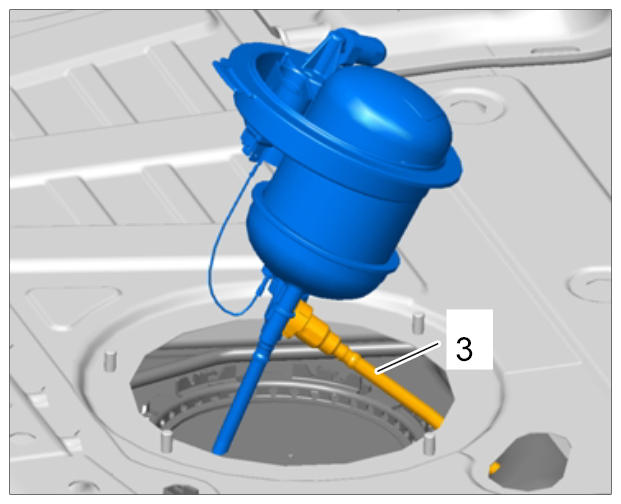

    Fig 3: Identifying Fuel Line On Left Connection Unit
    G09933294Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  6. Connect all connections on the underside of the right connection unit.
  7. Fit the right connection unit with the pressure regulator in the tank. When doing so, make sure that the plastic lugs are pointing forward.

    Left fuel level sensor

  8. Install a new fuel level sensor. Press the sensor into its mounting. The retaining spring must lock with an audible click.

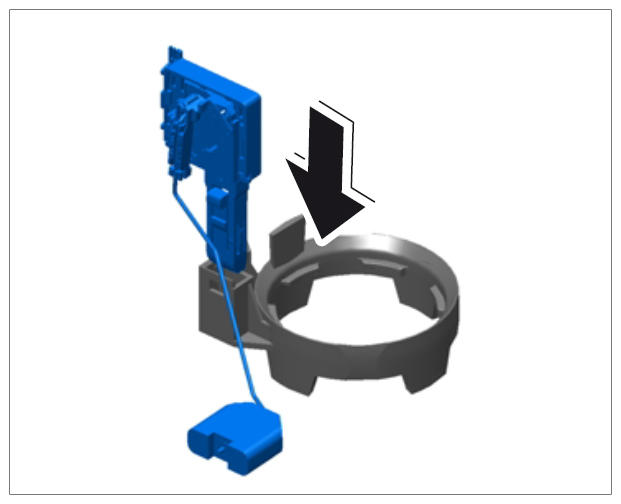

    Fig 4: Locating Left Fuel Level Sensor
    G09933295Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  9. Fit the left connection unit with the fuel filter in the tank. When doing so, make sure that the plastic lugs are pointing forward.
  10. Fit new seals in the openings on the tank. → Seal for opening on tank
    Fig 5: Installing Seal For Opening On Tank
    G09933296Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  11. Connect both lines -2 and 3 -  to the left connection unit.

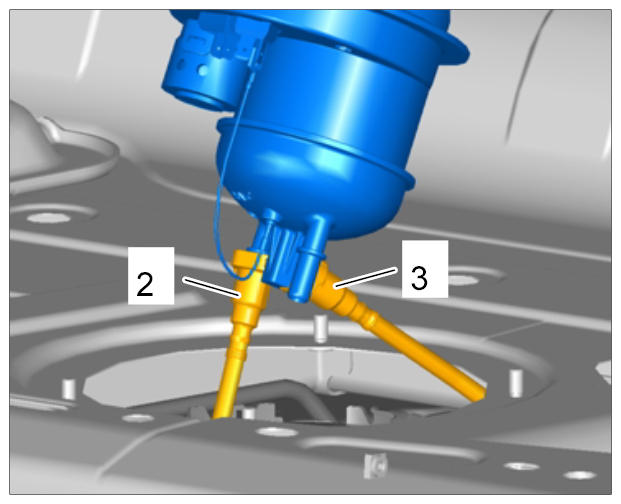

    Fig 6: Identifying Fuel Filter Lines
    G09933297Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  12. Plug in electric plug connection -1-  until it engages securely.

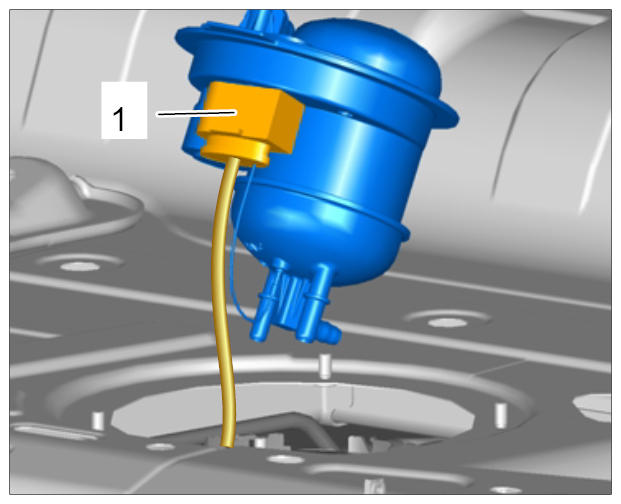

    Fig 7: Identifying Fuel Filter Plug Connection
    G09933298Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  13. Fit the left connection unit with the fuel filter in the tank. When doing so, make sure that the plastic lugs are pointing forward.
