Installing Fuel Pump

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

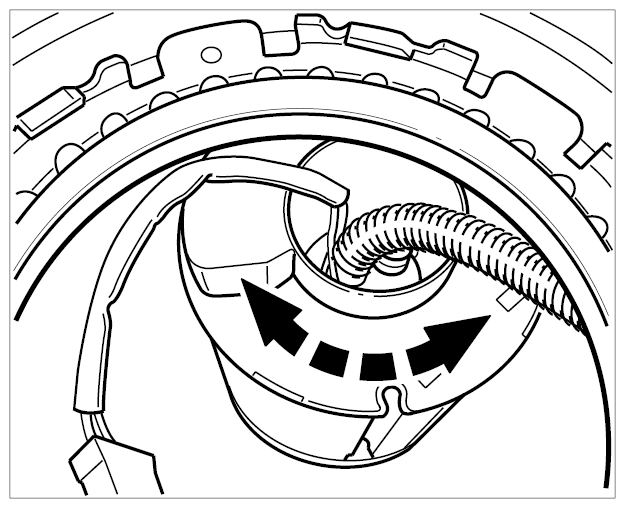

Place the pump in the holder on the tank floor and turn it approx. 90° to the right until it is seated securely.

Fig 1: Turning Fuel Pump
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

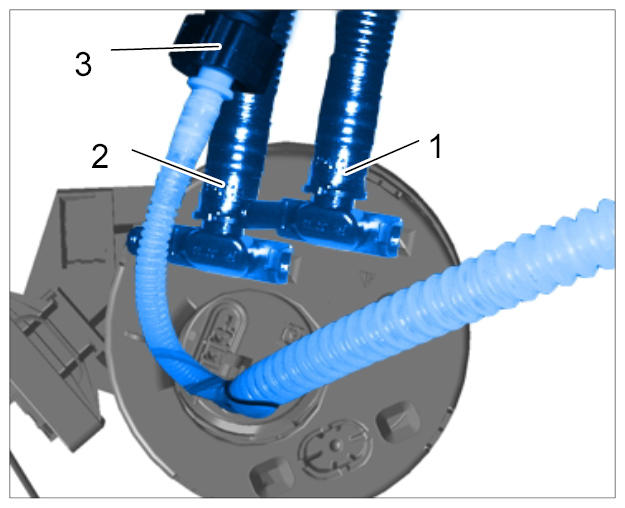

Connect the sucking jet pump connections -1 and 2- at the fuel pump. These must lock with an audible click.

Fig 2: Identifying Jet Pump Connections
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Connect the connection -3- until it engages securely.

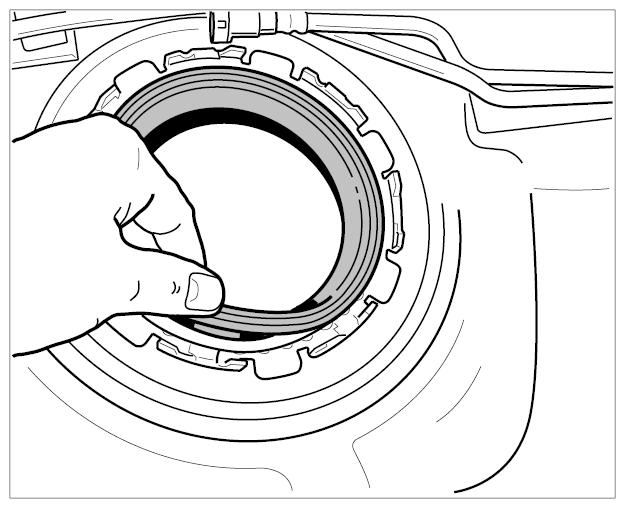

Fit a new seal in the opening of the tank at the left and right. → Seal

Fig 3: Installing Seal
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

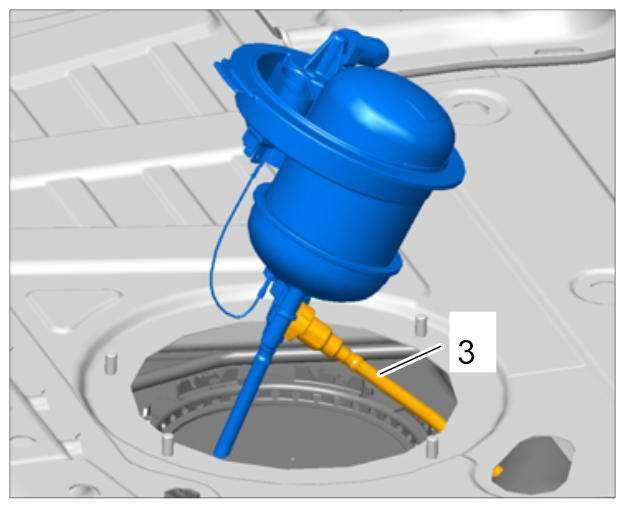

Pull the fuel line on the pressure regulator through the fuel tank to the left connection unit using the attached piece of wire or similar item.
Clip in the fuel line -3- on the left connection unit.

Fig 4: Connecting Fuel Line On Left Connection Unit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Connect all connections on the underside of the right connection unit.
Insert the left and right connection unit into the tank. When doing so, make sure that the plastic lugs are pointing forward.
