Subsequent Work

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Replace seals when refitting the flanges. → Seals on flanges

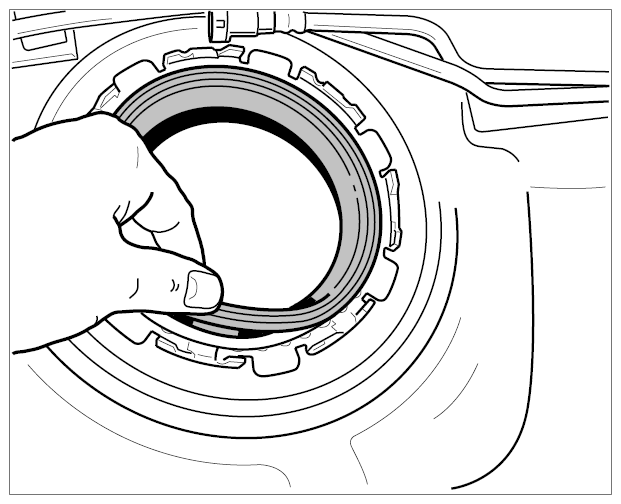

Fig 1: Replacing Seals On Flanges
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Close the tank. To do this, fit the sheetmetal ring on the left and right connection unit and tighten using Key T10202 . → Cap → Tightening torque: 145 Nm (107 ft. lb.) +/-5 Nm (+/-3.5 ft. lb.)

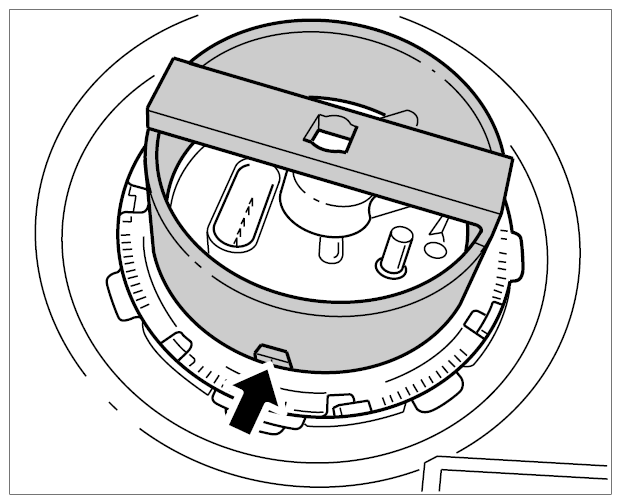

Fig 2: Inserting Key T10202
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fit all connections of the right connection unit (fuel lines, ventilation tubes and electric connectors).

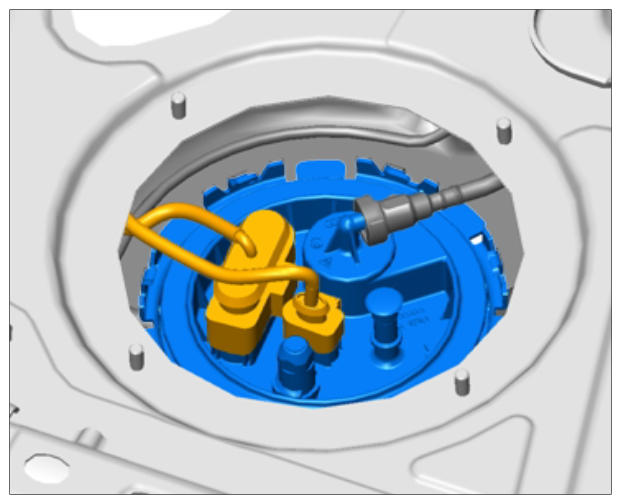

Fig 3: Identifying Fuel Supply And Connection Points At Right Connection Unit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Plug in electric plug connection for the left connection unit.

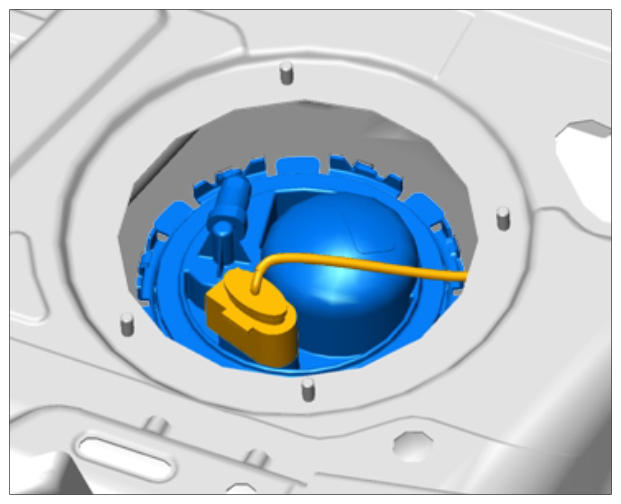

Fig 4: Identifying Left Connection Unit Connector
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fit left and right lid. Then tighten the four fastening nuts. → Fastening nuts on caps → Tightening torque: 10 Nm (7.5 ft. lb.) Refit the carpeted floor and fix with double-sided adhesive tape.

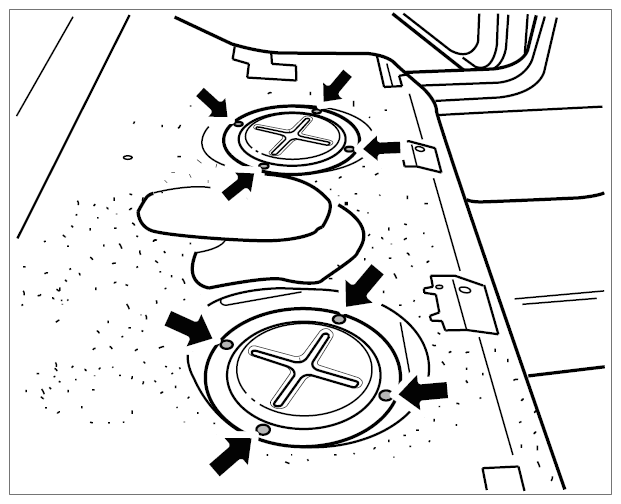

Fig 5: Locating Lids
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install rear seat. → INSTALLING 1/3-SPLIT FOLDING REAR SEAT or INSTALLING 2/3-SPLIT FOLDING REAR SEAT - section on "Installing"
