Preliminary Work

→ Ventilate the work area well.

→ Never ingest or inhale.

→ Read specific information on the Hazard Sheet.

→ Do not smoke, eat or drink in the work area.

→ Avoid contact with hot parts or sources of ignition.

→ Use suction to remove ignitable vapors.

→ Attach warning sign in a clearly visible position.

→ Only use fuel pumps designed specifically for the vehicle for draining the fuel tank.

Information

• All windows should be opened for better ventilation in the passenger compartment  .

1. Disconnect the battery. → 2X00IN WORK INSTRUCTIONS AFTER DISCONNECTING THE BATTERY
2. Remove rear seat. → REMOVING 1/3-SPLIT FOLDING REAR SEAT or REMOVING 2/3-SPLIT FOLDING REAR SEAT - section on "Removing"
3. Remove the left and right lid -arrows-  . To do this, remove the carpeted floor. Then loosen the four fastening nuts and remove the lid.

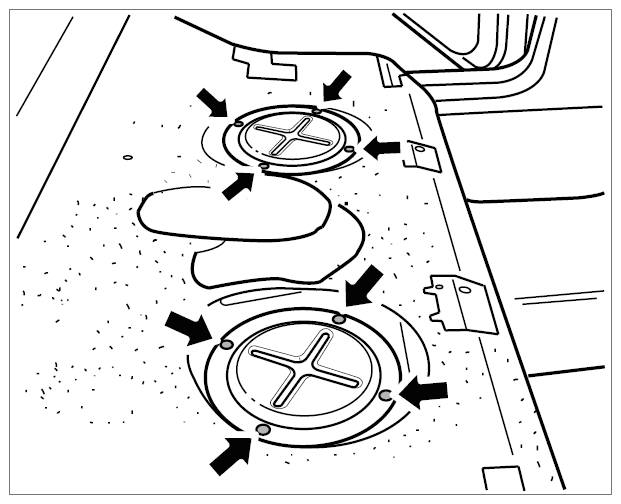

   Fig 1: Locating Lids

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

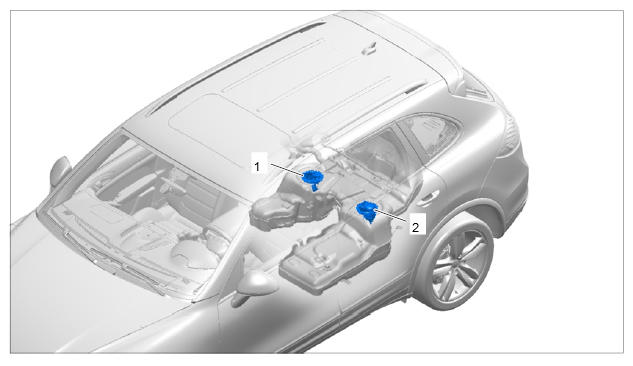

   Fig 2: Identifying Left And Right Connection Units

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   1. Right connection unit with pressure regulator
   2. Left connection unit with fuel filter
4. Disconnect all connections on the right connection unit. Disconnect electric plug connections.

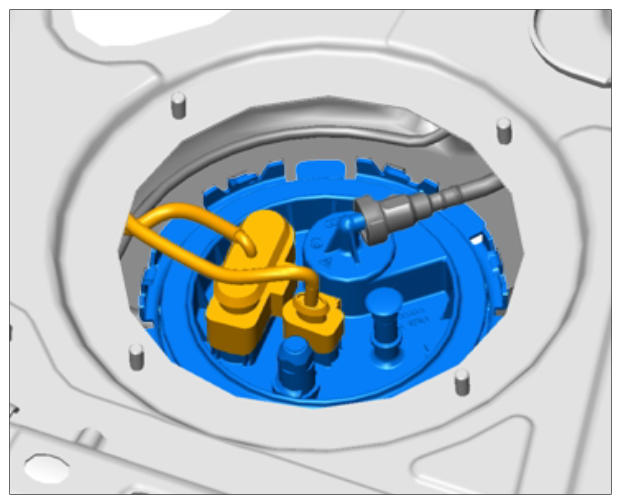

   Fig 3: Identifying Fuel Supply And Connection Points At Right Connection Unit

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. Disconnect electric plug connection from the left connection unit.

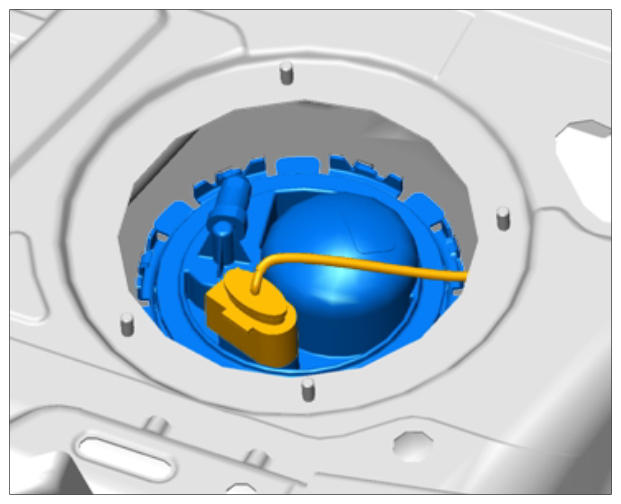

   Fig 4: Identifying Left Connection Unit Connector

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
6. Open the right and left lock using Key T10202  and lift up the connection units. → Special tool on lid

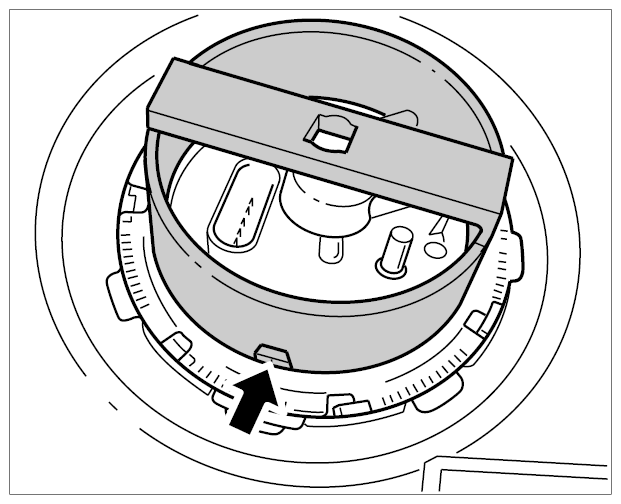

   Fig 5: Identifying Special Tool On Lid

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
