Removing 1/3-Split Folding Rear Seat

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

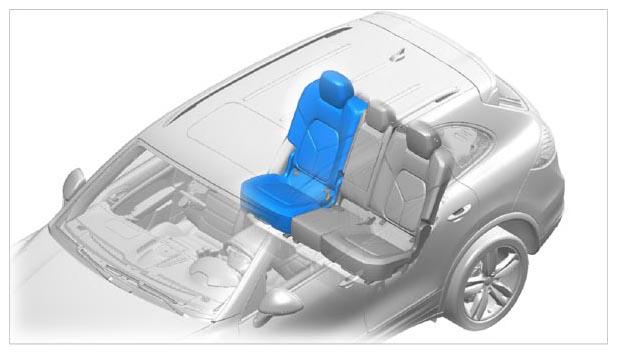

Fig 1: Identifying Installation Position Of 1/3-Split Folding Rear Seat

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unscrew fastening screws -1- on 1/3-split folding rear seat.

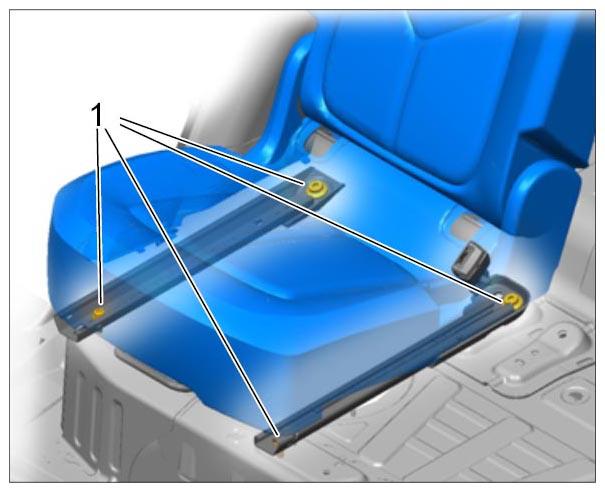

Fig 2: Identifying Fastening Screws On Rear Seat
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unclip electric plug connection -2- from the bracket.

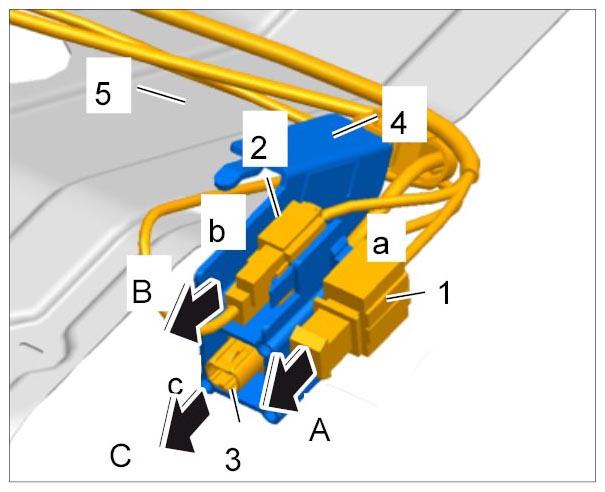

Fig 3: Removing Electric Plug Connections For 1/3-Split Folding Rear Seat
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove 1/3-split folding rear seat from the vehicle.
