Preliminary Work

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Remove the timing-case cover at the top. → REMOVING TIMING-CASE COVER - section on "Removing"
Set crankshaft to compression TDC for cylinder 1 → TDC for cylinder 1 . → 150502 CHECKING THE TIMING ON V6 DFI ENGINES - section on "Checking"

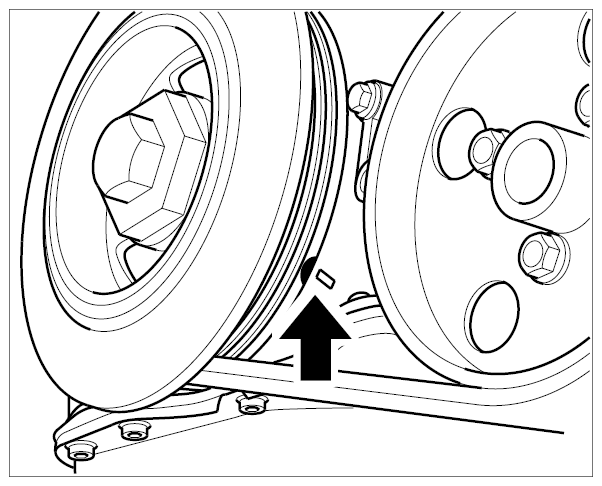

Fig 1: Identifying TDC For Cylinder 1
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
