Subsequent Work

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Fit both camshaft controllers. → 158419 REMOVING AND INSTALLING CAMSHAFT CONTROLLER ON V6 DFI ENGINES
  2. Fit the timing chain on the camshaft controllers. → WM 153520 REMOVING AND INSTALLING TIMING CHAINS
    1. 2.1. Install chain tensioner. → 153619 REMOVING AND INSTALLING CHAIN TENSIONER

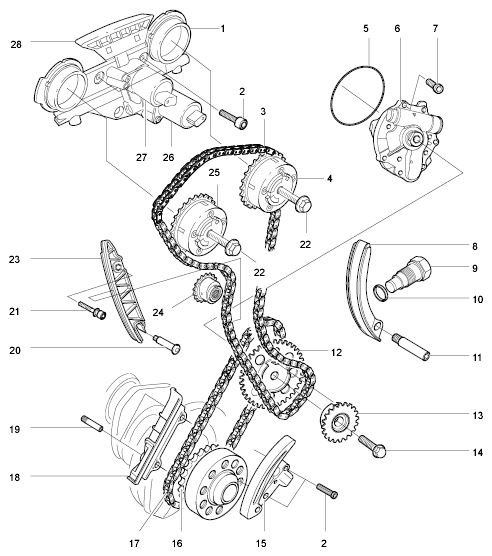

      Fig 1: Overview Of Timing Chains
      G09932520Courtesy of PORSCHE CARS NORTH AMERICA, INC.
      1. Timing Chain Housing
      2. Oval-Head Screw On Timing Chain Housing → Tightening Torque: 8 Nm (6 ft. lb.)
      3. Timing Chain
      4. Outlet Camshaft Controller (Marking 32 A)
      5. Sealing Ring
      6. Oil Pump
      7. Fastening Screw On Oil Pump → Tightening Torque: 8 Nm (6 ft. lb.)
      8. Tensioning Rail
      9. Chain Tensioner On Timing Chain → Tightening Torque: 40 Nm (30 ft. lb.)
      10. Sealing Ring (A22 x 27), Always Replace
      11. Bearing Pin On Guide Rail → Tightening Torque: 10 Nm (7.5 ft. lb.)
      12. Sprocket
      13. Drive Wheel For Timing Chain
      14. Hexagon-Head Bolt → Initial Tightening: 60 Nm (44 ft. lb.) → Torque Angle: 90°
      15. Chain Tensioner For Drive Chain
      16. Drive Gear Wheel For Drive Chain
      17. Drive Chain
      18. Guide Rail For Drive Chain
      19. Bolt For Guide Rail → Tightening Torque: 10 Nm (7.5 ft. lb.)
      20. Fastening Screw On Guide Rail → Tightening Torque: 20 Nm (15 ft. lb.)
      21. Hexagon-Head Bolt On Guide Rail → Tightening Torque: 23 Nm (17 ft. lb.)
      22. Hexagon-Head Bolts On Camshaft Controllers → Initial Tightening: 60 Nm (44 ft. lb.) → Torque Angle: 90°
      23. Guide Rail For Timing Chain
      24. Drive Gear Wheel For High-Pressure Pump
      25. Intake Camshaft Controller (Marking 24 E)
      26. Valve For Outlet Camshaft Controller
      27. Valve For Intake Camshaft Controller
      28. Guide Rail
      NOTE: Incorrect handling of crankshafts
      • Risk of damage to the timing system

      → Never turn the crankshaft against the rolling direction or when the chain tensioner is removed.

      → Proceed carefully with your work.

      → Only turn the engine at the crankshaft.

      → After working on the camshaft, re-set the valve timing.

      → Observe general warning notes and working regulations.

  3. Check the timing. → WM 150502 CHECKING THE TIMING
  4. Fit Upper  timing-case cover. → WM 153319 REMOVING AND INSTALLING CHAIN HOUSING COVER
  5. Install cylinder head cover. → WM 158219 REMOVING AND INSTALLING CYLINDER HEAD COVER (VALVE COVER)
  6. Install belt tensioner. → 137319 REMOVING AND INSTALLING BELT TENSIONER ON DFI ENGINES
  7. Fit and tension the drive belt.

    → 137819 REMOVING AND INSTALLING DRIVE BELT

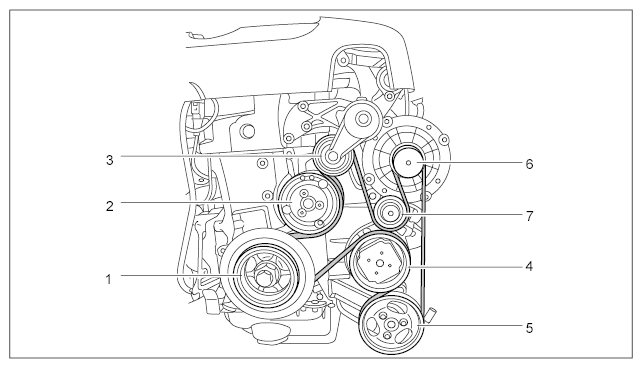

    Fig 2: Identifying Drive Belt Routing Diagram
    G09932521Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. Crankshaft vibration balancer
    2. Coolant pump
    3. Drive belt tensioning roller
    4. Air-conditioning compressor
    5. Power-steering pump/tandem pump
    6. Generator
    7. Deflection roller
  8. Install intake-air distributor. → INSTALLING INTAKE-AIR DISTRIBUTOR - section on "Installing"
  9. Install bar ignition modules. → INSTALLING BAR IGNITION MODULES
  10. Install engine wire harness. → WM 975219 REMOVING AND INSTALLING WIRE HARNESS FOR ENGINE
