Installing Bar Ignition Modules

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the plug coils. When doing so, make sure that the smooth surface is pointing upwards. An audible click indicates that they are installed correctly.

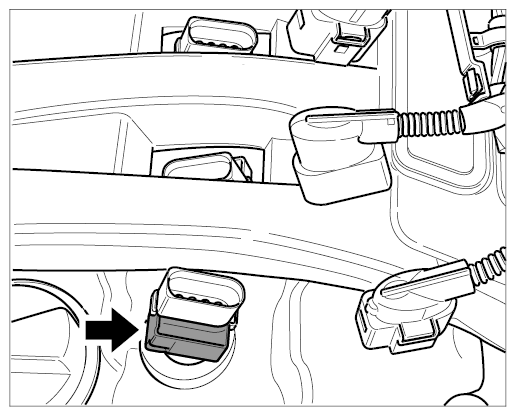

    Fig 1: Installing Plug Coils
    G09934213Courtesy of PORSCHE CARS NORTH AMERICA, INC.
