Removing Lines For ATF Cooling

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

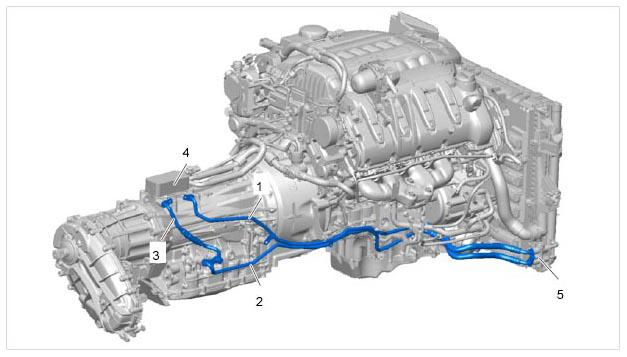

Fig 1: Identifying Installation Location Of ATF Lines
G09934594Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Line from ATF heat exchanger to ATF thermostat
  2. Line from automatic transmission to ATF thermostat
  3. Line from ATF heat exchanger to automatic transmission
  4. ATF heat exchanger
  5. ATF thermostat

Removal of line - 1 - -1-

  1. Lower the automatic transmission. → 373519 REMOVING AND INSTALLING TRANSMISSION
  2. Loosen holder -1-  for ATF lines at the front of the transmission.
    Fig 2: Identifying Holder For ATF Lines At Front Of Transmission
    G09934595Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Unclip ATF lines -A-  .
  4. Place a suitable container underneath to catch emerging ATF  .

    Loosen the front fastening screw -1-  for the ATF lines -2-  on the ATF heat exchanger -3-  and pull it out.

    Close off the ATF lines and bores in the heat exchanger using suitable stoppers.

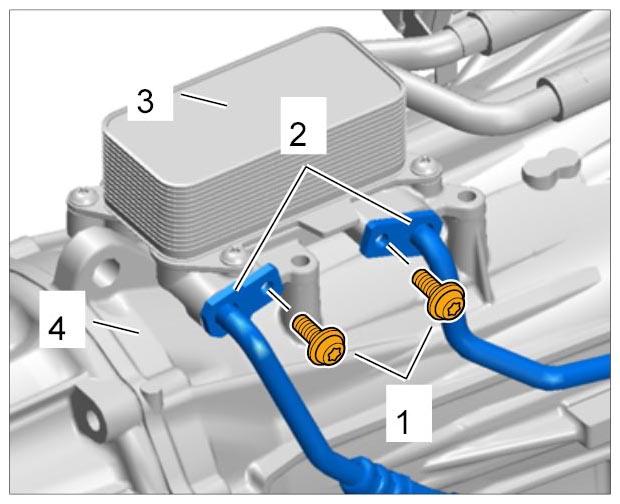

    Fig 3: Identifying ATF Lines At Top
    G09934596Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  5. Lift the automatic transmission using a suitable jack. → Installing Automatic Transmission

    Use the old screws to secure the transmission.

  6. Loosen the fastening screw -1-  on the holder -2-  for ATF lines -3-  at the thermostat -4-  .
    Fig 4: Identifying ATF Lines From Thermostat To Transmission
    G09934597Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  7. Place a suitable container underneath to catch emerging ATF  .

    Pull ATF lines out of the thermostat.

    Close off the ATF lines and bores at the thermostat using suitable stoppers.

  8. Remove engine carrier. → 103019 REMOVING AND INSTALLING ENGINE CARRIER
  9. Detach holder -1-  for ATF lines at the front of the engine.
    Fig 5: Identifying Holder For ATF Lines At Front Of Engine
    G09934598Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  10. Detach holder -1-  for ATF lines at the rear of the engine.

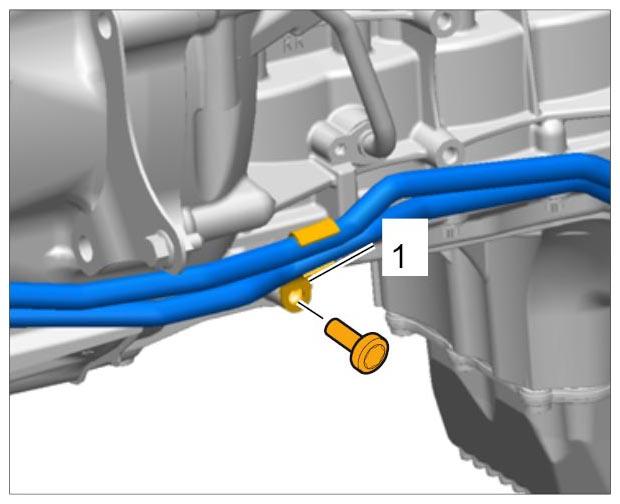

    Fig 6: Identifying Holder For ATF Lines At Rear Of Engine
    G09934599Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  11. Remove ATF line out of the vehicle and set it aside.

    Removal of line - 2 - -2-

  12. Loosen fastening screws -1-  for the heat shield -2-  at the automatic transmission -3-  .

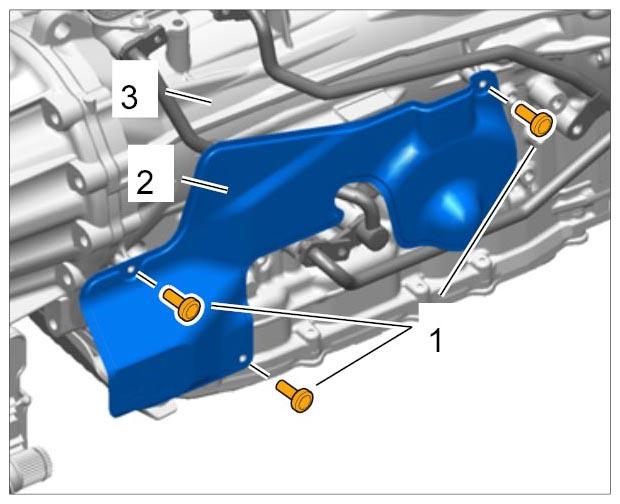

    Fig 7: Identifying Heat Shield For Automatic Transmission
    G09934600Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  13. Place a suitable container underneath to catch emerging ATF  .

    Loosen the fastening screw -1-  for the ATF lines -2-  at the bottom of the transmission -3-  .

    Fig 8: Detaching ATF Lines At Bottom Of Transmission
    G09934601Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  14. Remove rear ATF lines.

    Close off the ATF lines and transmission bores using suitable stoppers.

  15. Loosen the fastening screw -1-  on the holder -2-  for ATF lines -3-  at the thermostat -4-  .

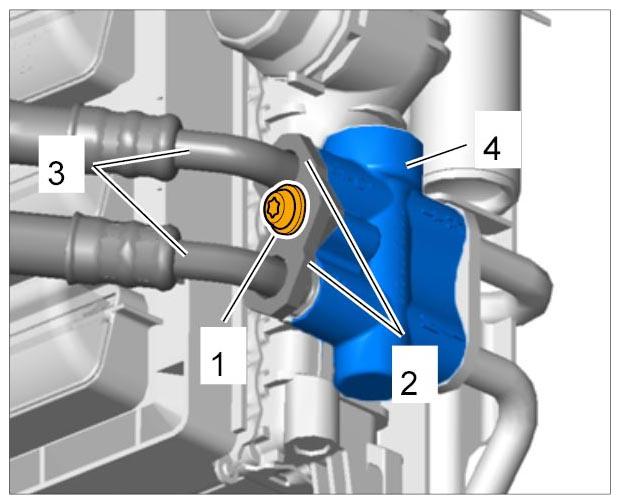

    Fig 9: Identifying ATF Lines From Thermostat To Transmission
    G09934602Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  16. Place a suitable container underneath to catch emerging ATF  .

    Pull ATF lines out of the thermostat.

    Close off the ATF lines and bores at the thermostat using suitable stoppers.

  17. Remove engine carrier. → 103019 REMOVING AND INSTALLING ENGINE CARRIER
  18. Detach holder -1-  for ATF lines at the front of the engine.

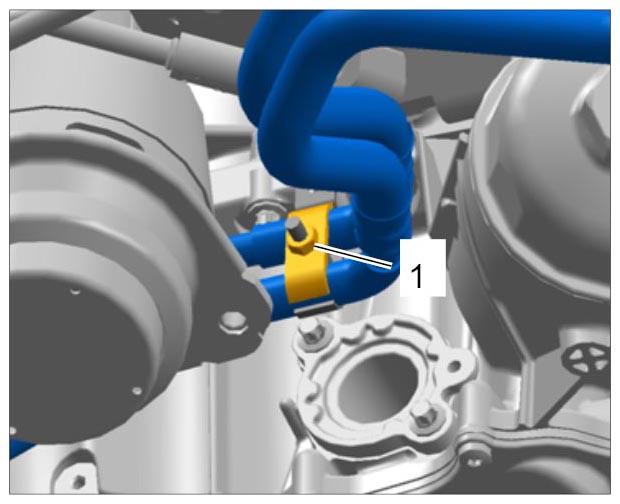

    Fig 10: Identifying Holder For ATF Lines At Front Of Engine
    G09934603Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  19. Detach holder -1-  for ATF lines at the rear of the engine.
    Fig 11: Identifying Holder For ATF Lines At Rear Of Engine
    G09934604Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  20. Unclip ATF lines -A-  .

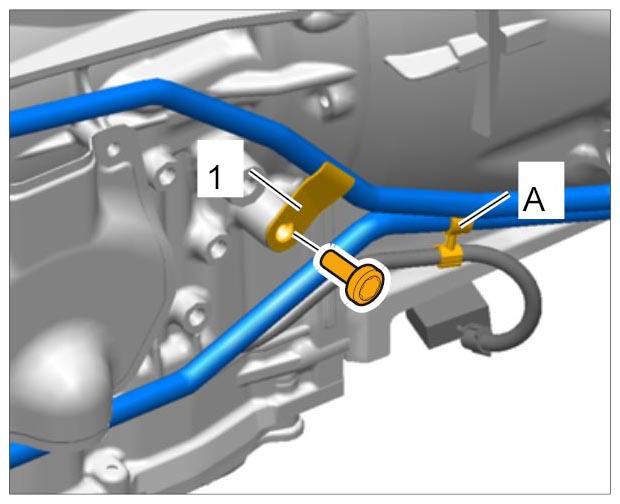

    Fig 12: Identifying Holder For ATF Lines At Front Of Transmission
    G09934605Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  21. Remove ATF line out of the vehicle and set it aside.

    Removal of line - 3 - -3-

  22. Lower the automatic transmission. → 373519 REMOVING AND INSTALLING TRANSMISSION
  23. Loosen fastening screws -1-  for the heat shield -2-  at the automatic transmission -3-  .
    Fig 13: Identifying Heat Shield For Automatic Transmission
    G09934606Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  24. Remove heat shield.
  25. Place a suitable container underneath to catch emerging ATF  .

    Loosen the fastening screw -1-  on the ATF lines -2-  at the bottom of the transmission -3-  .

    Fig 14: Detaching ATF Lines At Bottom Of Transmission
    G09934607Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  26. Remove front ATF line.

    Close off the ATF lines and transmission bores using suitable stoppers.

  27. Place a suitable container underneath to catch emerging ATF  .

    Loosen the rear fastening screw -1-  for the ATF lines -2-  on the ATF heat exchanger -3-  and pull it out.

    Close off the ATF lines and bores in the heat exchanger using suitable stoppers.

    Fig 15: Identifying ATF Lines At Top
    G09934608Courtesy of PORSCHE CARS NORTH AMERICA, INC.
