Installing Lines For ATF Cooling

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

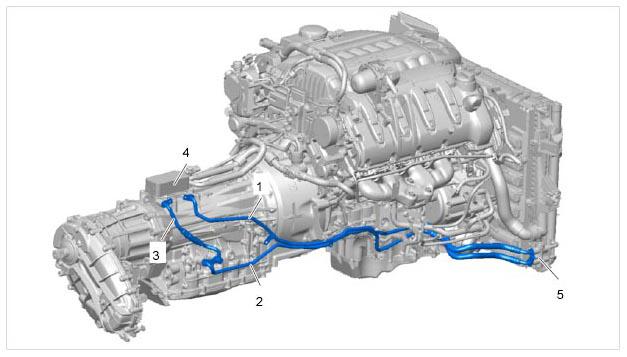

Fig 1: Identifying Installation Location Of ATF Lines
G09934609Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Line from ATF heat exchanger to ATF thermostat
  2. Line from automatic transmission to ATF thermostat
  3. Line from ATF heat exchanger to automatic transmission
  4. ATF heat exchanger
  5. ATF thermostat

Installation of line - 1 - -1-

  1. Remove engine carrier. → 103019 REMOVING AND INSTALLING ENGINE CARRIER
  2. Insert ATF lines into the vehicle.
  3. Place holder -1-  for ATF lines on the rear of the engine and screw in fastening screw to → Tightening torque: 10 Nm (7.5 ftlb.)  .

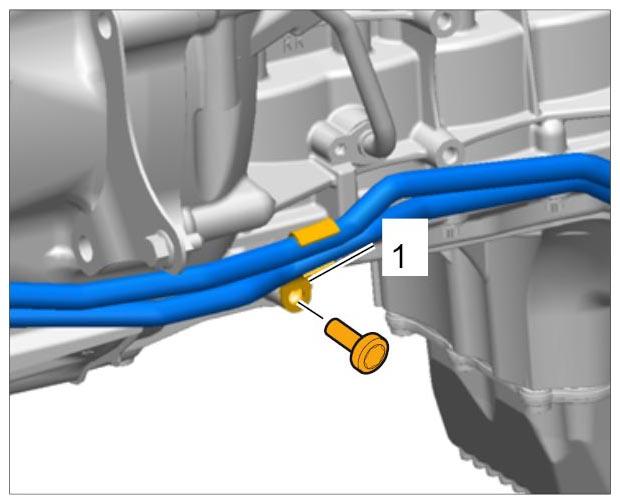

    Fig 2: Identifying Holder For ATF Lines At Rear Of Engine
    G09934610Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Place ATF lines on the front of the engine and fit the holder -1-  to → Tightening torque: 10 Nm (7.5 ftlb.)  .
    Fig 3: Identifying Holder For ATF Lines At Front Of Engine
    G09934611Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  5. Insert ATF lines -3-  into the thermostat -4-  .
    Fig 4: Identifying ATF Lines From Thermostat To Transmission
    G09934612Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  6. Place holder -2-  for ATF lines -3-  to the ATF thermostat -4-  in position.

    Ensure that the lines are seated correctly.

  7. Fit fastening screw -1-  to → Tightening torque: 8 Nm (6 ftlb.)  .
  8. Install engine carrier. → 103019 REMOVING AND INSTALLING ENGINE CARRIER
  9. Lower the automatic transmission. → 373519 REMOVING AND INSTALLING TRANSMISSION
  10. Secure holder -1-  for ATF lines to the front of the transmission.

    Screw in fastening screw to → Tightening torque: 23 Nm (17 ftlb.)  .

  11. Clip ATF line into the holder -A-  .

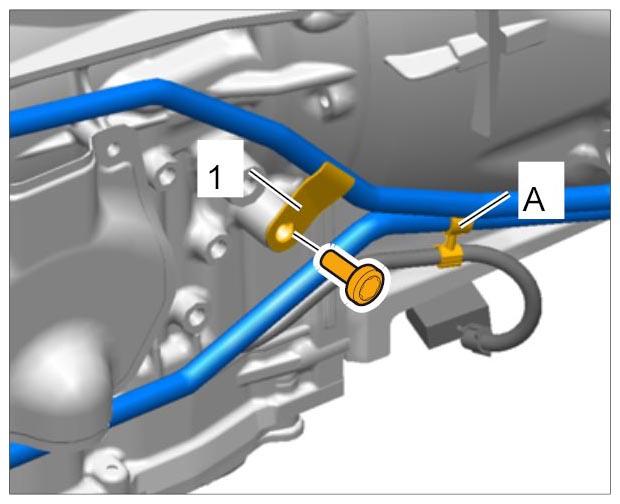

    Fig 5: Identifying Holder For ATF Lines At Front Of Transmission
    G09934613Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  12. Position the front ATF line -2-  on the ATF heat exchanger -3-  .

    Ensure that the lines are seated correctly.

  13. Fit fastening screws -1-  to → Tightening torque: 8 Nm (6 ftlb.)  .
    Fig 6: Identifying ATF Lines At Top
    G09934614Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  14. Lift the automatic transmission using a suitable jack.

    Fit fastening screws for transmission cross member. → Installing Automatic Transmission

    Installation of line - 2 - -2-

  15. Remove engine carrier. → 103019 REMOVING AND INSTALLING ENGINE CARRIER
  16. Insert ATF lines into the vehicle.
  17. Place holder -1-  for ATF lines on the rear of the engine and screw in fastening screw to → Tightening torque: 10 Nm (7.5 ftlb.)  .
    Fig 7: Identifying Holder For ATF Lines At Rear Of Engine
    G09934615Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  18. Place ATF lines on the front of the engine and fit the holder -1-  to → Tightening torque: 10 Nm (7.5 ftlb.)  .

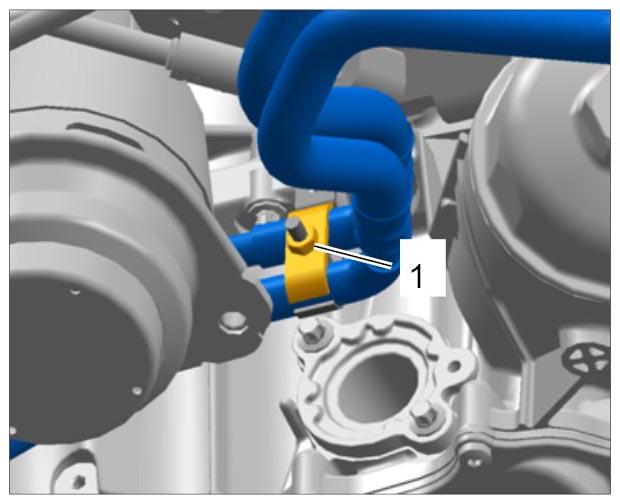

    Fig 8: Identifying Holder For ATF Lines At Front Of Engine
    G09934616Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  19. Insert ATF lines -3-  into the thermostat -4-  .

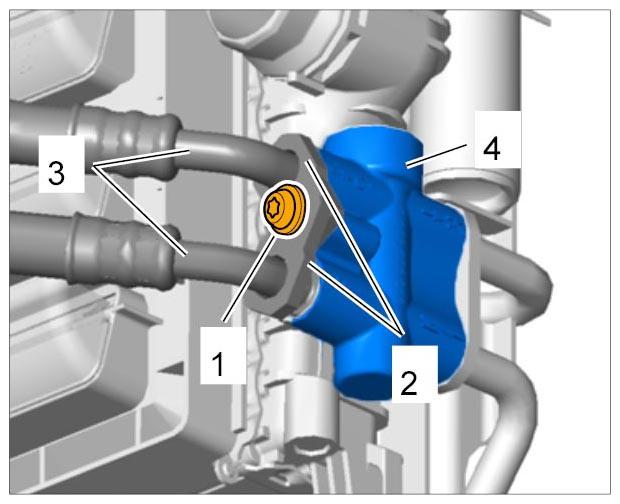

    Fig 9: Identifying ATF Lines From Thermostat To Transmission
    G09934617Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  20. Place holder -2-  for ATF lines -3-  to the ATF thermostat -4-  in position.

    Ensure that the lines are seated correctly.

  21. Fit fastening screw -1-  to → Tightening torque: 8 Nm (6 ftlb.)  .
  22. Install engine carrier. → 103019 REMOVING AND INSTALLING ENGINE CARRIER
  23. Position ATF lines -2-  with holder in the transmission -3-  .

    Ensure that the lines are seated correctly.

    Fig 10: Detaching ATF Lines At Bottom Of Transmission
    G09934618Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  24. Fit fastening screw -1-  to → Tightening torque: 20 Nm (15 ftlb.)  .
  25. Fit fastening screws -1-  of the heat shield -2-  to the automatic transmission -3-  to → Tightening torque: 15 Nm (11 ftlb.)  .
    Fig 11: Identifying Heat Shield For Automatic Transmission
    G09934619Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Installation of line - 3 - -3-

  26. Lower the automatic transmission. → 373519 REMOVING AND INSTALLING TRANSMISSION
  27. Position the rear ATF line -2-  on the ATF heat exchanger -3-  .

    Ensure that the lines are seated correctly.

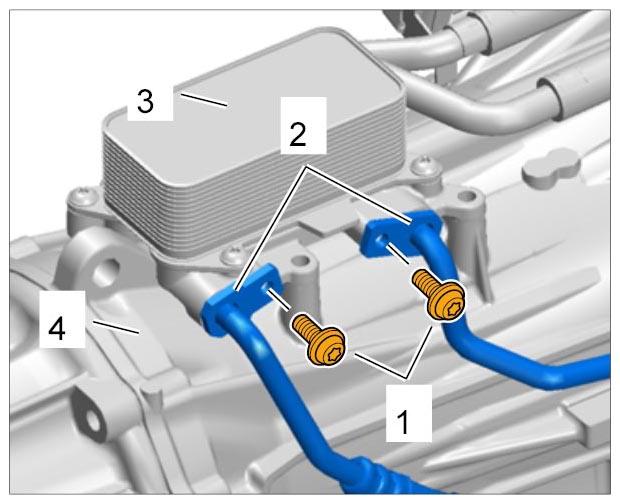

    Fig 12: Identifying ATF Lines At Heat Exchanger
    G09934620Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  28. Fit fastening screws -1-  to → Tightening torque: 8 Nm (6 ftlb.)  .
  29. Position ATF lines -2-  with holder in the transmission -3-  .

    Ensure that the lines are seated correctly.

    Fig 13: Detaching ATF Lines At Bottom Of Transmission
    G09934621Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  30. Fit fastening screw -1-  to → Tightening torque: 20 Nm (15 ftlb.)  .
  31. Fit fastening screws -1-  of the heat shield -2-  to the automatic transmission -3-  to → Tightening torque: 15 Nm (11 ftlb.)  .

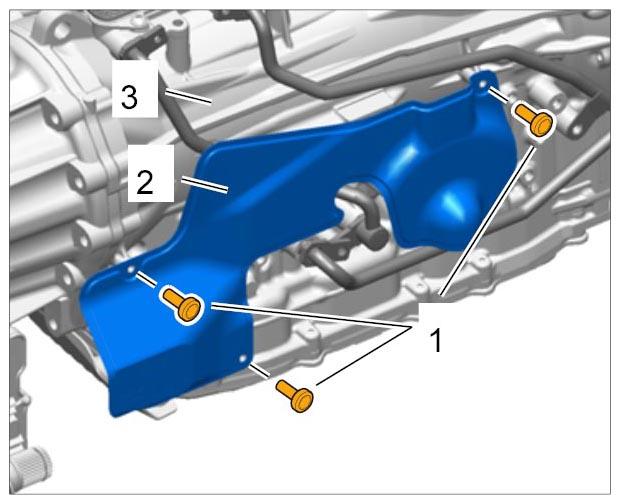

    Fig 14: Identifying Heat Shield For Automatic Transmission
    G09934622Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  32. Lift the automatic transmission using a suitable jack.

    Fit fastening screws for transmission cross member. → Installing Automatic Transmission
