Removing Wire Harness For Tailgate At The Left

→ Switch off ignition and remove remote control before disconnecting or removing load.

Information

Always comply with the regulations for handling ESD-sensitive components!

• Assembly work may only be carried out if the mechanic is wearing the working clothes and shoes approved by Porsche  .
• The new part must only be removed from the ESD (electrostatic discharge) protective packaging just before installation and at the position at which the part is to be installed  .
• Never touch the electric pins and plug contacts  .

Information

The number of plug connections can vary, depending on equipment.

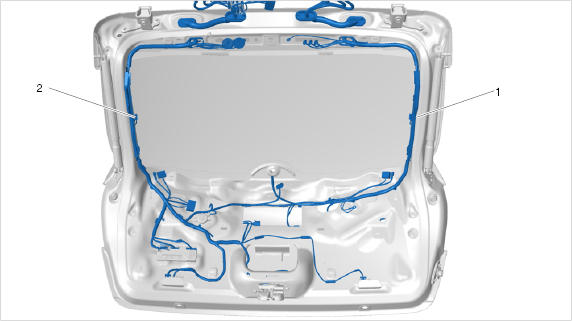

Fig 1: Identifying Installation Position Of Wire Harness For Tailgate

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Wire harness for tailgate, left
2. Wire harness for tailgate, right

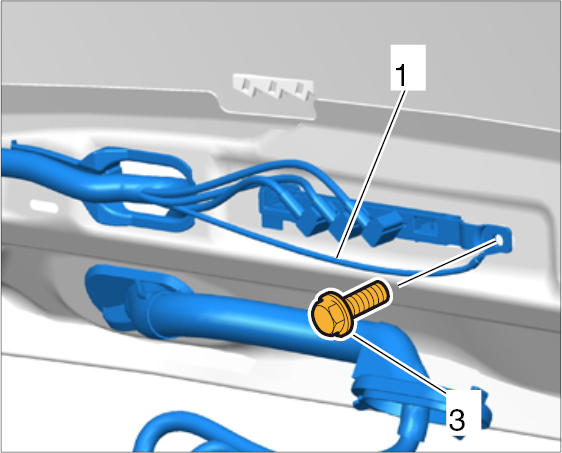

1. Unscrew fastening screw -3-  and disconnect ground line -1-  .
   Fig 2: Identifying Ground Line To Antenna Control Unit And Screw

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

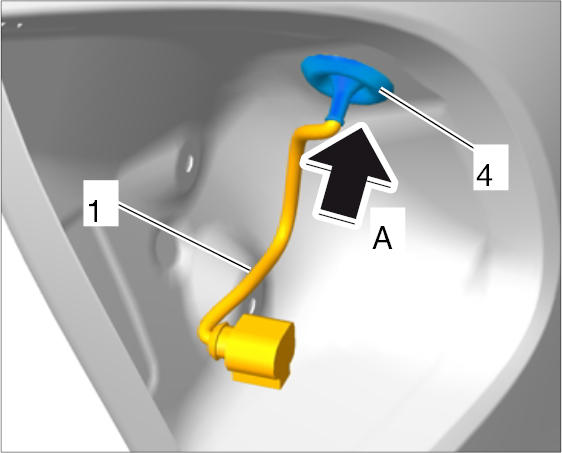

2. Press rubber sleeve -4-  inwards -A-  and pull wire harness -1-  through towards the inside.
   Fig 3: Locating Rubber Sleeve On Tail Light

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

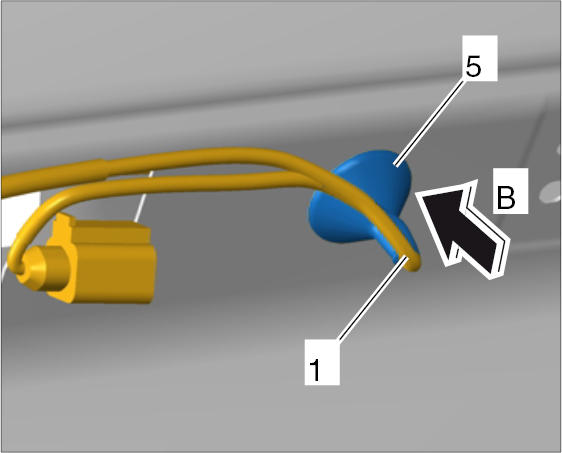

3. Press rubber sleeve -5-  inwards -B-  and pull wire harness -1-  through towards the inside.
   Fig 4: Locating Rubber Sleeve On Handle Strip

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Release water spray line using a screwdriver and pull it off. → REMOVING WIPER MOTOR FOR REAR WIPER SYSTEM - section on "Removing"
5. Release and disconnect electric plug connection for the wiper motor. → REMOVING WIPER MOTOR FOR REAR WIPER SYSTEM - section on "Removing"
6. Disconnect electric plug connection for rear window heating.
7. Release and disconnect electric plug connections for antenna amplifier control unit. → REMOVING CONTROL UNIT FOR ANTENNA AMPLIFIER - section on "Removing"

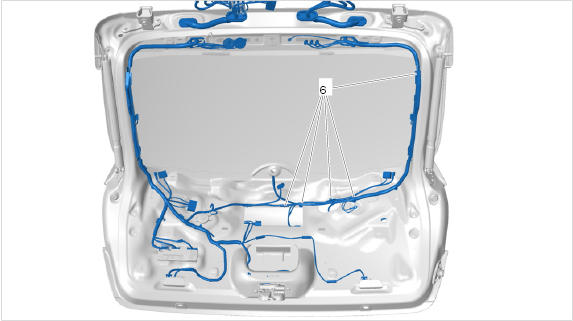

8. Unclip fixing clips -6-  for wire harness for tailgate at the left.
   Fig 5: Identifying Fastening Points For Left Wire Harness

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

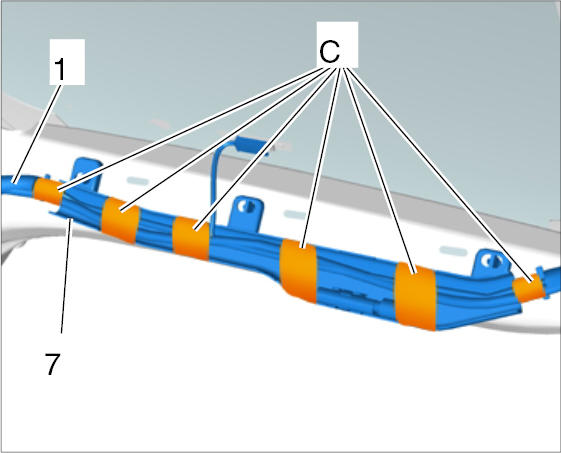

9. Remove wire harness -1-  from the bracket next to the window -7-  (-C-  ).
   Fig 6: Identifying Wire Harness Line And Bracket

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

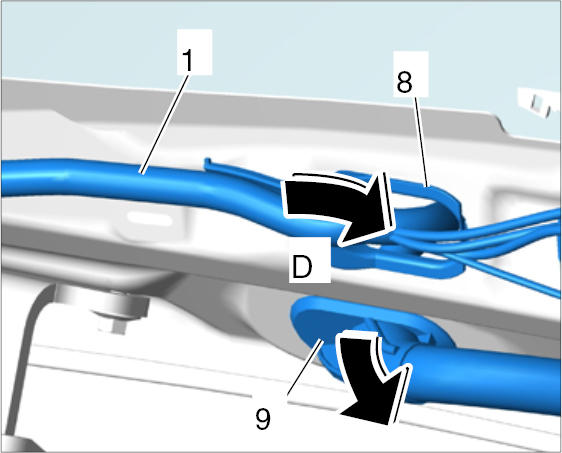

10. Remove wire harness -1-  from bracket -8-  .
    Fig 7: Pulling Wire Harness Through Tailgate

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
11. Remove rubber sleeve -9-  and pull wire harness -1-  through towards the tailgate -D-  .

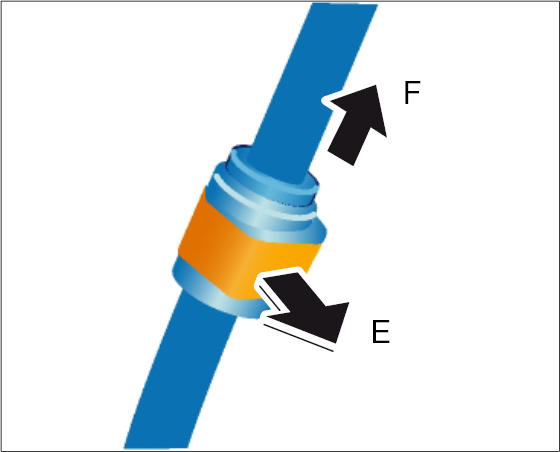

12. Release connection point for water spray line -E-  and pull it off -F-  .
    Fig 8: Disconnecting Water Spray Line

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

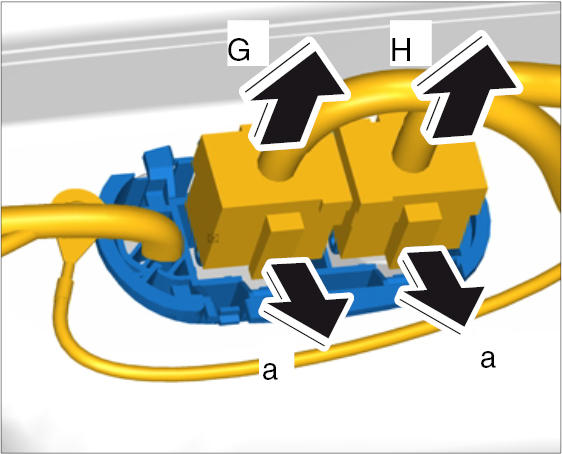

13. Release electric plug connections -a-  and disconnect them -G, H-  .
    Fig 9: Disconnecting Plug Connections At Connection Point

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

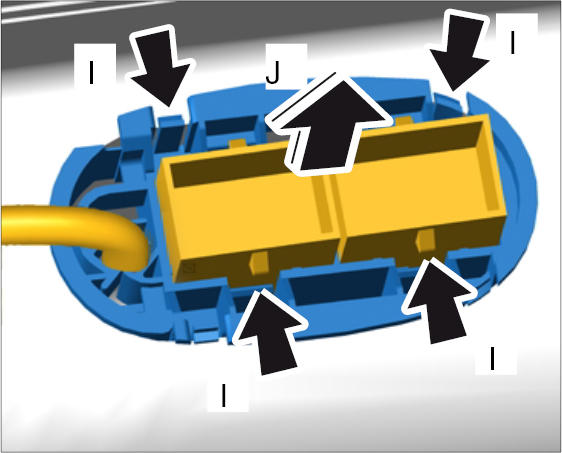

14. Unclip bracket for the connectors -I-  and remove it -J-  .
    Fig 10: Removing Bracket At Connection Point

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

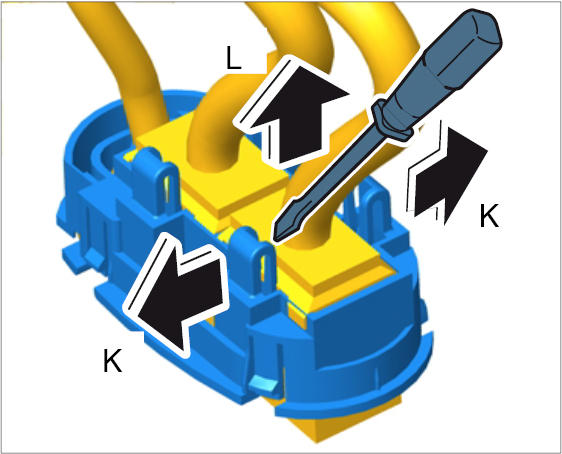

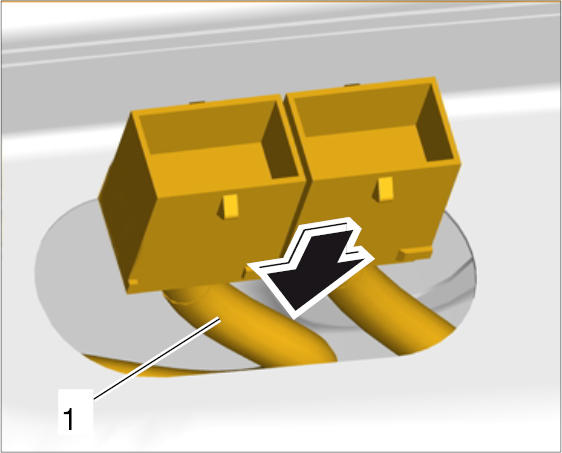

15. Unclip connectors from bracket -K-  and disconnect them -L-  .
    Fig 11: Unclipping Connectors From Bracket At Connection Point

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
16. Guide wire harness -1-  towards the rear and through the cut-outs in the roof -arrow-  .
    Fig 12: Locating Roof Guiding Wire Harness

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
