Loosening Main Wire Harness In Luggage Compartment At The Right

→ Switch off ignition and remove remote control before disconnecting or removing load.

Information

Always comply with the regulations for handling ESD-sensitive components!

• Assembly work may only be carried out if the mechanic is wearing the working clothes and shoes approved by Porsche  .
• The new part must only be removed from the ESD (electrostatic discharge) protective packaging just before installation and at the position at which the part is to be installed  .
• Never touch the electric pins and plug contacts  .

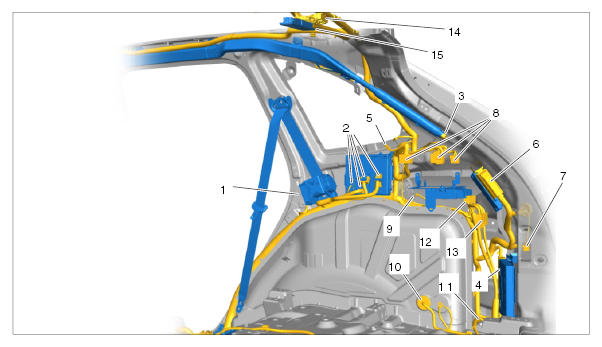

  Fig 1: Identifying Connector For Main Wire Harness In Luggage Compartment At Right

  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Connector For Rear Seat-Belt Pretensioner
  2. Four Connectors For Control Unit Of Rear-End Electronics
  3. Connector For Head Airbag
  4. Connector For Levelling System Control Unit
  5. Connector For Loudspeaker In Trim Panel For Luggage Compartment
  6. Connector For Parking Brake Control Unit
  7. Connector For Tail Light
  8. Connector For Loudspeaker Amplifier
  9. Connector For Filler Flap Actuator
  10. Connector For Ground Strap Of Tank Filler Neck
  11. Connector For Ground Point
  12. Connector For Trailer Hitch Control Unit
  13. Three Connectors For Connection Point On Wheel Housing
  14. Two Connectors For Connection Point On Tailgate
  15. Connector For Rear Interior Lighting

1. Release and unplug electric plug connection -1-  for seat-belt pretensioner. → REMOVING REAR THREE-POINT BELT - section on "Removing"
2. Remove control unit for rear-end electronics. → REMOVING CONTROL UNIT FOR REAR-END ELECTRONICS - section on "Removing"
3. Release and unplug electric plug connection -3-  for head airbag unit. → REMOVING HEAD AIRBAG UNIT - section on "Removing"
4. Release and unplug electric plug connection -4-  for levelling system control unit. → REMOVING LEVELLING SYSTEM CONTROL UNIT - section on "Removing"
5. Release and unplug electric plug connection -6-  for parking brake control unit. → REMOVING CONTROL UNIT FOR ELECTRIC PARKING BRAKE - section on "Removing"
6. Release and unplug electric plug connection -7-  for tail light. → REMOVING TAIL LIGHT - section on "Removing"
7. Release and unplug electric plug connection -8-  for loudspeaker amplifier. → 914419 REMOVING AND INSTALLING LOUDSPEAKER AMPLIFIER - section on "Removing"
8. Release and unplug electric plug connection -9-  for filler flap actuator. → REMOVING ACTUATOR FOR FILLER FLAP - section on "Removing"
9. Release and unplug electric plug connection -10-  for ground strap of tank filler neck. → REMOVING FUEL TANK - section on "Removing"
10. Unscrew fastening nut from ground point -11-  behind the wheel housing.
11. Release and unplug electric plug connection -12-  for trailer hitch control unit. → REMOVING TRAILER HITCH CONTROL UNIT - section on "Removing"
12. Release and unplug three electric plug connections -13-  for connection point on wheel housing.
13. Release and unplug two electric plug connections -14-  for connection point on tailgate. → 972719 REMOVING AND INSTALLING WIRE HARNESS FOR TAILGATE  - section on "Removing"
14. Release and unplug electric plug connection -15-  for rear interior light.

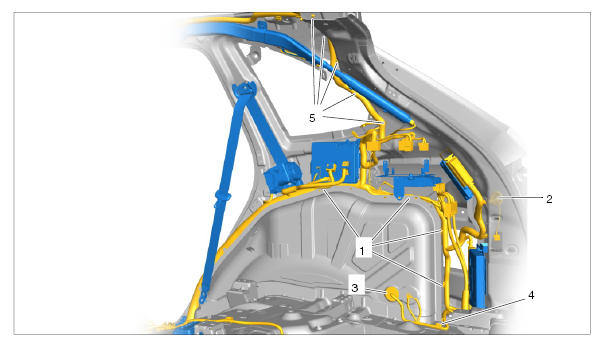

    Fig 2: Identifying Fastening Points In Luggage Compartment At Right

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. Fastenings On Wheel Housing
    2. Rubber Sleeve For Line To Tail Light
    3. Rubber Sleeve For Ground Strap Of Tank Filler Neck
    4. Fastening For Ground Strap Of Tank Filler Neck
    5. Fastenings For Line To Rear Lid Wire Harness
15. Loosen fastenings -1-  on wheel housing.
16. Press rubber sleeve -2-  for line to tail light inwards.
17. Press rubber sleeve -3-  for ground strap of tank filler neck inwards.
18. Loosen fastening -4-  for ground strap of tank filler neck.
19. Loosen fastenings -5-  for line to rear lid wire harness.
