Removing Control Unit For Rear-End Electronics

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

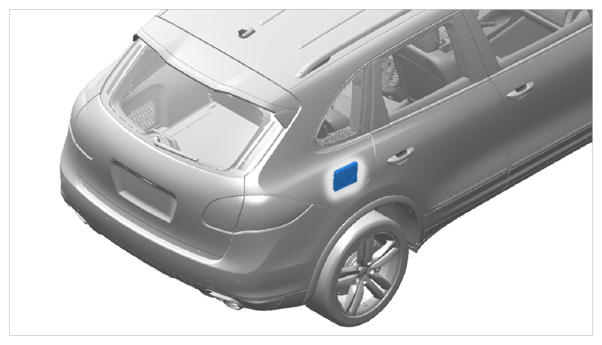

Fig 1: Identifying Control Unit For Rear-End Electronics Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

NOTE: Voltage peaks

Risk of damage to electrical load or to the control unit

Release four electric plug connections -1- (-a- ) and disconnect them.
Lift control unit for rear-end electronics up out of the bracket and remove it -arrow A- .

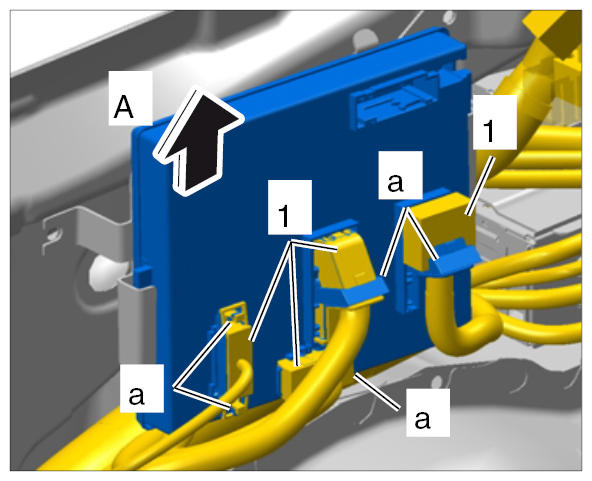

Fig 2: Removing Control Unit For Rear-End Electronics

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
