Installing Rear Lid

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Installation is performed in reverse order to removal.
  2. Tighten fastening screws for rear lid to Tightening torque 10 Nm (7.5 ftlb.)  .

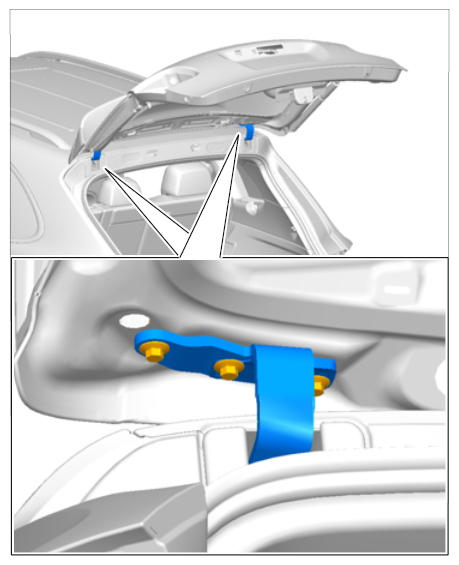

    Fig 1: Identifying Rear Lid
    G09939343Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Only for vehicles with Power Lift Tailgate

  3. Secure actuating cylinder for rear lid at the top of the rear lid. → Installing Actuating Cylinder For Rear Lid

    Only for vehicles without Power Lift Tailgate

  4. Secure gas-filled shock absorber for rear lid at the top of the rear lid. → 559319 REMOVING AND INSTALLING REAR PNEUMATIC SPRING
