Installing Front Side Member

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Fit and secure front side member.

    Information

    When welding slots, make sure that both edges of the slot are welded through.

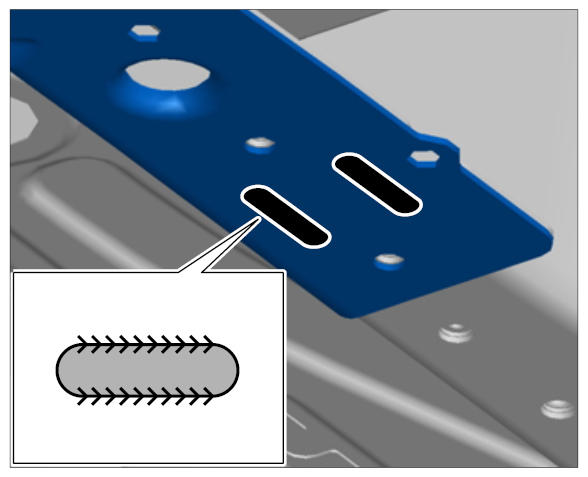

    Fig 1: Identifying Front Side Member Slot Welding
    G09938294Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Weld in front side member.

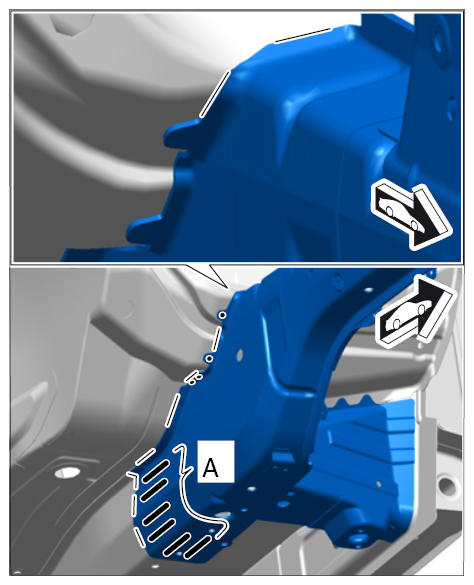

    Fig 2: Identifying Weld In Front Side Member
    G09938295Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. 2.1. Slot-weld front side member in the area -A-  using inert gas.
    2. 2.2. Plug-weld front side member using inert gas.
    3. 2.3. Apply a full well to front side member using inert gas.
  3. Weld in front side member.

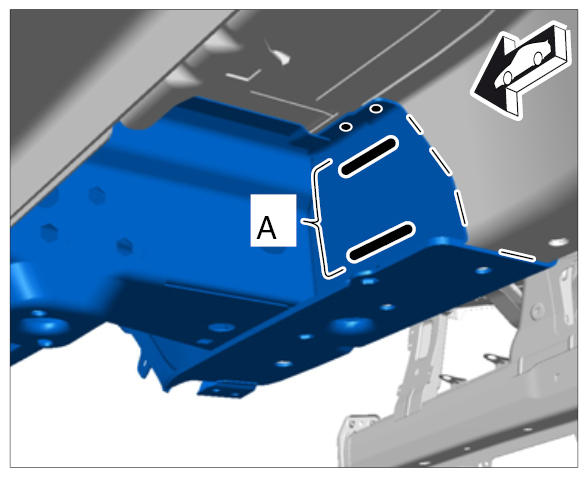

    Fig 3: Identifying Weld In Front Side Member
    G09938296Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. 3.1. Slot-weld front side member in the area -A-  using inert gas.
    2. 3.2. Plug-weld front side member using inert gas.
    3. 3.3. Apply a full well to front side member using inert gas.
  4. Weld in front side member.

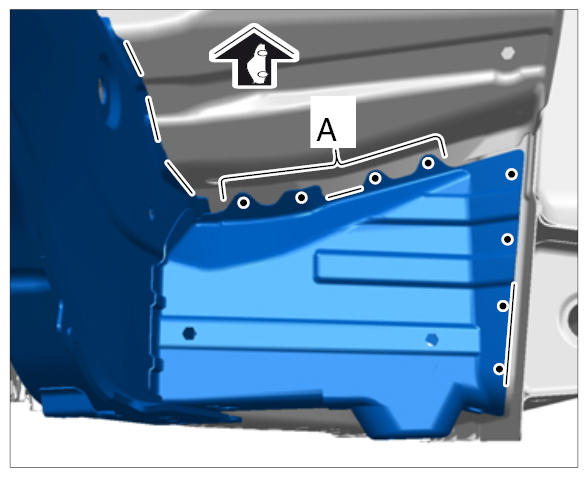

    Fig 4: Identifying Weld In Front Side Member
    G09938297Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. 4.1. Resistance spot-weld front side member in the area -A-  .
    2. 4.2. Plug-weld front side member using inert gas.
    3. 4.3. Apply a full well to front side member using inert gas.
  5. Weld in front side member.

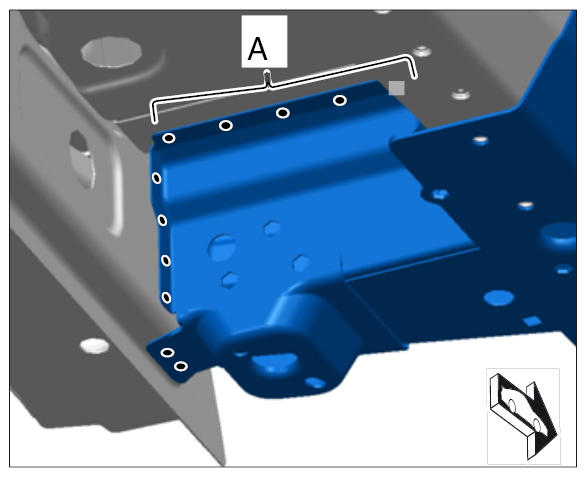

    Fig 5: Installing Front Side Member
    G09938298Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. 5.1. Resistance spot-weld front side member in the area -A-  .
    2. 5.2. Plug-weld front side member using inert gas.
  6. Weld in front side member.

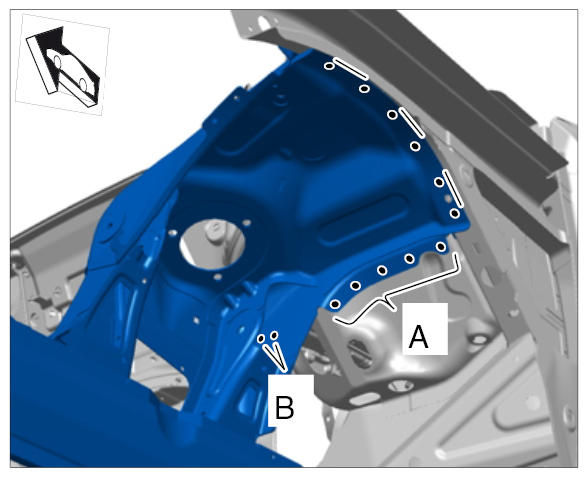

    Fig 6: Identifying Resistance Spot-Weld Front Side Member
    G09938299Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. 6.1. Resistance spot-weld front side member in the area -A und B-  .
    2. 6.2. Plug-weld front side member using inert gas.
    3. 6.3. Apply a full well to front side member using inert gas.
  7. Weld in front side member.

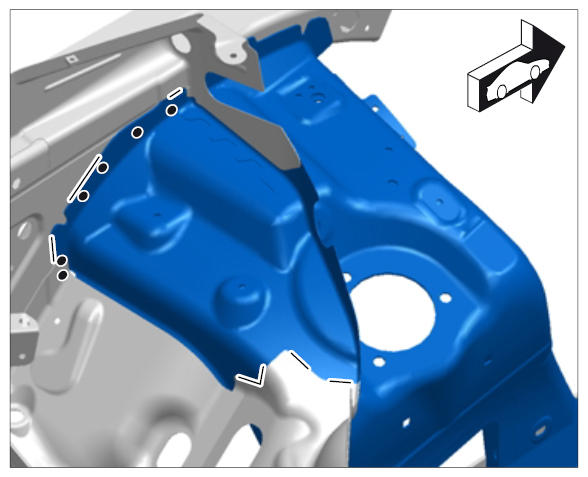

    Fig 7: Identifying Weld In Front Side Member
    G09938300Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. 7.1. Plug-weld front side member using inert gas.
    2. 7.2. Spot-weld front side member using inert gas.
  8. Weld in front side member.

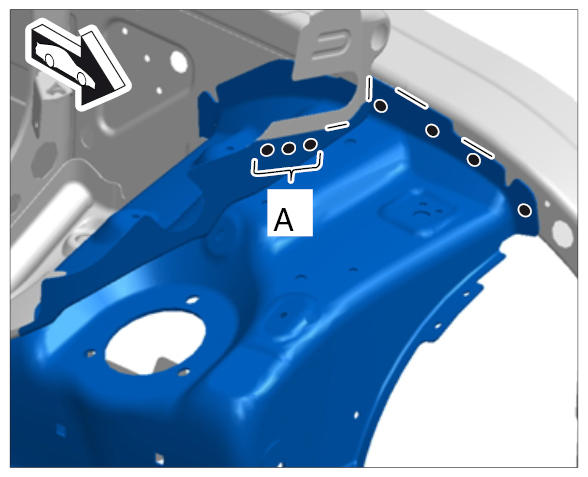

    Fig 8: Identifying Front Side Member Spot-Weld
    G09938301Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. 8.1. Resistance spot-weld front side member in the area -A-  .
    2. 8.2. Plug-weld front side member using inert gas.
    3. 8.3. Also spot-weld front side member using inert gas.
  9. Spot-weld front side member using inert gas.

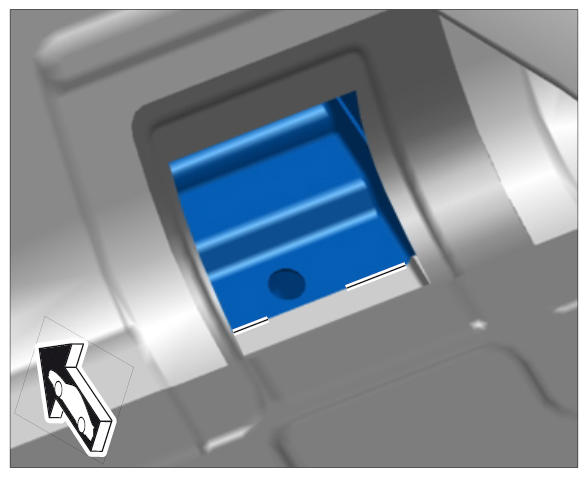

    Fig 9: Identifying Front Side Member Spot-Weld
    G09938302Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  10. Fit cut window and apply a full weld using inert gas.

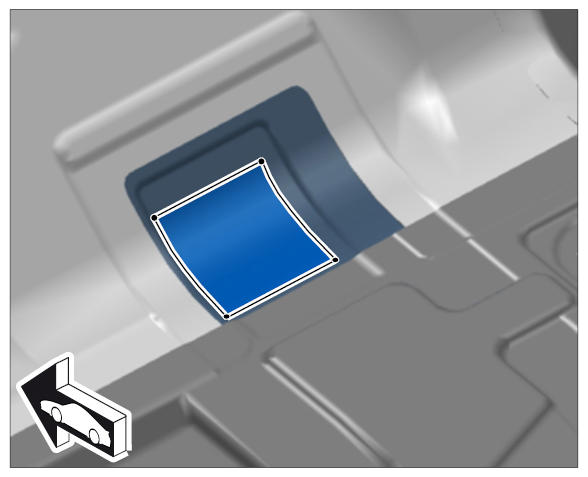

    Fig 10: Installing Front Side Member
    G09938303Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  11. Plug-weld front side member using inert gas.

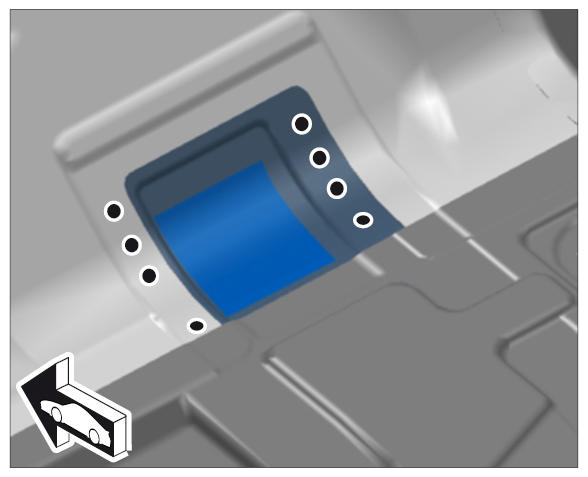

    Fig 11: Identifying Plug-Weld Front Side Member
    G09938304Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  12. Install front wheel housing. → INSTALLING FRONT WHEEL HOUSING  - section on "Installing"
  13. Install wing strut. → INSTALLING WING STRUT  - section on "Installing"
  14. Install side member for wheel housing upper section. → INSTALLING SIDE MEMBER FOR WHEEL HOUSING UPPER SECTION  - section on "Installing"
