Installing Wing Strut

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Fit and secure the wing strut.
Install wing strut on lower longitudinal member.
1. 2.1. Plug-weld the wing strut using inert gas -A- .

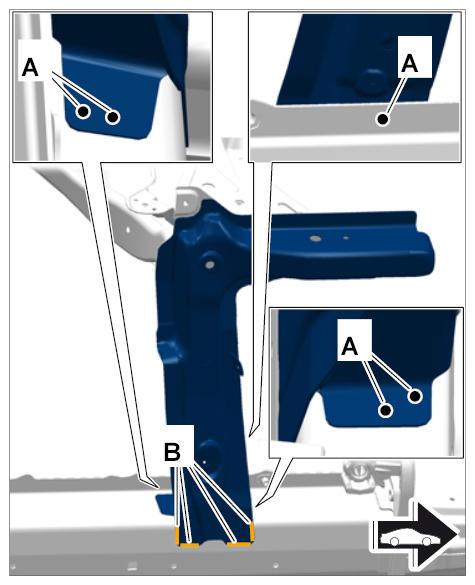

  Fig 1: Identifying Plug-Weld On Wing Strut
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 2.2. Spot-weld the wing strut using inert gas -B- .
Install wing strut on longitudinal member for wheel housing upper section.
1. 3.1. Resistance spot-weld the wing strut -A- .

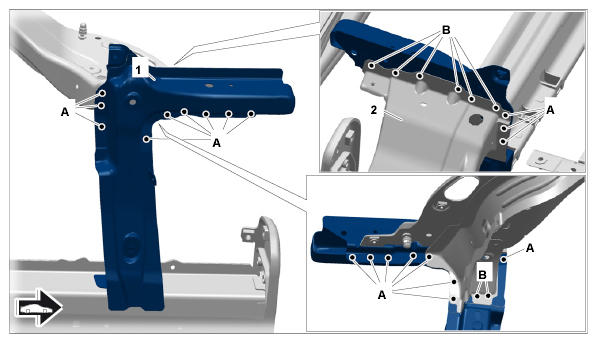

  Fig 2: Identifying Resistance Spot-Weld Wing Strut
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 3.2. Plug-weld longitudinal member for wheel housing upper section to the wing strut -B- using inert gas.
Install headlight mounting bracket.
1. 4.1. Insert bracket -2- and screw in and tighten screws -1- .

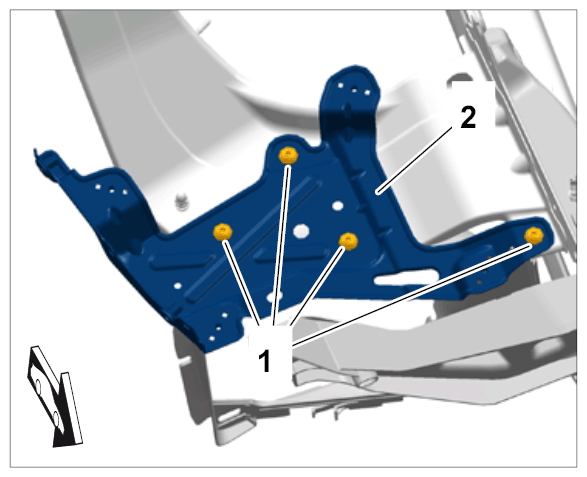

  Fig 3: Identifying Headlight Mounting Bracket Screws
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install lock carrier. → INSTALLING LOCK CARRIER - section on "Installing"
