Removing Front Side Member

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Remove wing strut. → REMOVING WING STRUT - section on "Removing"
Information

If it can be ensured there has been no deformation of the side member for the wheel housing upper section, the following repair can be carried out without removing it.
Remove side member for upper part of wheel housing. → REMOVING SIDE MEMBER FOR WHEEL HOUSING UPPER SECTION - section on "Removing"
Information
- All straightening work on the body in the connection area of the sheetmetal parts to be replaced must be completed before the damaged parts are removed.
Mark and make cuts.

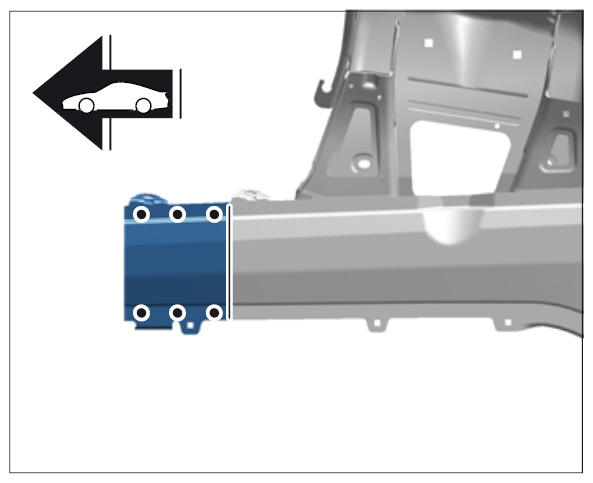

Fig 1: Inner And Outer Side Member Component Location
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 3.1. Mark position of cut on inner side member at dimension -A- . → Cut dimension, old part: 263 mm
2. 3.2. Mark position of cut on outer side member at dimension -B- .
  → Cut dimension, old part: 400 mm
3. 3.3. Cut completely through the inner and outer side members in the area marked.

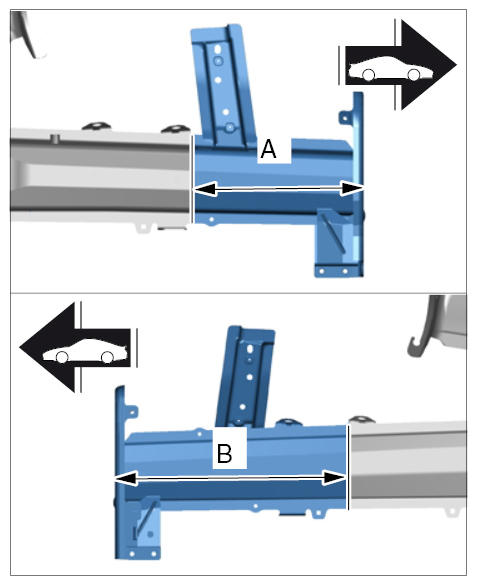

  Fig 2: Removing Front Side Member
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove front side member.
Information

Only make cuts in the top plate. Make sure not to damage the plate underneath when doing this.
Remove remaining piece of outer side member on the body.

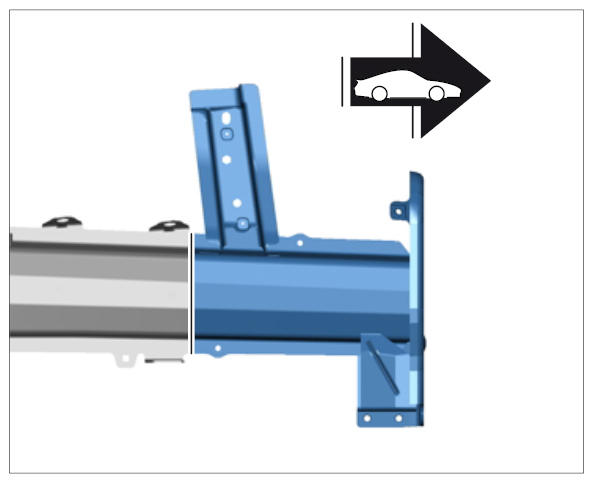

Fig 3: Identifying Outer Front Side Member
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 5.1. Cut through the outer side member in the area marked.
2. 5.2. Drill out spotwelds using spotweld drill .
3. 5.3. Remove remaining piece of outer side member.
