Removing Wing Strut

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Remove lock carrier. → REMOVING LOCK CARRIER - section on "Removing"
Remove headlight mounting bracket.
1. 2.1. Unscrew screws -1- and remove bracket -2- .

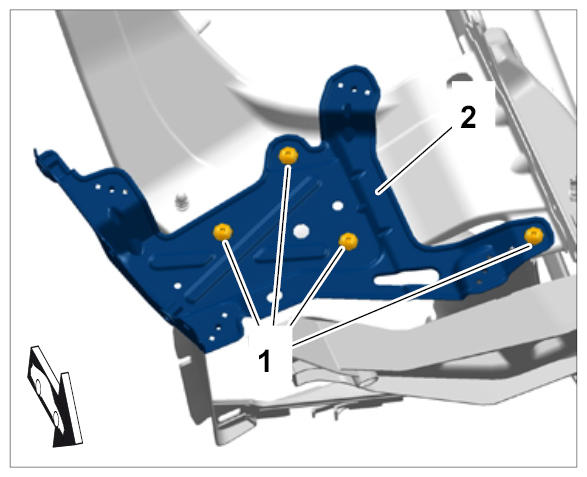

  Fig 1: Headlight Mounting Bracket Component Location
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Loosen welded joints for wing strut on lower longitudinal member.
Information

Drill out spotweld A through three plate thicknesses.
1. 3.1. Drill out spotweld -A- .

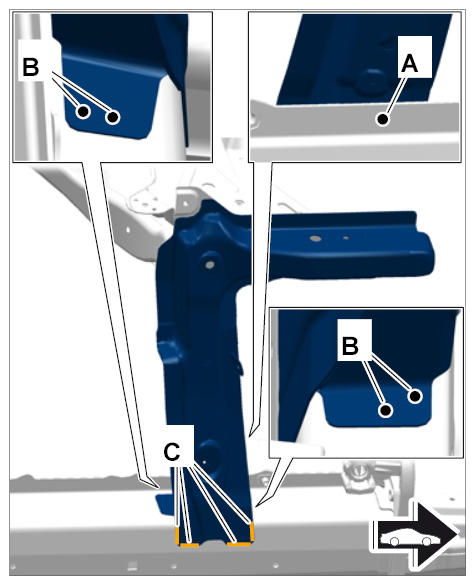

  Fig 2: Wing Strut Component Location
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

  Information

  Drill out spotwelds B on one side only. Do not damage the plate underneath!
2. 3.2. Drill out spotwelds -B- .
3. 3.3. Grind down MIG seams -C- .
Loosen welded joints for wing strut on longitudinal member for wheel housing upper section.
1. 4.1. Drill out spotwelds -A- using Spotweld Drill .

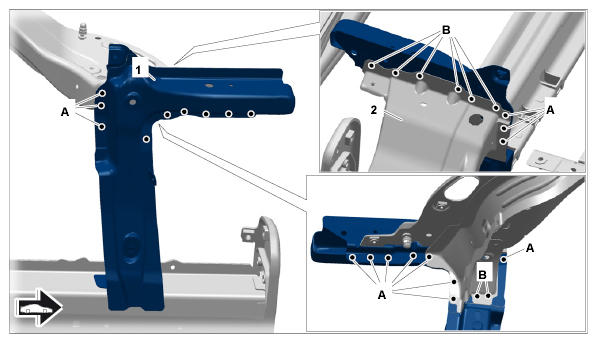

  Fig 3: Identifying Drill Out Spotweld On Wing Strut
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

  Information

  Drill out spotwelds B on one side only. Do not damage the plate underneath!
2. 4.2. Drill out spotwelds -B- .
Remove wing strut.
