Removing Wing Mounting Point

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove connection panel for wing. → 505355 REPLACING WING CONNECTION PANEL  - section on "Removing"

    Information

    If it can be ensured there has been no deformation of the side member for the wheel housing upper section and wing strut, the following repair can be carried out without removing it.

  2. Remove side member for wheel housing upper section. → REMOVING SIDE MEMBER FOR WHEEL HOUSING UPPER SECTION - section on "Removing"
  3. Remove strut for wing. → REMOVING WING STRUT  - section on "Removing"
  4. Drill out spotwelds using Spotweld Drill  .

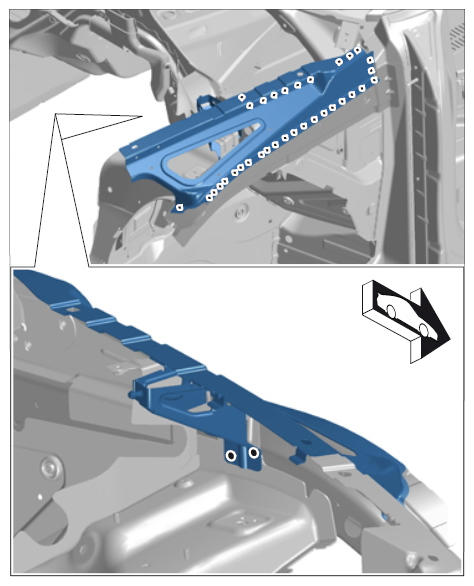

    Fig 1: Front Wheel Housing Component Location
    G09938256Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  5. Remove the wing mounting point.
