Installing Outer Upper Side Member

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Fit and secure the outer upper side member.
  2. Weld in the outer upper side member.

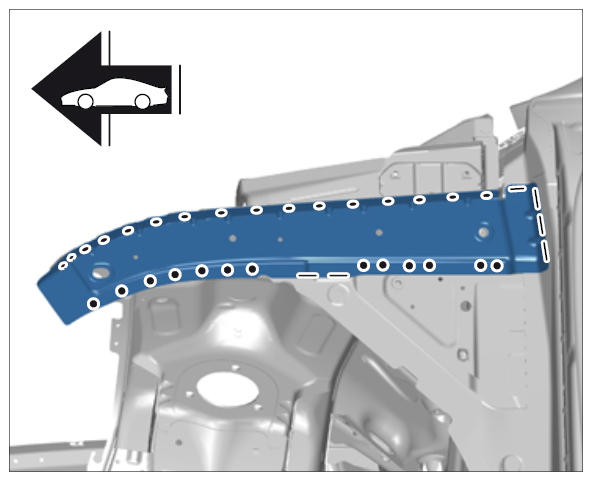

    Fig 1: Identifying Weld In Outer Upper Side Member
    G09938264Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. 2.1. Resistance spot-weld the outer upper side member.
    2. 2.2. Apply a welded seam to the outer upper side member using inert gas.
  3. Install strut for wing. → INSTALLING WING STRUT  - section on "Installing"
  4. Install side member for wheel housing upper section. → INSTALLING SIDE MEMBER FOR WHEEL HOUSING UPPER SECTION  - section on "Installing"
  5. Install the connection panel for the wing. → 505355 REPLACING WING CONNECTION PANEL  - section on "Installing"
