Installing Longitudinal Member For Wheel Housing Upper Section

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Fit and secure longitudinal member for wheel housing upper section.
  2. Install longitudinal member for wheel housing upper section -1-  at the wing strut -2-  .
    1. 2.1. Resistance spot-weld longitudinal member for wheel housing upper section -A-  .

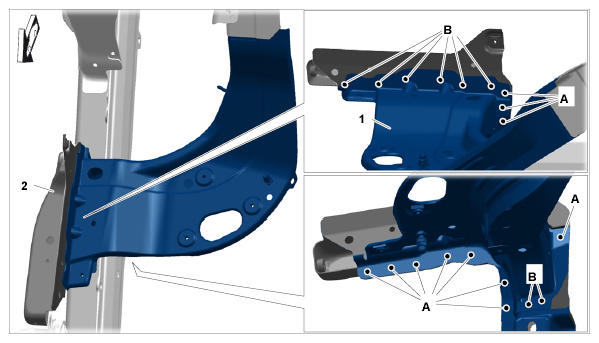

      Fig 1: Identifying Resistance Spot-Weld Longitudinal Member For Wheel Housing Upper Section
      G09938243Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    2. 2.2. Plug-weld longitudinal member for wheel housing upper section to the wing strut -B-  using inert gas.
  3. Install longitudinal member for wheel housing upper section -1-  at the wheel housing.
    1. 3.1. Resistance spot-weld longitudinal member for wheel housing upper section -A-  .

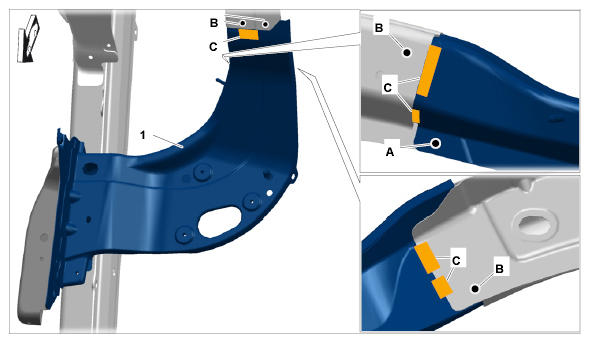

      Fig 2: Identifying Resistance Spot-Weld Longitudinal Member For Wheel Housing Upper Section
      G09938244Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    2. 3.2. Spot-weld longitudinal member for wheel housing upper section -C-  using inert gas.
    3. 3.3. Plug-weld wheel housing to longitudinal member for wheel housing upper section -B-  using inert gas.
  4. Install wing. → INSTALLING WING  - section on "Installing"
  5. Install headlight mounting bracket.
    1. 5.1. Insert bracket -2-  and screw in and tighten screws -1-  .

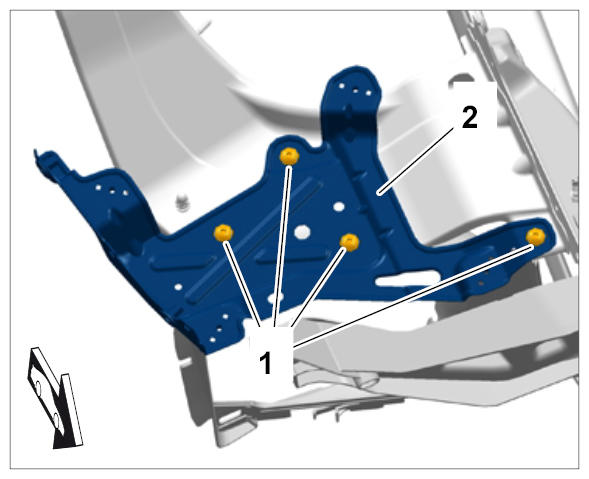

      Fig 3: Identifying Headlight Mounting Bracket With Screws
      G09938245Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  6. Install lock carrier. → INSTALLING LOCK CARRIER  - section on "Installing"
