Installing Front Connecting Link

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

All screws and bolts on the axle must be tightened in vehicle position. Vehicle position means: vehicle resting on its wheels, or the wheel suspension is lifted with a universal jack . -Dimension X from lower edge of wing to center of axle corresponds to vehicle position. For the current height values, please refer to the adjustment values for suspension alignment → 4495TW ADJUSTMENT VALUES FOR SUSPENSION ALIGNMENT .

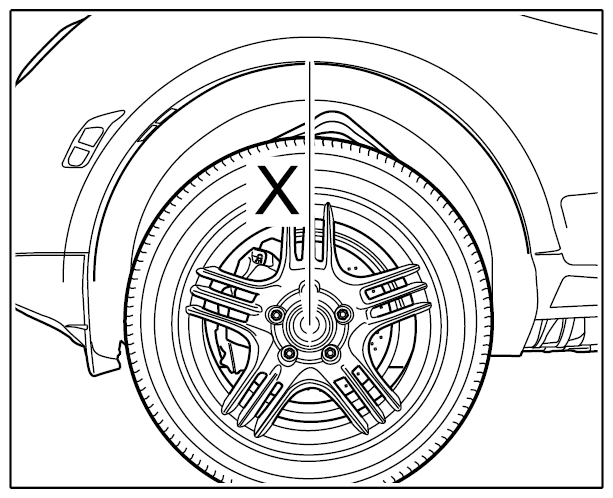

Fig 1: Adjusting Dimension X Lower Edge Of Wing To Centre Of Axle
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Visually inspect all parts .
Replace self-locking nuts .
Replace all expansion screws (screws fitted using torque angle tightening procedure) .
Use correct tightening torques and torque angle . → 4X00IN TIGHTENING TORQUES FOR FRONT AXLE

Raise the lower axle support -3- as far as required using a suitable jack -4- so that the upper fastening screw -1- on the connecting link can be fitted easily.

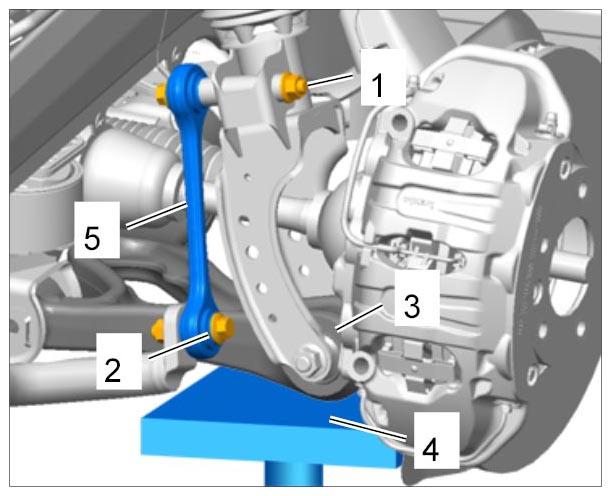

Fig 2: Adjusting Front Connecting Link
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fit the bottom fastening screw -2- for the connecting link -5- on the anti-roll bar.
Fit the fastening screws for the connecting link. → 4X00IN TIGHTENING TORQUES FOR FRONT AXLE
19-inch wheels only:

Fit the air guide. → Installing Front Anti-Roll Bar (PDCC)
