Installing Front Anti-Roll Bar (PDCC)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Caustic fluids

Danger of chemical burns

→ Avoid contact with caustic fluid.

→ Wear personal protective gear.

→ Ensure that there is good ventilation.

→ If you do come into contact, wash off immediately with plenty of warm water and contact a doctor if necessary.

Information

All screws and threaded joints on the axle must be tightened in vehicle position. Vehicle position means: vehicle standing on its wheels or the wheel suspension is raised with a universal vehicle lift. Measurement -1- from the lower edge of the wing to the middle of the vehicle axle corresponds to vehicle position. The current height values can be found in → 4495TW ADJUSTMENT VALUES FOR SUSPENSION ALIGNMENT . Always observe the following points!

Fig 1: Checking Dimension 1 - Centre Of Wheel To Lower Edge Of Wing (Rear Axle)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
On vehicles with air springs, the respective air spring must be bled using the Porsche System Tester . → 4301IN BLEEDING AND FILLING THE LEVELLING SYSTEM
Screws and nuts are Geomet-coated and must not be greased .

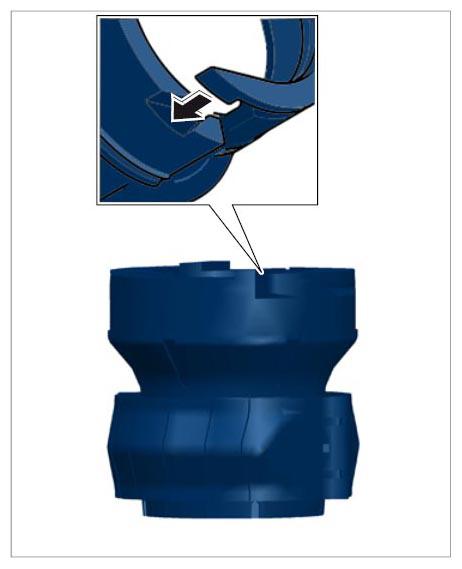

Fit the anti-roll-bar mount halves at the correct position on the anti-roll bar. At the correct position means: The larger outer diameter is on the wheel side.

Fig 2: Fitting Anti-Roll Bar Halves
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

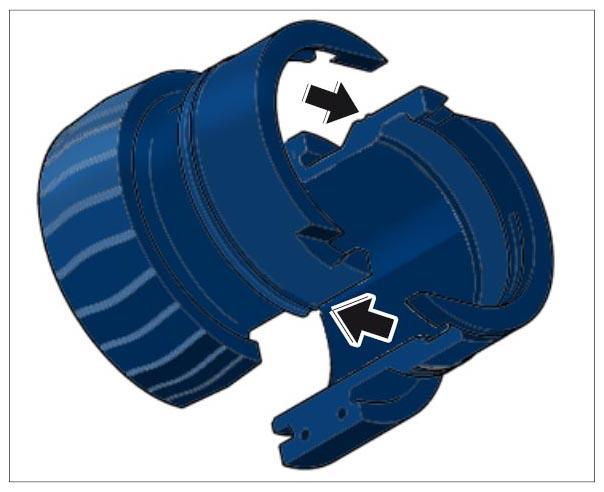

Engage the anti-roll-bar mount halves at the mounting points provided for this purpose -arrow- .

Fig 3: Locating Mounting Points
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

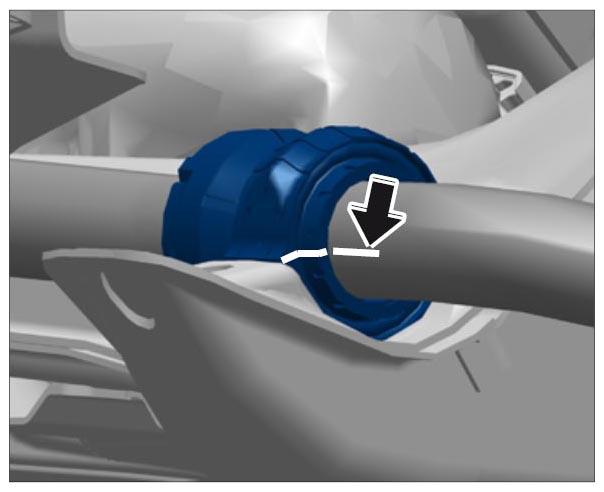

Check the installation position -arrow- of the anti-roll-bar mount halves with respect to the anti-roll bar. Copy the dimensions of the marking -arrow- on the old roll-over bar when installing a new roll-over bar.

Fig 4: Locating Marking On Anti-Roll Bar Halves
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fit the two hose clamps. Tightening torque 12 Nm (9 ftlb.)
Guide in the anti-roll bar.
Install the two clips.
Fit the four fastening screws evenly and tighten hand-tight.
Fit fastening screws securing anti-roll bar to connecting links and tighten hand-tight.

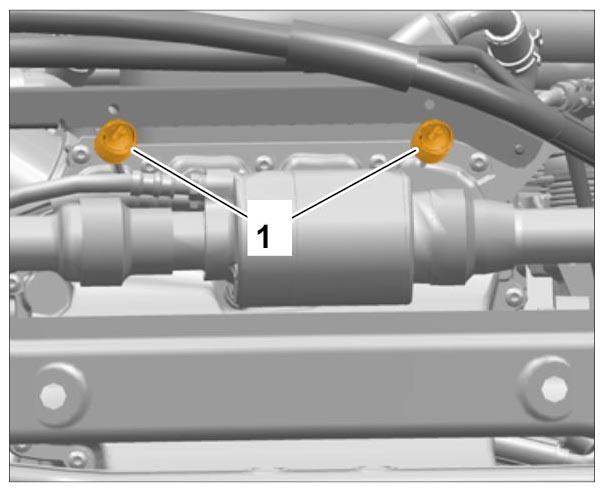

Coat new silent blocks with -1- screw-locking agent Loctite 270 and screw them in.

Fig 5: Identifying Silent Blocks
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

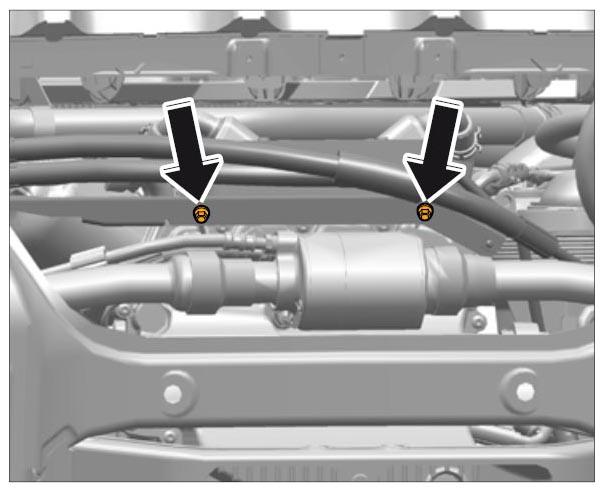

Clip in and tighten the expansion hose at the two fastening points -arrows- .

Fig 6: Locating Expansion Hose Mounting
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

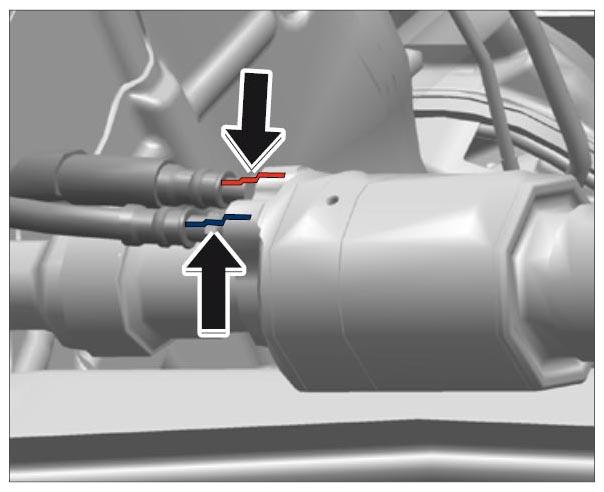

Fit the two steel flexi-pipes. The markings must be aligned precisely during installation -arrows- .

Fig 7: Locating Marking On Steel Flexi-Pipe With Respect To Anti-Roll Bar Housing
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Tighten fastening screws on the anti-roll bar. Tightening torque 60 Nm (44 ftlb.)
Tighten fastening screws on the connecting links. Tightening torque 90 Nm (67 ftlb.) +90°

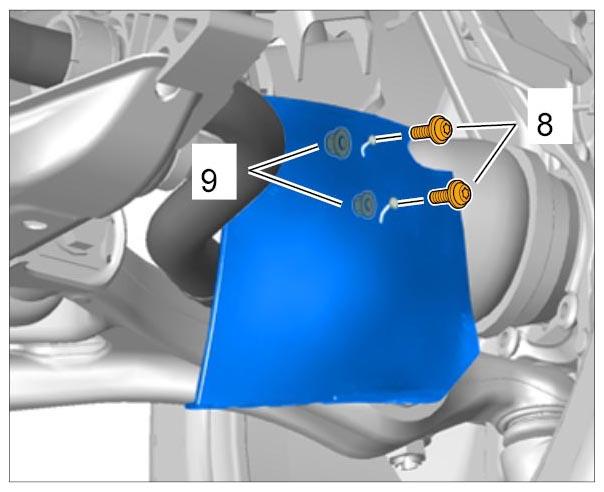

If installed: Tighten the fastening screws on the air guide -8- at the left and right. Use a suitable tool to counter the fastening nuts -9- .

Fig 8: Identifying Air Guide Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

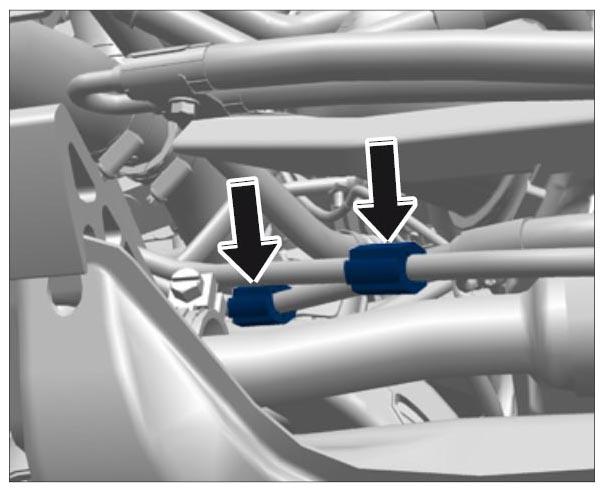

Following assembly, check carefully once again that the steel flexi-pipes are not twisted! The toothed rings -arrows- must be positioned on the steel flexi-pipes in such a way that they provide adequate protection in the event of contact with adjacent components.

Fig 9: Locating Position Of Toothed Rings
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
