Subsequent Work
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
Information

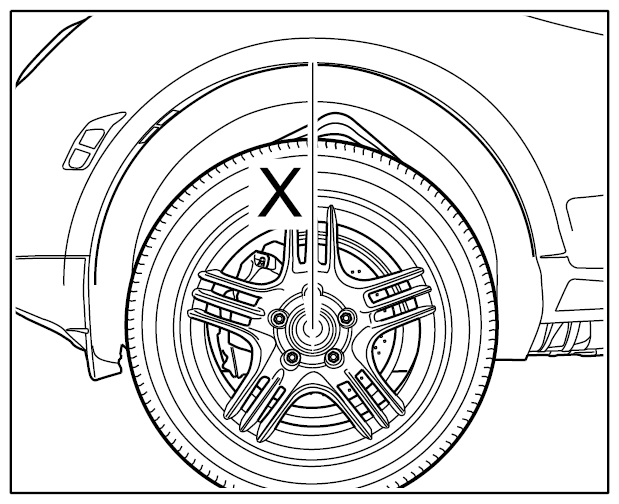

- All screws and bolts on the axle must be tightened in vehicle position. Vehicle position means: vehicle resting on its wheels, or the wheel suspension is lifted with a universal jack . -Dimension X from lower edge of wing to center of axle corresponds to vehicle position. For the current height values, please refer to the adjustment values for suspension alignment → 4495TW ADJUSTMENT VALUES FOR SUSPENSION ALIGNMENT .
- Visually inspect all parts .
- Replace self-locking nuts .
- Replace all expansion screws (screws fitted using torque angle tightening procedure) .
- Use correct tightening torques and torque angle . → 4X00IN TIGHTENING TORQUES FOR FRONT AXLE
- Install lower trailing arm. → Installing Lower Trailing Arm
