Installing Upper Trailing Arm (Steel Springs)

Information

• All screws and bolts on the axle must be tightened in vehicle position. Vehicle position means: vehicle resting on its wheels, or the wheel suspension is lifted with a universal jack  . -Dimension X from lower edge of wing to center of axle corresponds to vehicle position. For the current height values, please refer to the adjustment values for suspension alignment  → 4495TW ADJUSTMENT VALUES FOR SUSPENSION ALIGNMENT .

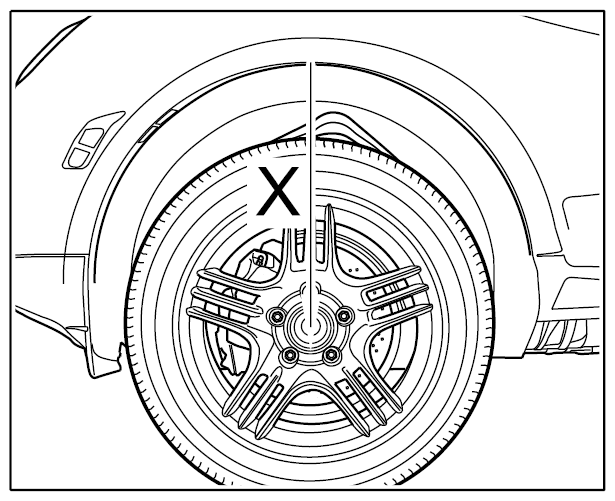

  Fig 1: Adjusting Dimension X Lower Edge Of Wing To Centre Of Axle

  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
• Visually inspect all parts  .
• Replace self-locking nuts  .
• Replace all expansion screws (screws fitted using torque angle tightening procedure)  .
• Use correct tightening torques and torque angle  . → 4X00IN TIGHTENING TORQUES FOR FRONT AXLE

Information

• Always check the installation dimension when installing the upper axle support  .

The dimension is measured as follows:

• Centre of ball joint (upper side)
• To the lower double panel (panel closest to the control arm)

1. Fit axle support -2-  and screw in fastening screws -1-  . → 4X00IN TIGHTENING TORQUES FOR FRONT AXLE

   The ball joint pin must be pointing downwards.

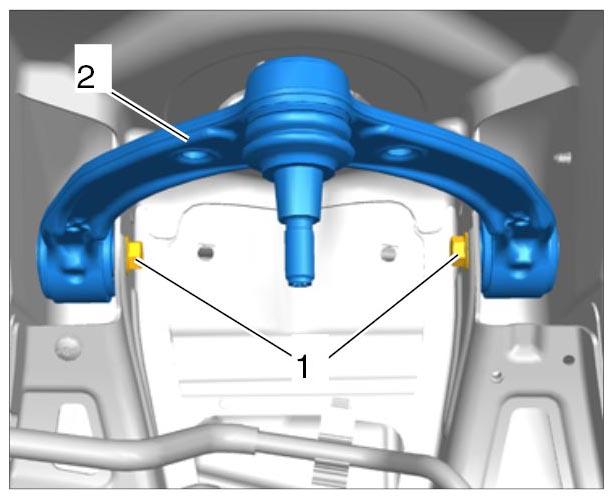

   Fig 2: Identifying Fastening Screws For Upper Axle Support

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Always check that the upper axle support is fitted in installation position.

   Installation position dimension -X-  : → Length: 118.5 mm+/-6 mm

   • Upper side of ball joint -1-
   • Double panel -2-

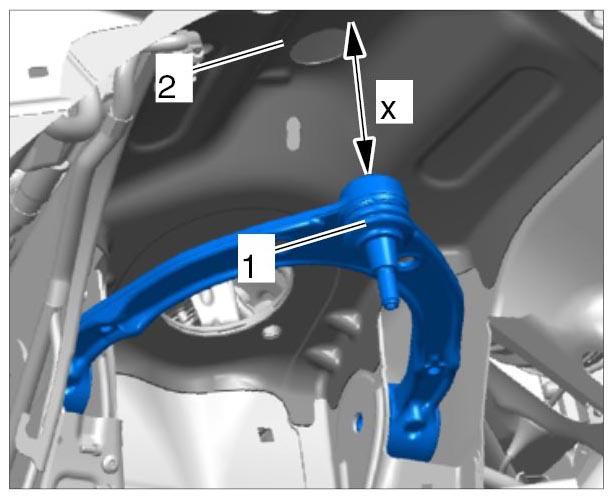

     Fig 3: Checking Installation Position Of Upper Trailing Arm

     Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Fit level sensor holder on upper axle support. → Installing Front Level Sensor
4. Clip in ABS wire harness -1-  at the body -A-  .

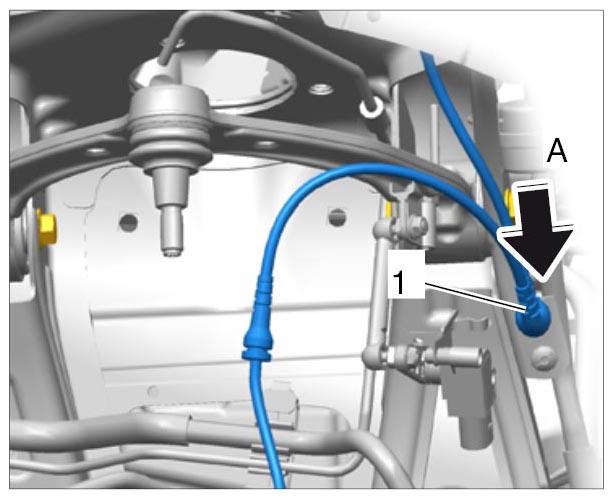

   Fig 4: Identifying ABS Wire Harness On Body

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
