Installing Front Level Sensor

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

In running gear with level adjustment, a level sensor is installed on each spring strut .
The level sensor is screwed to the body and upper control arm .

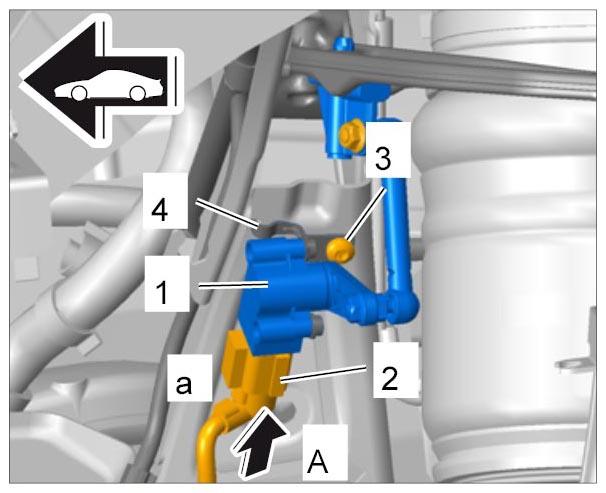

Position level sensor -1- and holder -4- and screw in the fastening screw -3- . → 4X00IN TIGHTENING TORQUES FOR LEVELLING SYSTEM
Make sure that the level sensor linkage is facing outwards. → Installing front sensor for levelling system
Plug in electric plug connection -2- on the level sensor -1- (-A- ) and lock it -a- .

Fig 1: Installing Front Sensor For Leveling System
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

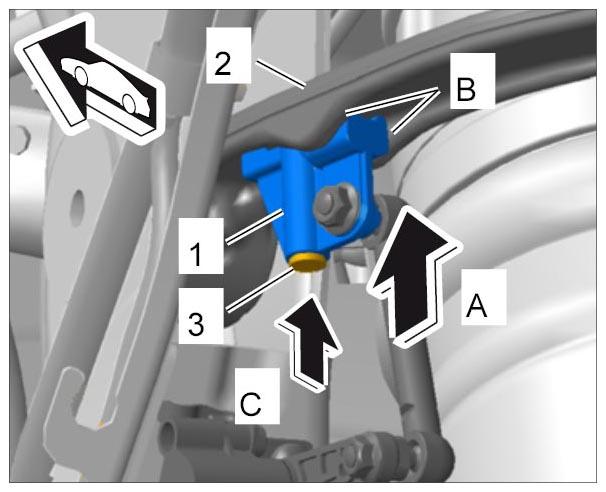

Press linkage holder -1- into the upper trailing arm -2- (-A- ).
Make sure that the holder -1- is seated correctly in the upper trailing arm -2- (-B- ).

Fig 2: Installing Holder
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Press locking pin -3- as far as it will go into the holder -1- (-C- ).
