Installing Reservoir For Windscreen Washer System

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

Check rubber sleeves, clips and water reservoir and replace them if necessary.

Check that water pipes and electric lines are routed properly.
Fit both water lines to the connections for the windscreen-washer pump using clips. → Installing Pump For Windscreen Washer System
Connect water line to the connection for the headlight cleaning system pump using a clip.
Plug in electric plug connections -1, 2, 3- until they engage securely.

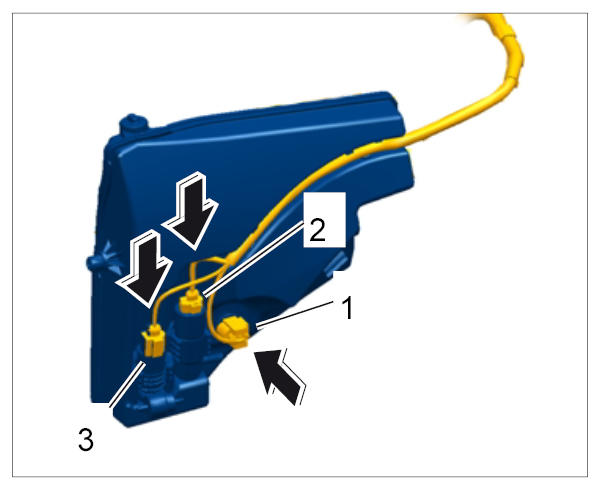

Fig 1: Plugging In Electric Plug Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Clip electric line into the reservoir.
Engage the reservoir in the body.
Secure the reservoir to the body with the two fastening screws -1- .

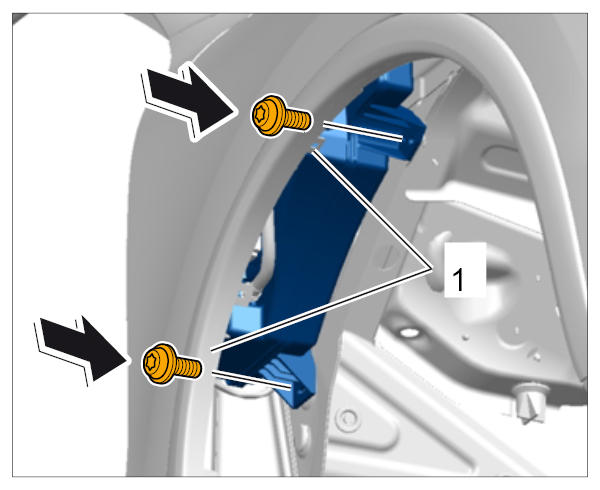

Fig 2: Installing Fastening Screws On Reservoir
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Push the filler tube into the reservoir - use soap suds.
