Installing Pump For Windscreen Washer System

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

Check rubber sleeves and clips and replace them if necessary.

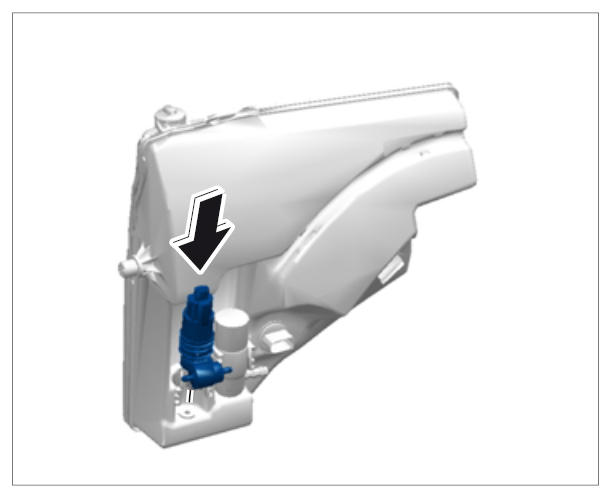

Press the pump for the windscreen washer system into the rubber sleeve by turning it back and forward slightly.

Fig 1: Pressing Pump Into Rubber Sleeve
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

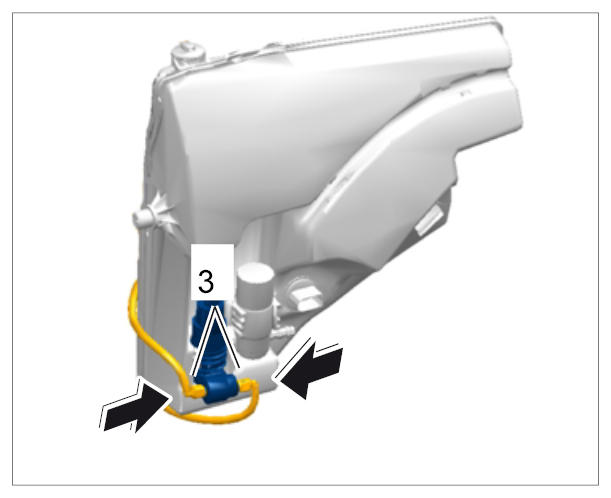

Press the water hoses -3- with the clips over the pump connections.

Fig 2: Pressing Water Hoses Over Connections
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

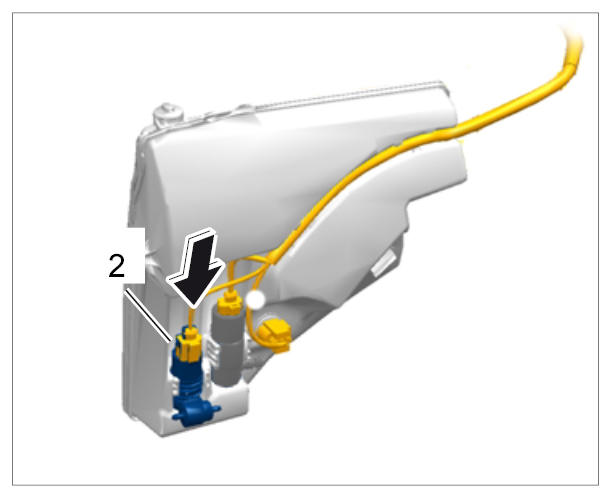

Plug in and lock electric plug connection for pump for windscreen washer system -2- until it engages securely.

Fig 3: Plugging In Electric Plug Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Plug in and lock electric plug connection for the fluid level sensor until it engages securely. → 926719 REMOVING AND INSTALLING FLUID LEVEL SENSOR
Clip electric line into the guide until it engages securely.
